Roof assembly for a vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 2, 2013
Grant Date -
Mar 1, 2012
app pub date -
Aug 31, 2011
filing date -
Sep 1, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance

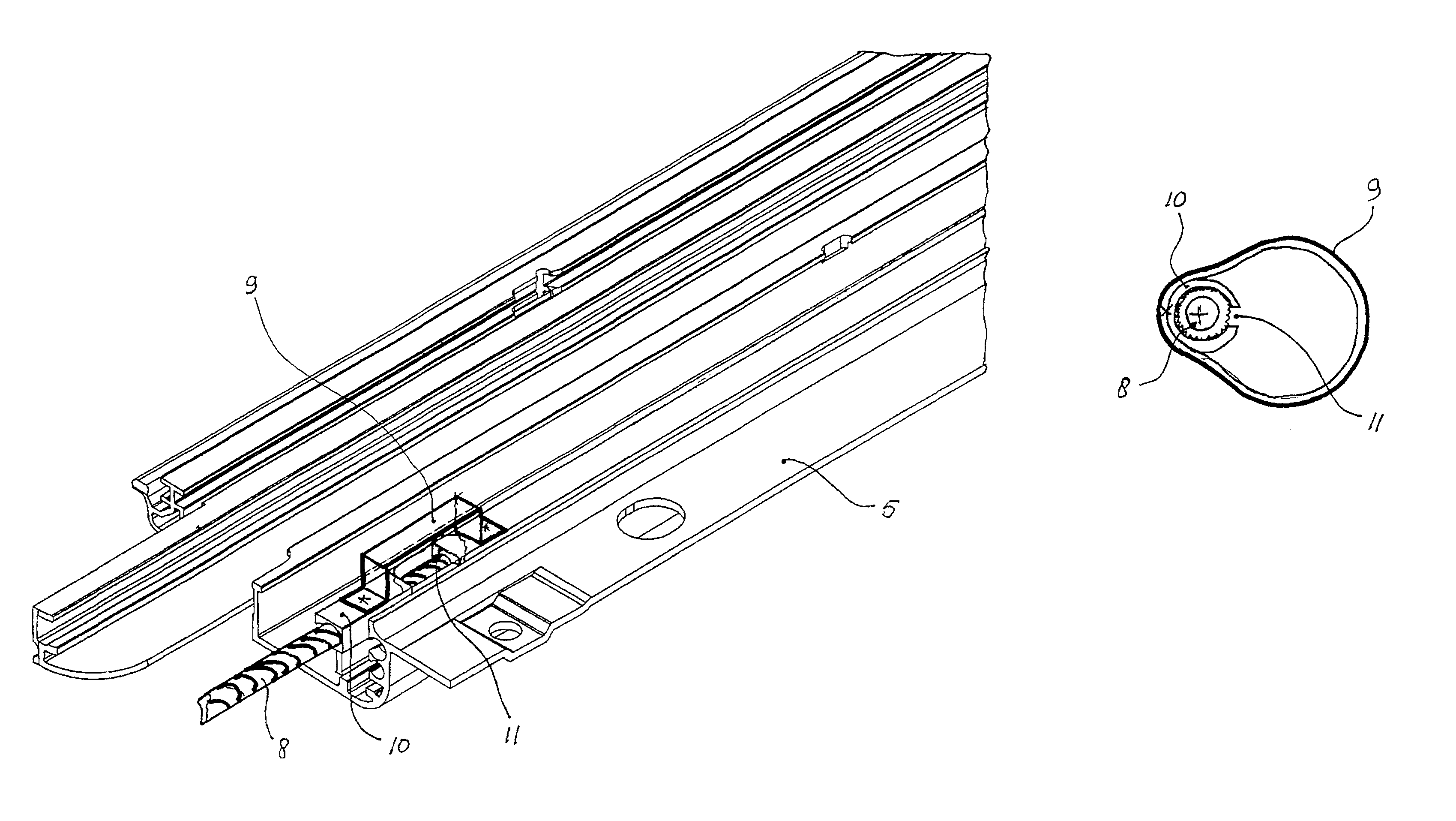

Abstract
A roof assembly for a vehicle having a roof opening in its fixed roof comprising a movable closure element for closing and opening the roof opening. A stationary part comprises guide rails extending transversely of the roof opening in vehicle longitudinal direction. A closure moving mechanism comprises an electric motor fixed to the stationary part, flexible drive cables guided in a guide through a defined path at least partly within said guide rails and being engaged by the electric motor in order to be moved through the guide and along the guide rails. The guide is constructed such that, when an excessive force is exerted on the cable by the closure element in the event of a crash, it allows the respective guide cable to deviate from the defined path dictated by the guide during normal use, to allow limited longitudinal movement of the closure element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B60J Class
- 388 Applications Filed
- 282 Patents Issued To-Date
- 72.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 2, 2025 |
