Clockless computer using a pulse generator that is triggered by an event other than a read or write instruction in place of a clock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 18, 2013
Grant Date -
Jul 21, 2011
app pub date -
Mar 21, 2011
filing date -
Feb 16, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance

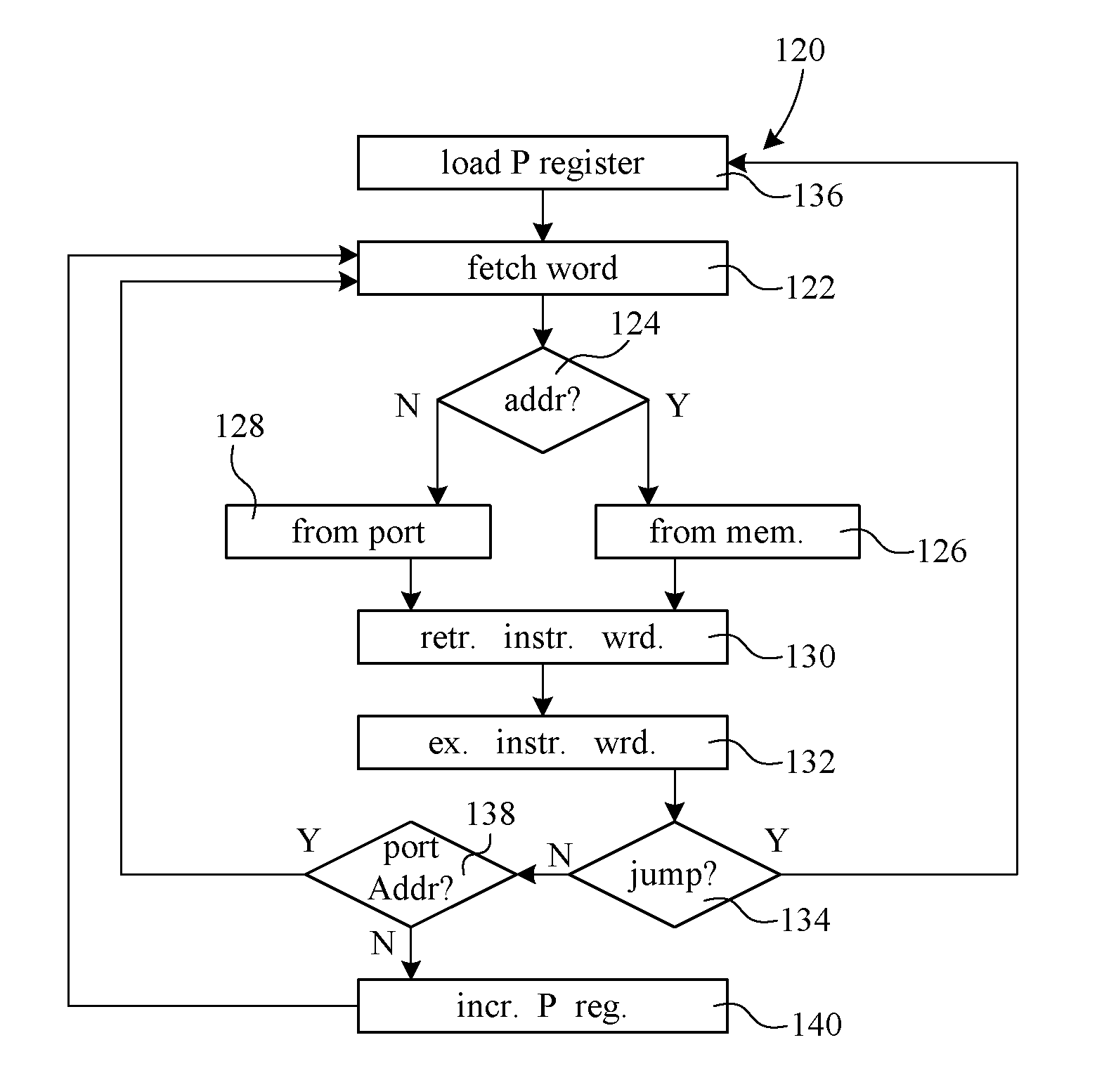

Abstract
A computer array (10) has a plurality of computers (12). The computers (12) communicate with each other asynchronously, and the computers (12) themselves operate in a generally asynchronous manner internally. When one computer (12) attempts to communicate with another it goes to sleep until the other computer (12) is ready to complete the transaction, thereby saving power and reducing heat production. The sleeping computer (12) can be awaiting data or instructions (12). In the case of instructions, the sleeping computer (12) can be waiting to store the instructions or to immediately execute the instructions. In the later case, the instructions are placed in an instruction register (30a) when they are received and executed therefrom, without first placing the instructions first into memory. The instructions can include a micro-loop (100) which is capable of performing a series of operations repeatedly. In one application, the sleeping computer (12) is awakened by an input such that it commences an action that would otherwise have required an interrupt of an otherwise active computer.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 18, 2024 |
