Computed tomography examination and particle therapy treatment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 11, 2013
Issued Date -
N/A
app pub date -
Aug 31, 2009
filing date -
Aug 31, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

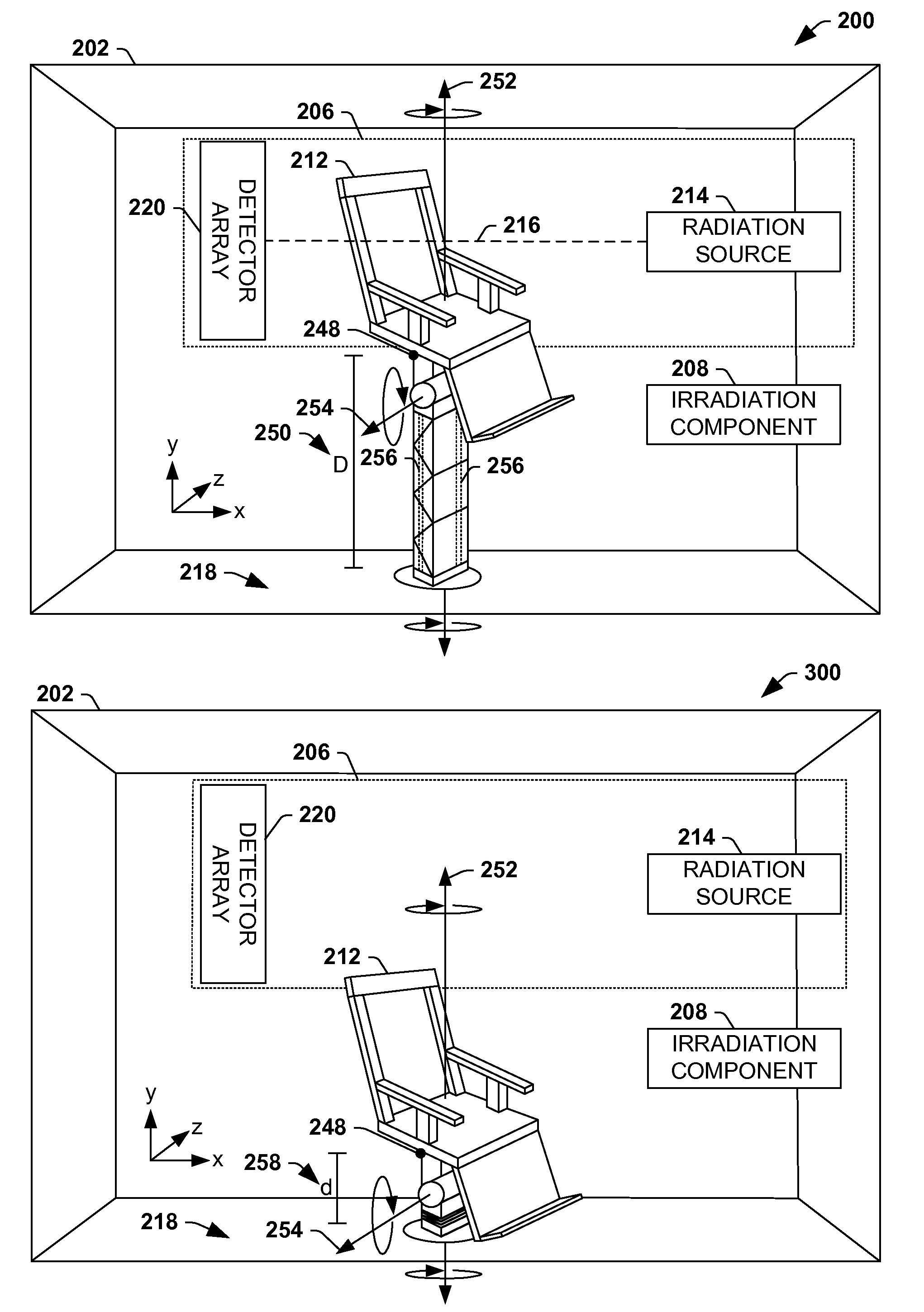

An operation room may comprise both an object scanning apparatus for examining an object using x-ray radiation and an irradiation component for treating an object using particle radiation. A support article upon which the object may reside during (both) the examination and treatment may be configured to rotate about an axis substantially perpendicular to a plane through which x-ray radiation travels, may be configured to tilt with respect to the axis, and/or may be configured to yaw with respect to the axis. In this way, the relative orientation of the support article and the object remain substantially constant during the examination and treatment to facilitate treating a desired area of the object.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- G21K Class
- 353 Applications Filed
- 196 Patents Issued To-Date
- 55.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- G21K Class
- 65.17 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 11, 2024 |
