Method of and apparatus for making pipe from a tubular workpiece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 11, 2013
Grant Date -
Aug 12, 2010
app pub date -
Feb 1, 2010
filing date -
Feb 11, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

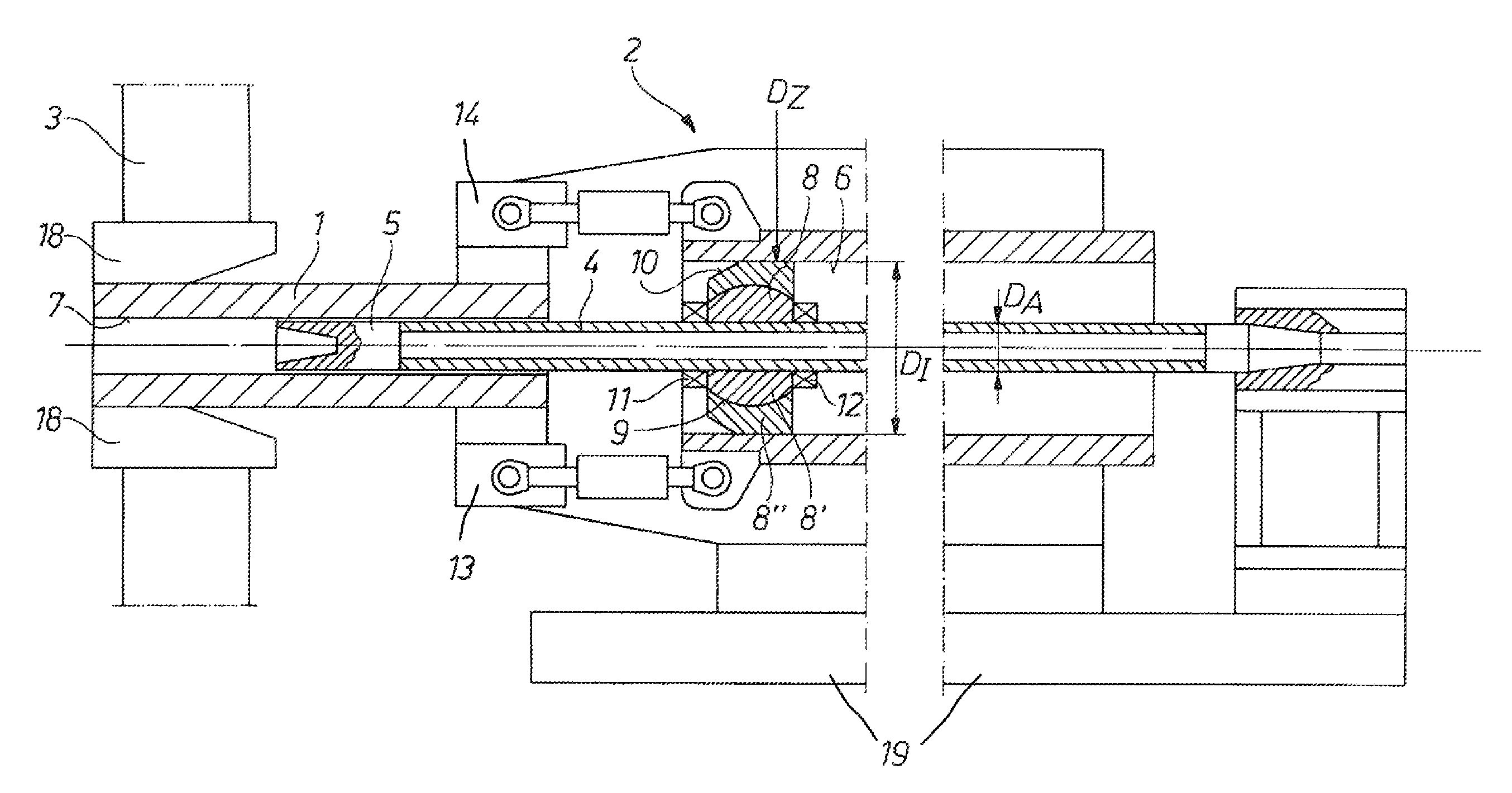

A tubular workpiece with a throughgoing bore is held by a handler having a passage alignable with the bore and of a predetermined inside passage diameter. A rod carrying a mandrel and of an outside rod diameter is provided with a guide having an outside guide diameter slightly smaller than the inside passage diameter but greater than the outside rod diameter The passage is aligned by the handler with the workpiece bore and the mandrel is inserted through the handler passage into the workpiece bore while sliding the guide along the passage and centering the rod in the passage with the guide out of contact with an inner surface of the passage. The workpiece is externally engage around the mandrel with forging tools and thereby forged around the mandrel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B21D Class
- 881 Applications Filed
- 453 Patents Issued To-Date
- 51.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 11, 2024 |
