Wire guiding system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 4, 2013
Grant Date -
Mar 31, 2011
app pub date -
Feb 24, 2009
filing date -
May 27, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

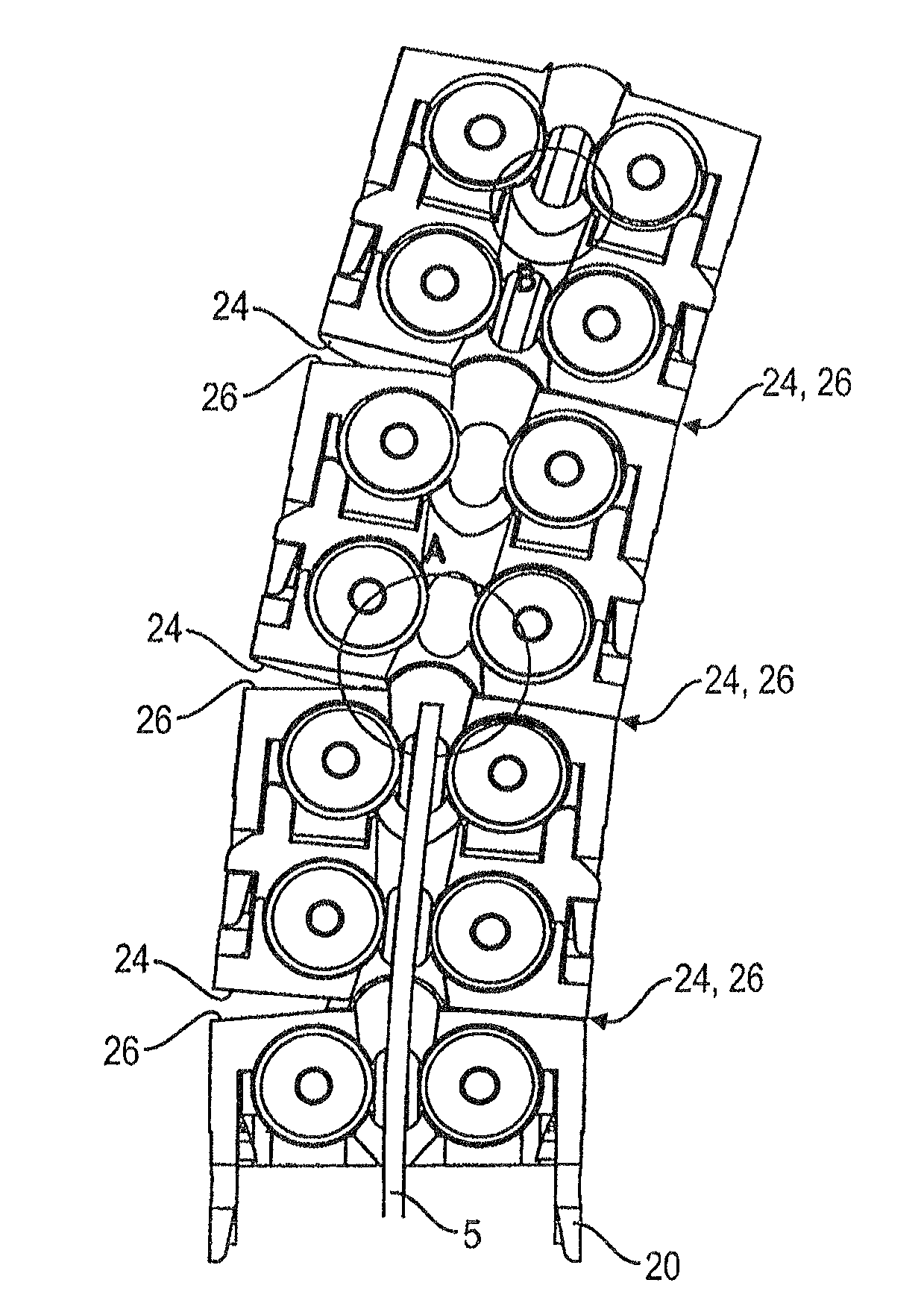

A wire guiding liner, in particular welding wire liner, has a plurality of roll holders which are displaceable with respect to each other, each roll holder holding a plurality of rolls. The angular displaceability of a roll holder with respect to the adjacent roll holder is limited such that when the wire is fed through the liner, it always touches exclusively on the rolls even when the liner is bent to its maximum curve, such that the wire while being inserted always hits the next roll at an angle that will push it towards and maintain it guided at the center of the liner.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B23K Class
- 8.56 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 4, 2024 |
