Systems and methods for dynamic power management for use with a video display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2013
Grant Date -
Jun 21, 2012
app pub date -
Jan 25, 2011
filing date -
Dec 17, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

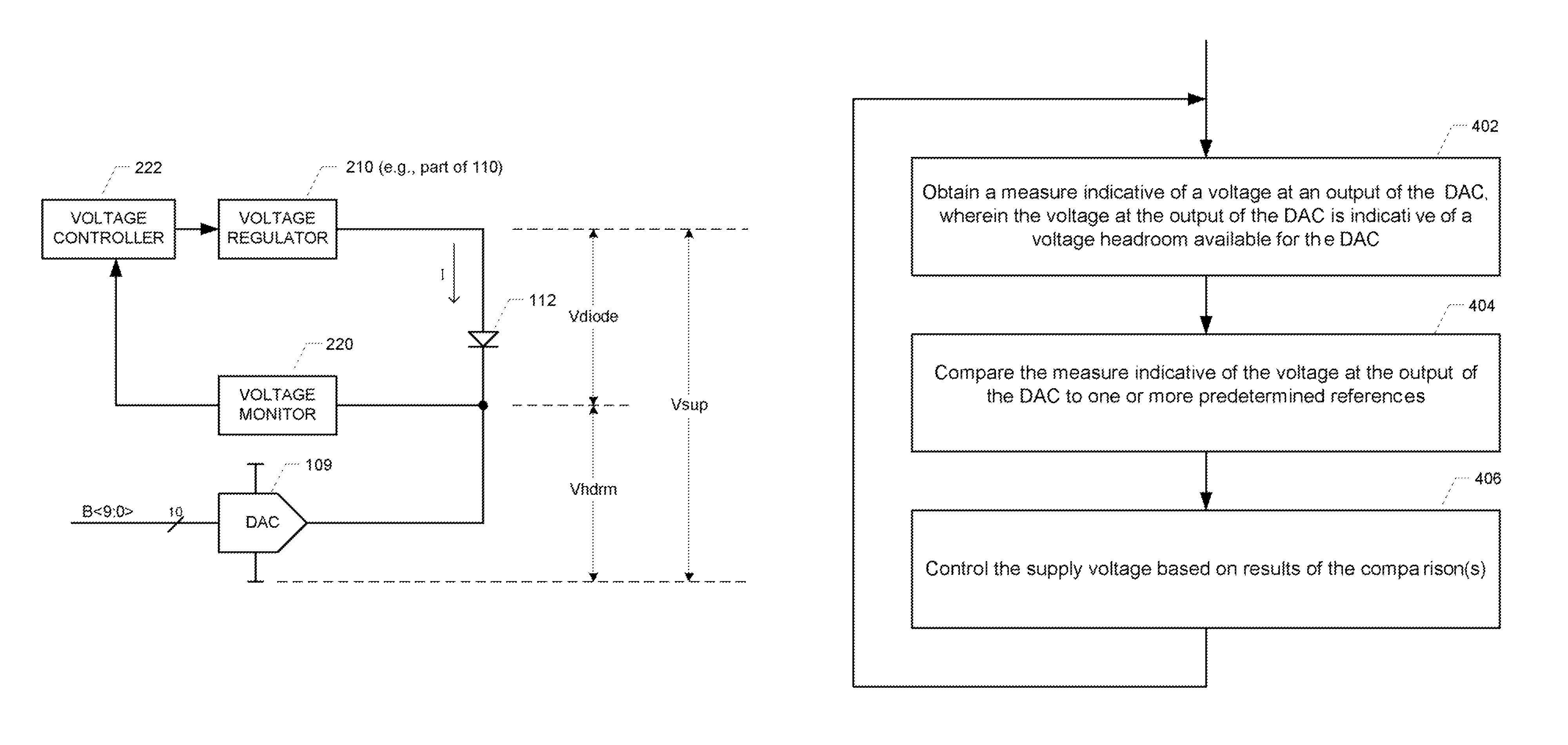

Embodiments of the present invention relate to methods and circuits for use with a system including a light emitting element (e.g., a laser diode or light emitting diode) that is driven by a current produced by a current output digital-to-analog converter (DAC), wherein the light emitting element or the DAC is powered by a supply voltage produced by a voltage supply. In accordance with an embodiment, a measure indicative of a voltage at an output of the DAC is obtained, wherein the voltage at the output of the DAC is indicative of a voltage headroom available for the DAC. The measure indicative of the voltage at the output of the DAC is compared to one or more predetermined references, and the supply voltage is controlled based on the comparison(s).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 28, 2024 |
