Filter medium
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2013
Grant Date -
Aug 5, 2010
app pub date -
Jul 4, 2008
filing date -
Jul 16, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

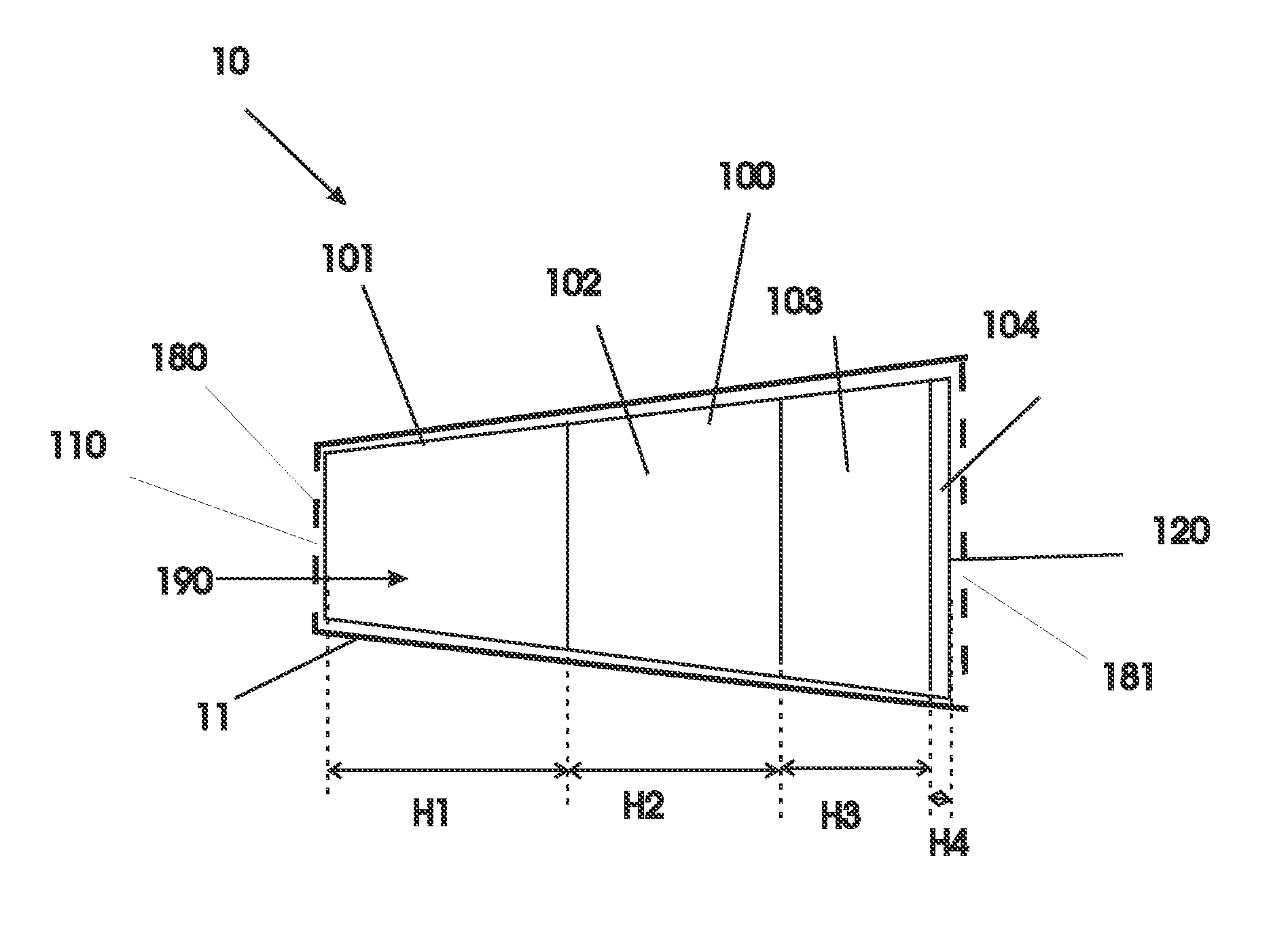

A filter medium (100) having an inflow side (110) and an outflow side (120) defining a flow direction (190). The filter medium comprises at least n consecutive layers Lx of fiber media, x varying from 1 to n, n being more than or equal to 2. L1 (101) is the layer of the n consecutive layers closest to the inflow side of the filter medium and Ln (103) is the layer of the n consecutive layers closest to the -outflow side of the filter medium. For all layers Lx of the at least n consecutive layers, the ratio Hx/(kx*Ax) is substantially identical, wherein Hx is the average thickness of the layer Lx in flow direction, Ax is the average surface area of cross sections according to planes perpendicular to the flow direction, and kx is the permeability coefficient of this layer Lx. The fiber media of at least part of the layers of the filter medium comprises metal fibers.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 28, 2024 |
