Vehicle emergency egress system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2013
Grant Date -
Apr 14, 2011
app pub date -
Aug 9, 2010
filing date -
Oct 13, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

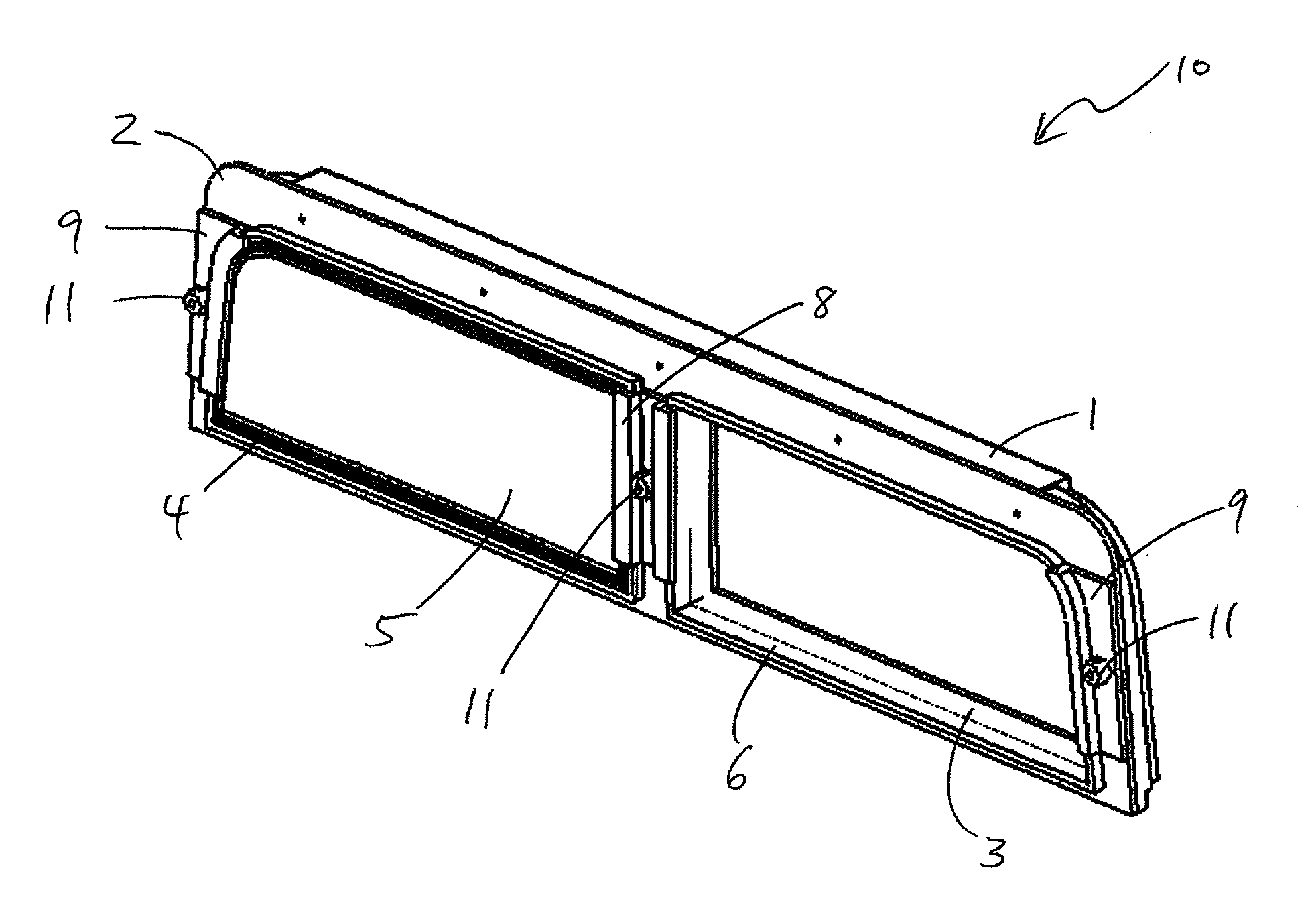

A vehicle emergency egress system. In one embodiment, an emergency egress system for providing an opening for egress from a vehicle includes a frame configured to be directly attached to the vehicle, the frame having a cavity formed therein and defined on a first side by a back surface facing an exterior of the vehicle, the back surface having an opening formed therethrough; a panel removably received in the cavity for covering the opening, the back surface retaining the panel in a first direction; and at least a bracket removably attached to the frame on the exterior of the vehicle and retaining the panel in a second direction opposite the first direction, wherein the bracket is detachable from the frame by an occupant inside the vehicle for removal of the panel to the exterior of the vehicle in the second direction.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 28, 2024 |
