Apparatus having a slidable cap
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 21, 2013
Grant Date -
Jun 28, 2012
app pub date -
Mar 5, 2012
filing date -
Sep 17, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

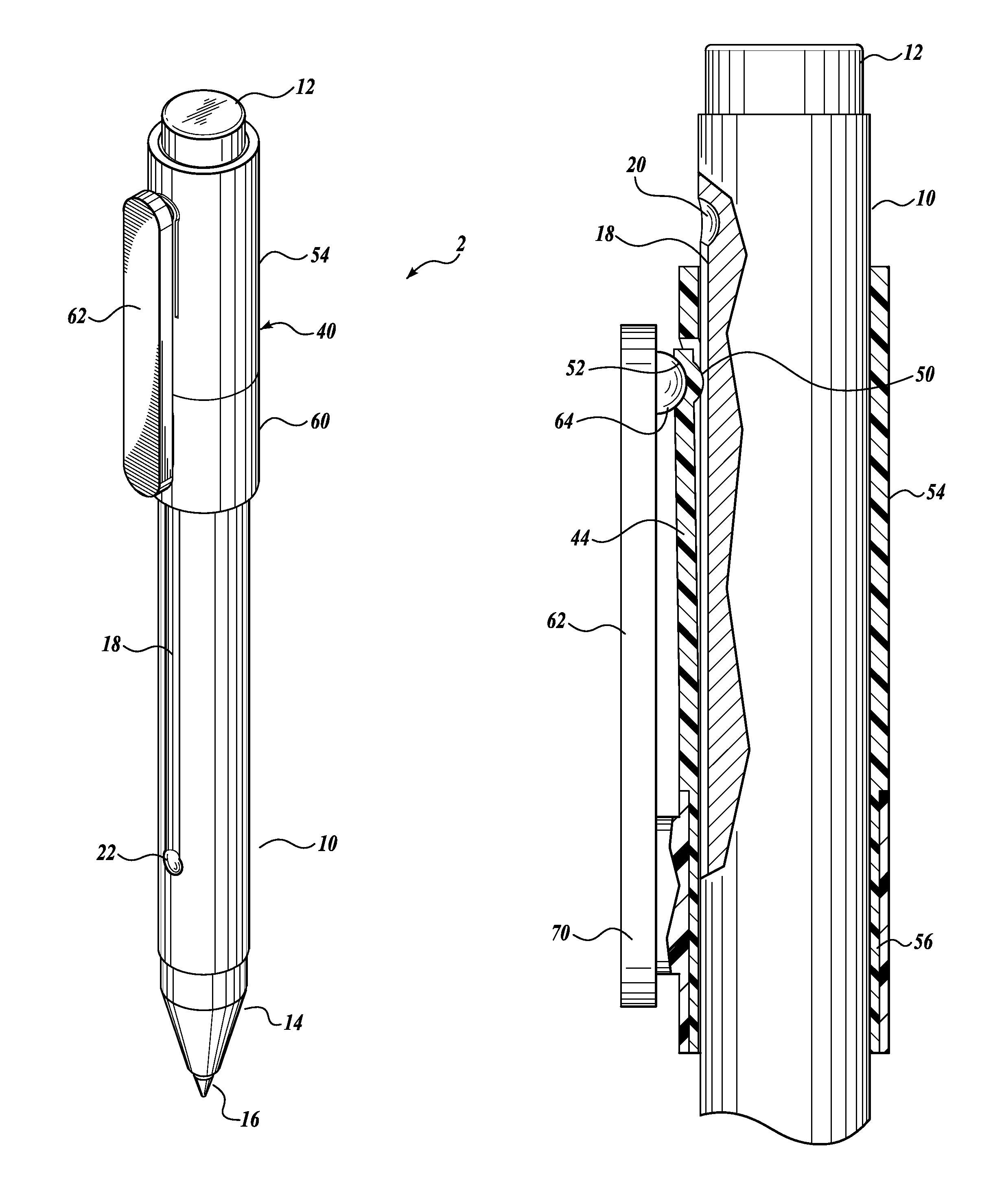

An apparatus comprises a body that extends longitudinally between a top end and a bottom end, an elongate slot disposed in an outer surface of the body and having first and second spaced-apart detents, and a cap disposed coaxially around the body and having a cut therein that defines an elongate arm. The elongate arm has an inwardly-oriented protrusion configured to engage the detents of the slot. The cap is slidable along the body such that the inwardly-oriented protrusion slides along the slot until it detachably engages a detent, thereby retaining the cap in either a closed position that covers the bottom end or an open position in which the bottom end is exposed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B43K Class
- 92 Applications Filed
- 81 Patents Issued To-Date
- 88.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B43K Class
- 0 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 21, 2024 |
