Pitch adjustable bi-directional shovel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 21, 2013
Grant Date -
Jul 28, 2011
app pub date -
Dec 29, 2010
filing date -
Jan 25, 2010
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

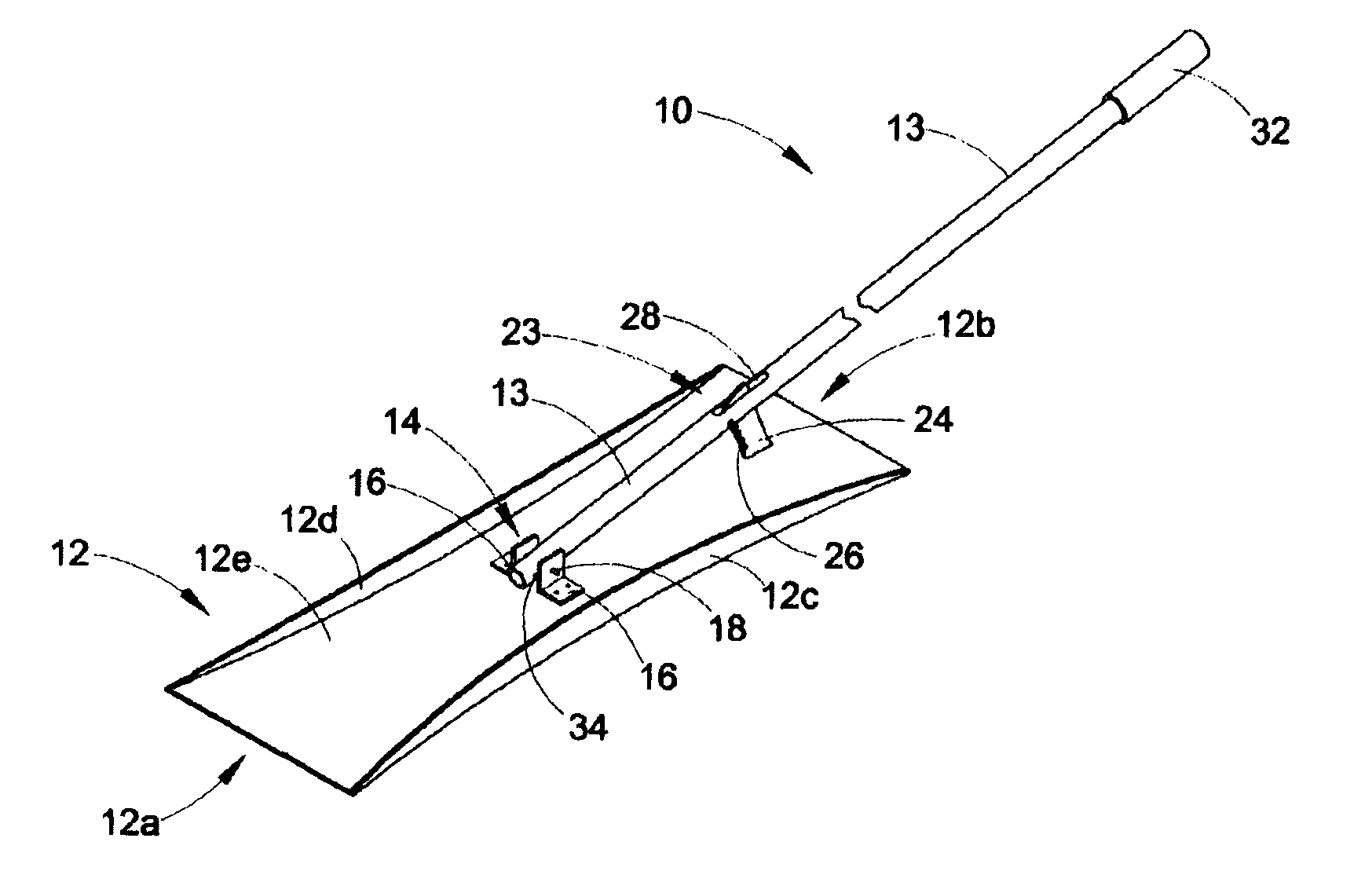

A pitch adjustable bi-directional shovel includes a substantially flat blade including a forward edge and a rearward edge. Each edge of the blade includes a contact surface. A pivot is secured to the blade. A handle is provided including a first end and a second end, the first end being rotatably mounted to the pivot. An adjustable retention assembly is secured to one or more of the pivot, the blade, or the handle, wherein the pivot and the adjustable retention assembly cooperate to alter the pitch of the blade with respect to the handle so as maintain the blade in general parallel orientation with the associated debris laden surface. The contact surface of the forward edge slideably engages the associated debris laden surface when urged in the forward direction and the contact surface of the rearward edge slideably engages the associated debris laden surface when urged in the rearward direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F23J Class
- 65 Applications Filed
- 40 Patents Issued To-Date
- 61.54 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F23J Class
- 13.16 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 21, 2024 |
