Coin separating and transferring apparatus for positioning a sorted coin at an interim stationary position
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 14, 2013
Grant Date -
Sep 20, 2012
app pub date -
Mar 9, 2012
filing date -
Mar 17, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

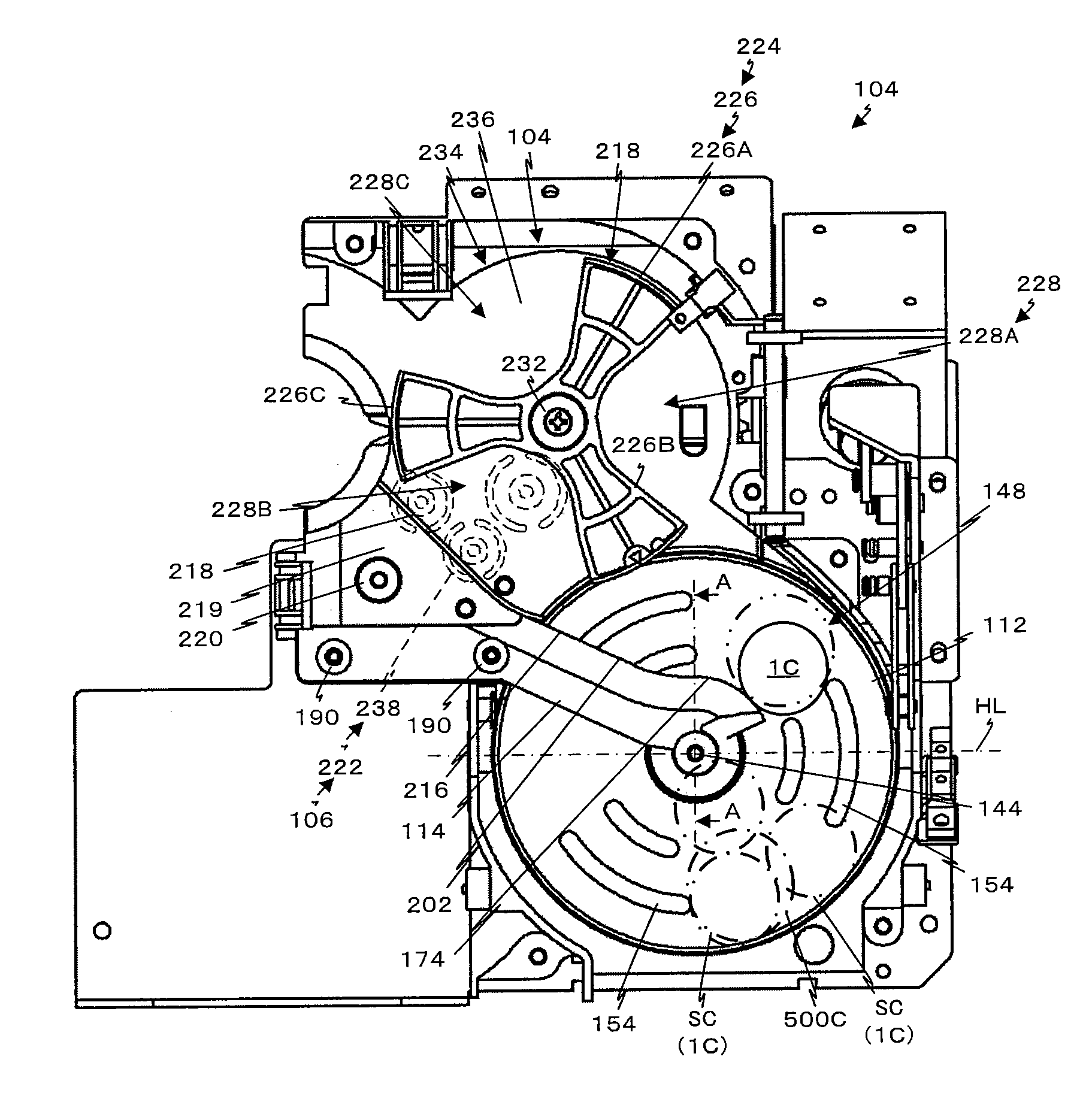

A compact inexpensive coin separating and transferring apparatus can separate coins and reliably delivering each one to a rotating transferring body. Coins or tokens are contacted by a holding surface on a pusher unit formed so as to project from an upper surface of a rotary disk to permit the coins to be sorted one by one and stored. The coins are each pushed by the pusher unit along a circumferential-direction of a fixed guiding ledge positioned above the rotary disk. The coin reaches a stationary state at a predetermined delivery position on a delivery support ledge. A holding ledge has a predetermined diameter formed at an outer perimeter edge of the pusher. The coin is removed by a rotary transferring body from the delivery position, and physical properties can be detected by a sensor while moved along a sensor-part guide.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G07D Class
- 188 Applications Filed
- 155 Patents Issued To-Date
- 82.45 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G07D Class
- 6.25 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 14, 2024 |
