Vertical frame intended for the construction of a frame support, a supporting scaffold and/or a supporting scaffold tower
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 14, 2013
Grant Date -
Dec 16, 2010
app pub date -
Nov 8, 2008
filing date -
Jan 24, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

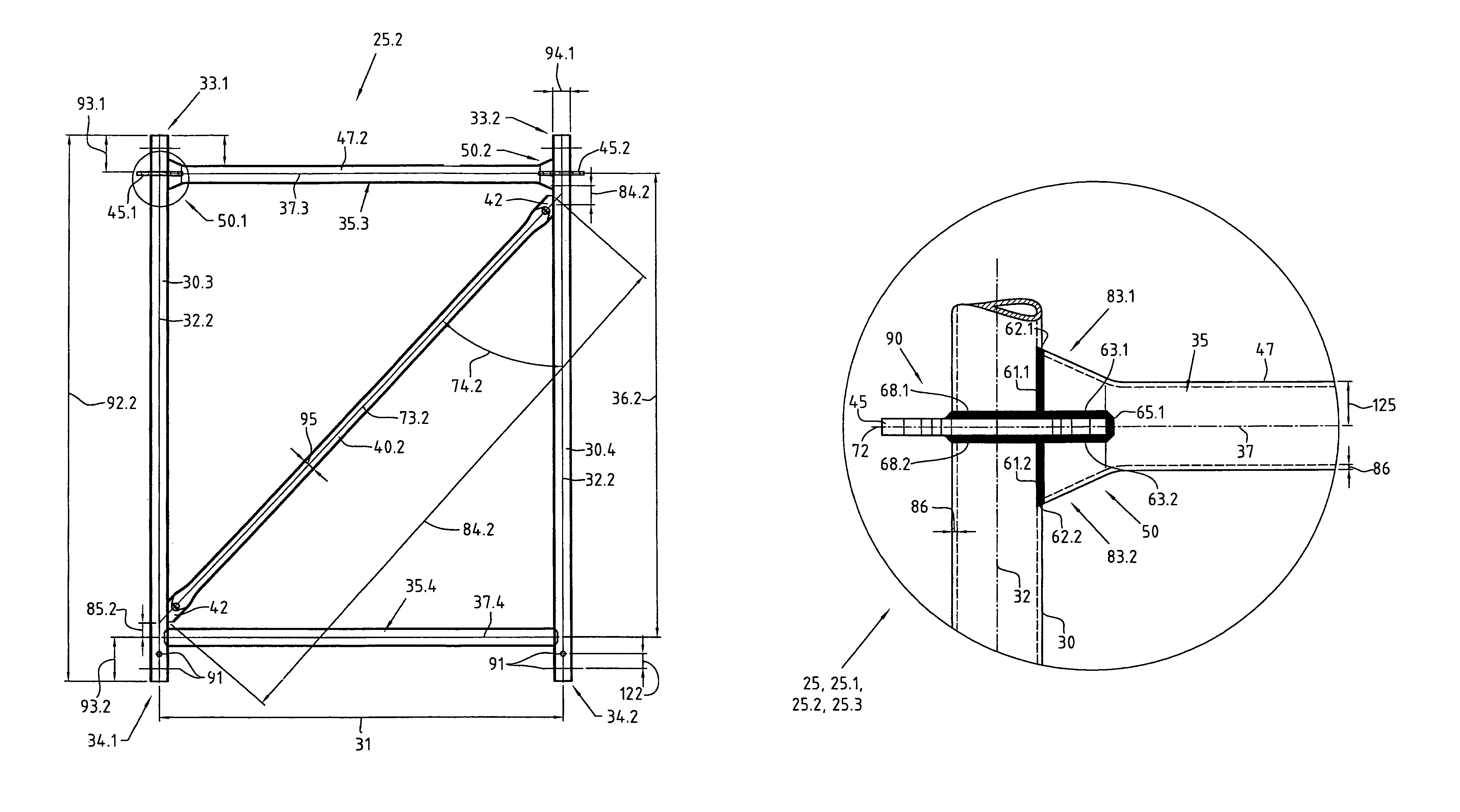

A closed vertical frame for constructing a supporting frame, including at least two vertical supports disposed at a horizontal distance from each other, and at least two horizontal arms disposed at a vertical distance from each other. Each extends between the at least two vertical supports transversely to the vertical supports. A first horizontal arm is welded on both ends to a respective vertical support near the upper end thereof, and a second horizontal arm is welded on both ends likewise to these vertical supports near the lower end thereof. The vertical frame is reinforced with at least one diagonal rod extending between two vertical supports and two horizontal arms and is welded onto two vertical supports. Near the respective upper and/or lower end, a perforated disk having openings is welded to connect holding devices.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- E04G Class
- 243 Applications Filed
- 131 Patents Issued To-Date
- 53.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- E04G Class
- 5.43 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 14, 2024 |
