Pattern projection light source and compound-eye distance measurement apparatus

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 8434874
APP PUB NO 20090185157A1
SERIAL NO

12302432

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

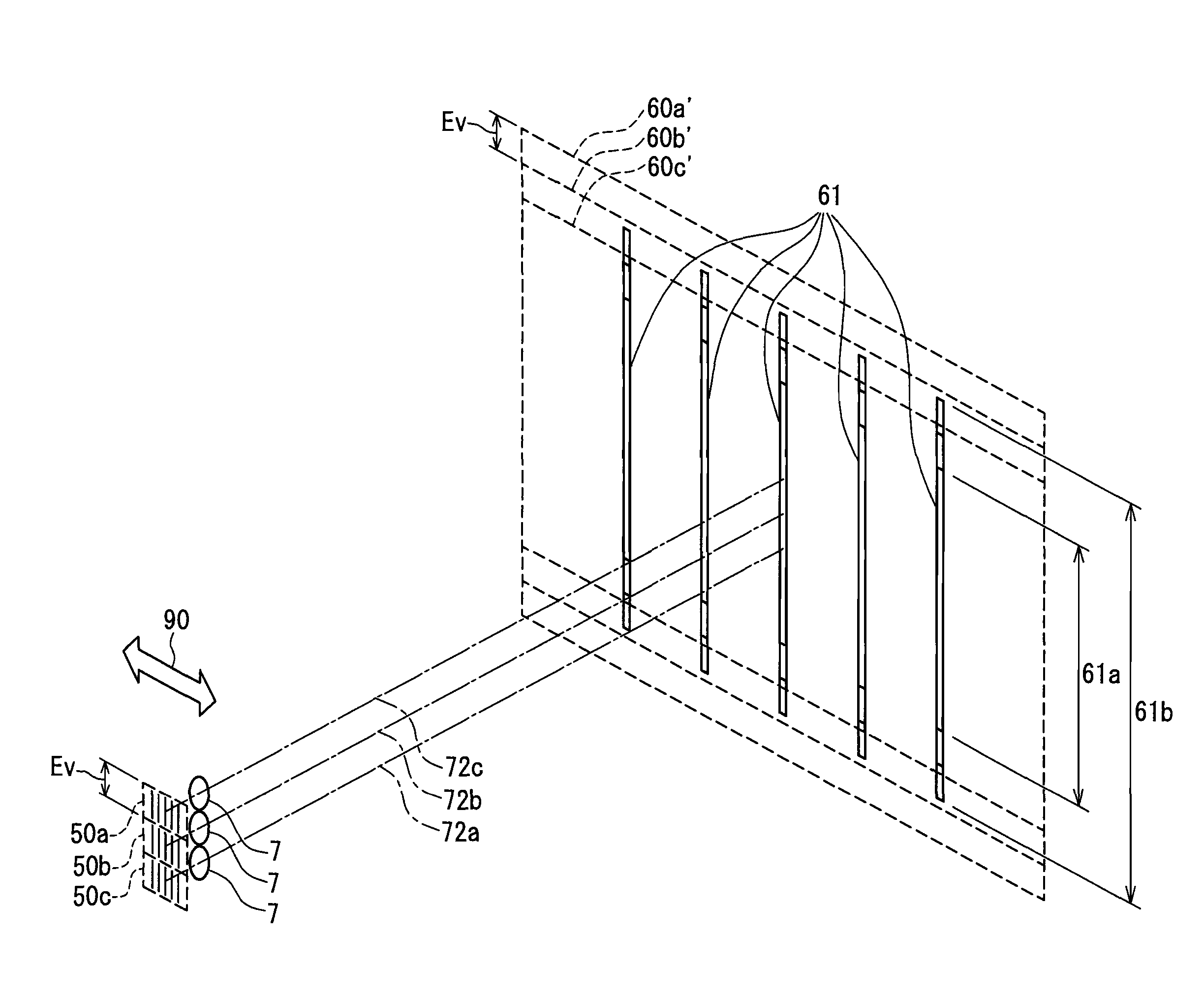

A pattern projection light source is disclosed in which a light source (2a); a plurality of mask regions (5) in each of which a light-transmitting portion that transmits light from the light source therethrough is formed in a predetermined pattern; and a plurality of lenses (7) that each form an image of the predetermined pattern of the light-transmitting portion at a predetermined distance are arranged in this order. Since the pattern projection light source includes a plurality of projection optical systems each including a mask region and a lens, a compact and thin pattern projection light source can be realized. Moreover, provision of a plurality of lenses makes it possible to increase the imaging range of a pattern image. Furthermore, an image of the pattern of the light-transmitting portion can be formed clearly on the object.
