Radiation detection device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 16, 2013
Grant Date -
Aug 26, 2010
app pub date -
Jan 20, 2010
filing date -
Feb 26, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

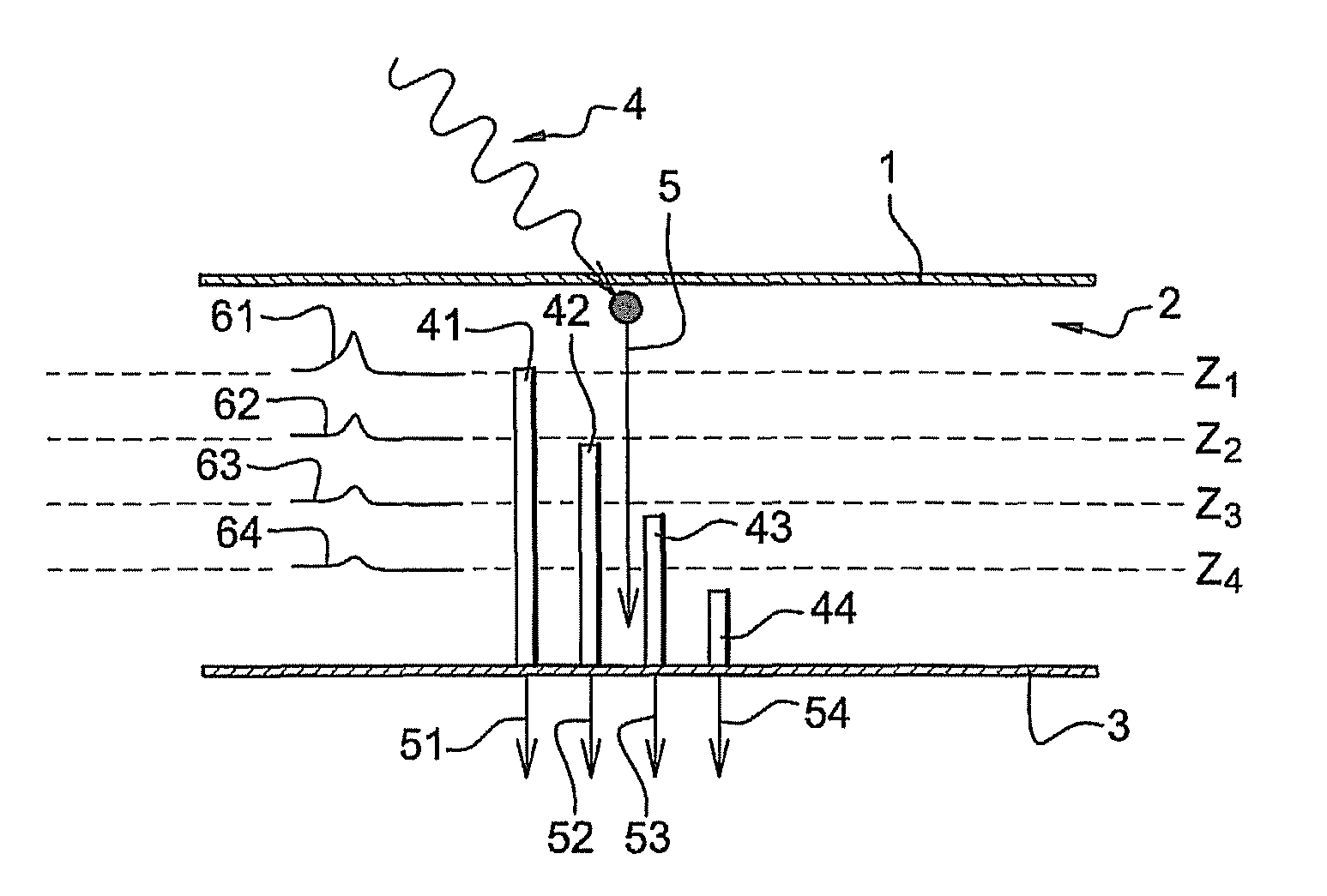

This device for the detection of ionizing radiation includes a stack integrating a first set of electrodes (1), a solid detector material sensitive to ionizing radiation (2), capable of interacting therewith by releasing electron and electron hole mobile charge carriers, and a second set of electrodes (3), said first and second sets of electrodes being polarized in such a way that an electric field is applied through the detector material (2), thereby allowing the charge carriers generated by the interaction between the detector material and the ionizing radiation to migrate. It further includes electrically insulated electrodes (41-44), known as non-collecting electrodes, and positioned in the volume of the detector material (2) subjected to the electric field, and capable, by capacitive effect, of detecting the charges induced by the migration of the charge carriers in the volume of the detector subjected to the electric field.
