Electronic pen with retractable nib and force sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 9, 2013
Grant Date -
Dec 24, 2009
app pub date -
Jun 3, 2009
filing date -
Jun 23, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

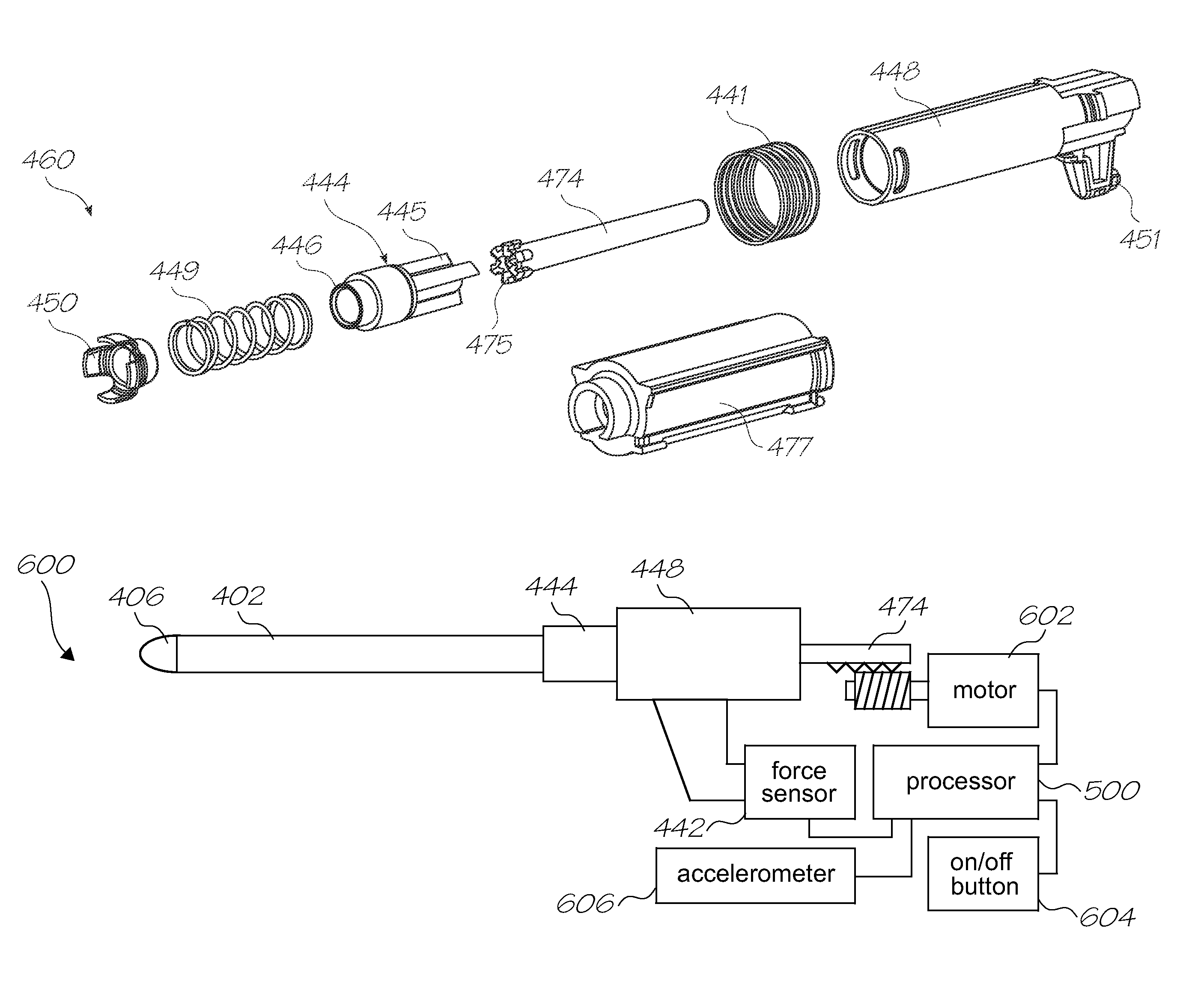

An electronic pen having a retractable nib for interacting with a surface. The pen comprises a slidably movable cartridge having a nib for contacting the surface, a retraction mechanism for retracting the cartridge, an actuator coupled to the retraction mechanism, a force sensor providing a reaction to an axial force transmitted from the cartridge, and a processor configured for generating force data indicative of a force detected by the force sensor. The retraction mechanism comprises a barrel for receiving the cartridge, which is adapted for seating the cartridge in either an extended position or a retracted position, whereby the axial force from the cartridge is transmitted to the barrel in the extended position. A biasing mechanism biases the cartridge towards the extended or retracted positions.
