Image display apparatus, image display method, and recording medium having image display program stored therein
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 2, 2013
Grant Date -
Mar 10, 2011
app pub date -
Apr 9, 2010
filing date -
Apr 10, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

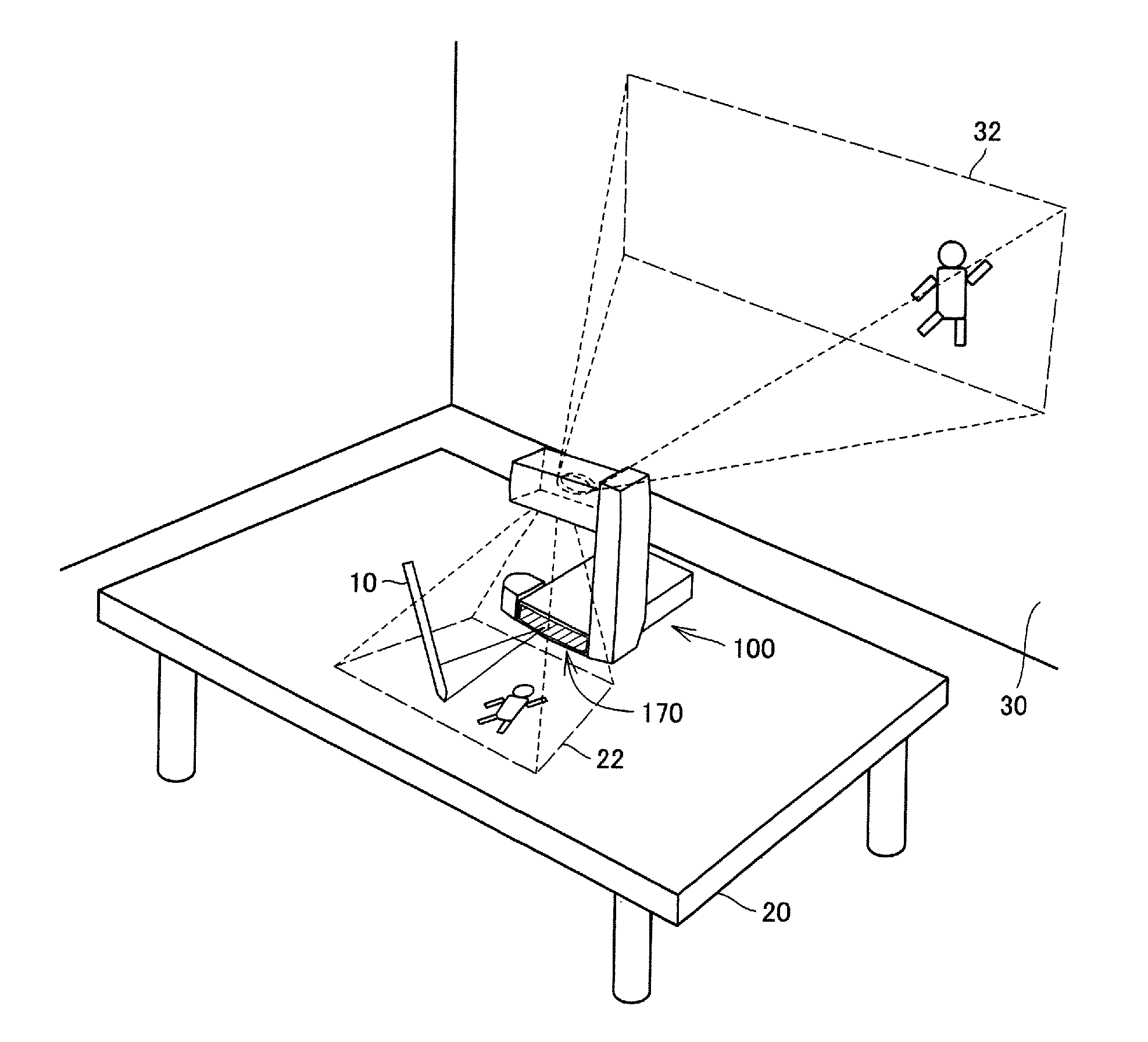

A projector divides and projects a single image onto two different projection surfaces and performs virtual user interface through one projection surface. The projector projects a VUI screen image on a desk and projects a main projected screen image on a wall. The projector includes a light receiving element, which is installed at a position that receives light emitted to the desk (the projection surface of the VUI screen image) and reflected (or scattered) by an object in the vicinity of the desk. The projector calculates a position of the object based on a light detection timing of the light-receiving element and a scanning position of light at each time and changes a projected image based on the calculated position. The projector displays a designated region of the VUI screen image to be brightened.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2010244484 | Apr 10, 2009 |
| EP | A2 | EP2239650 | Apr 08, 2010 |
| CN | A | CN101859208 | Apr 09, 2010 |
International Classification(s)
- 2010 Application Filing Year
- H04N Class
- 9229 Applications Filed
- 6998 Patents Issued To-Date
- 75.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 23 Citation Count
- H04N Class
- 71.91 % this patent is cited more than
- 12 Age
