Molded plastic dishwasher rack tine members including elastomeric bumpers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 2, 2013
Grant Date -
Dec 28, 2006
app pub date -
Jun 22, 2005
filing date -
Jun 22, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

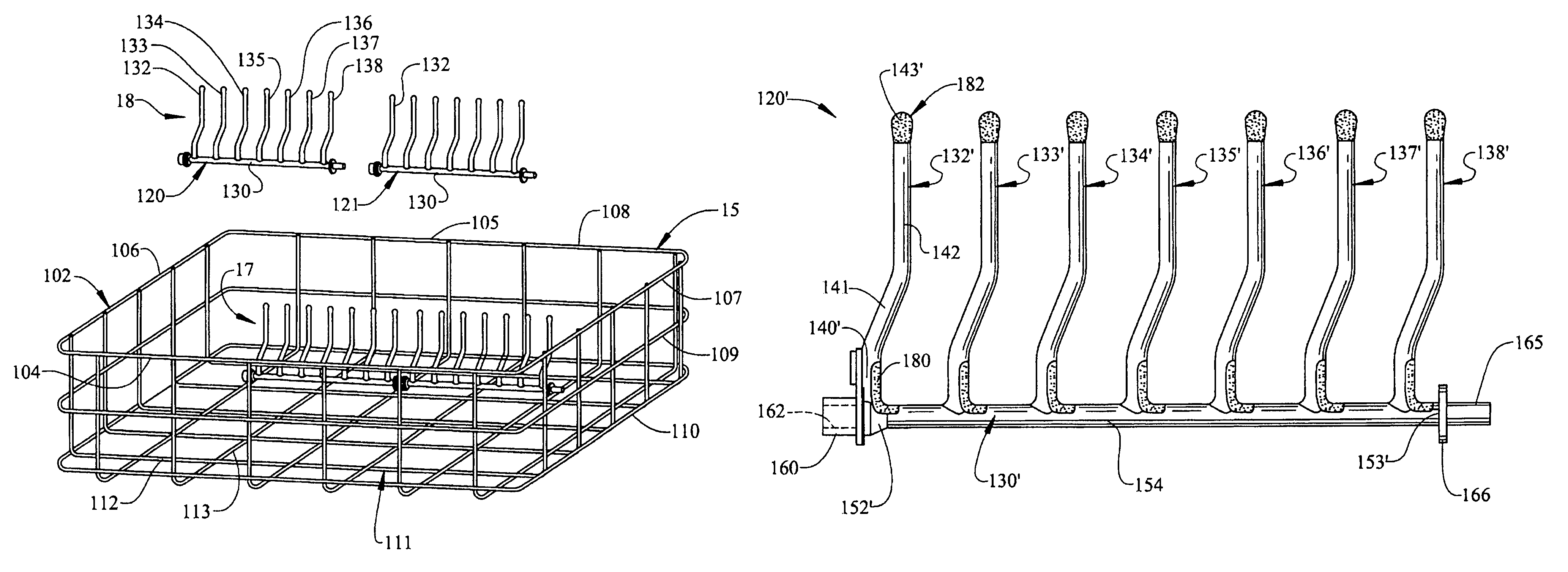

A dish support rack for a dishwasher is formed from composite, preferably ceramic/plastic composite. The dish rack includes front, rear and opposing side walls interconnected with a bottom portion. The dish support rack includes a plurality of tine members. The tine members include a base member from which extend a plurality of tines. Each base member includes a socket and a pin element used to join individual tine members to form tine rows. The tine rows are then fastened to the bottom portion to establish dish support zones in the dish rack. The tines can include one or more elastomeric bumpers positioned at various locations where dishware is likely to contact.
First Claim
Other Claims data not available
