Versatile refrigerator crisper system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 26, 2013
Grant Date -
Jul 21, 2005
app pub date -
Jan 12, 2005
filing date -
Jan 16, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

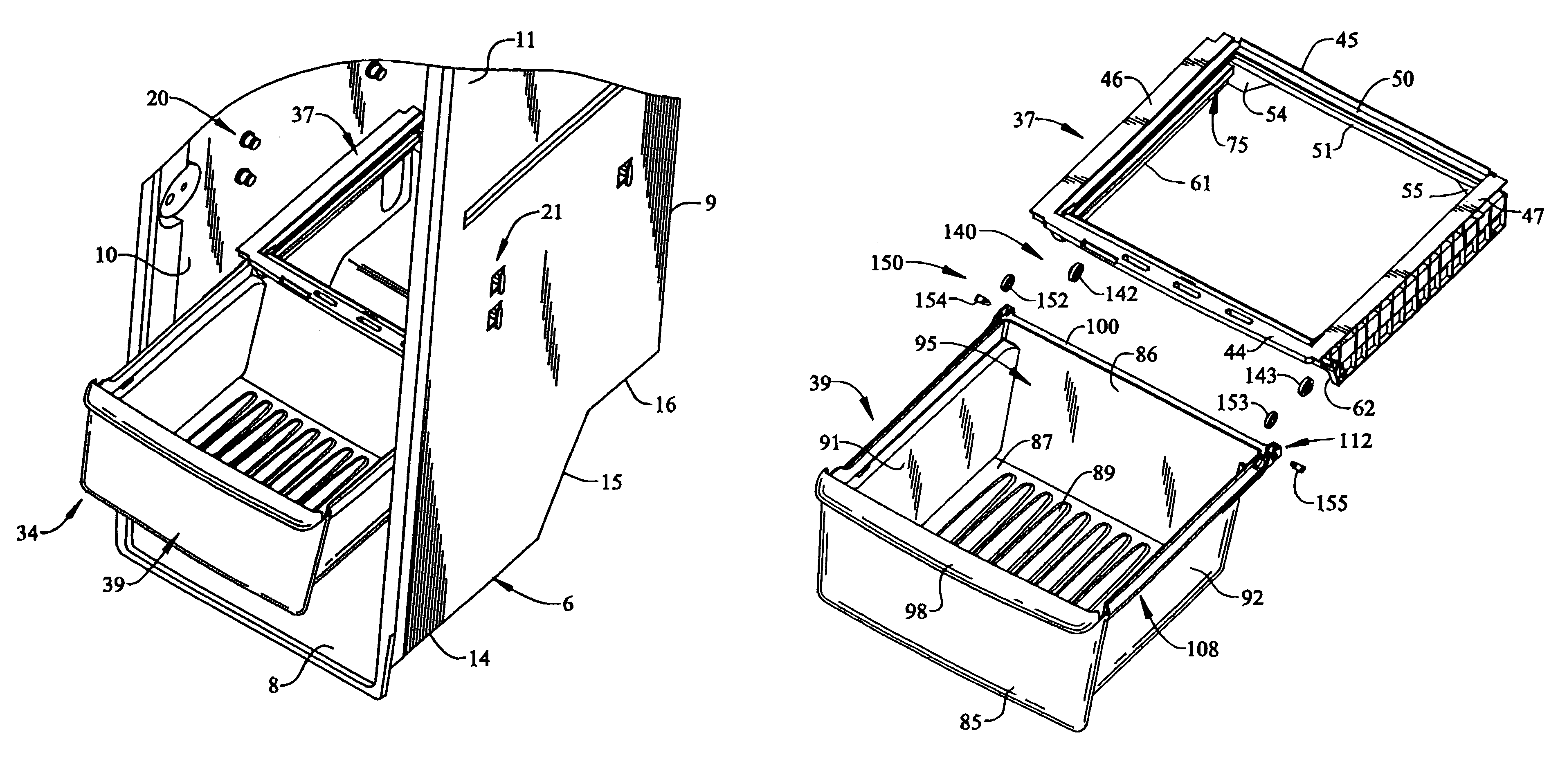

A refrigerator includes a multiple slide crisper system. More specifically, a universal crisper pan and support frame for a refrigerator can be used with various, distinct glide arrangements, including friction, roller or ball bearing glides. For frictional sliding movement, crisper pan side walls slide directly upon molded inner rails on the frame. With the roller system, various rollers are fitted to a rear portion of the crisper pan through the use of pins, while commensurate rollers are mounted at front portions of the frame. When using ball bearing glides for a precision slide support, the glides are preferably mounted to the support frame at an acute angle to the axis of travel of the friction and roller glide systems.
First Claim
Other Claims data not available
