Armor plated device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 26, 2013
Grant Date -
Jul 12, 2012
app pub date -
Sep 19, 2007
filing date -
Sep 19, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

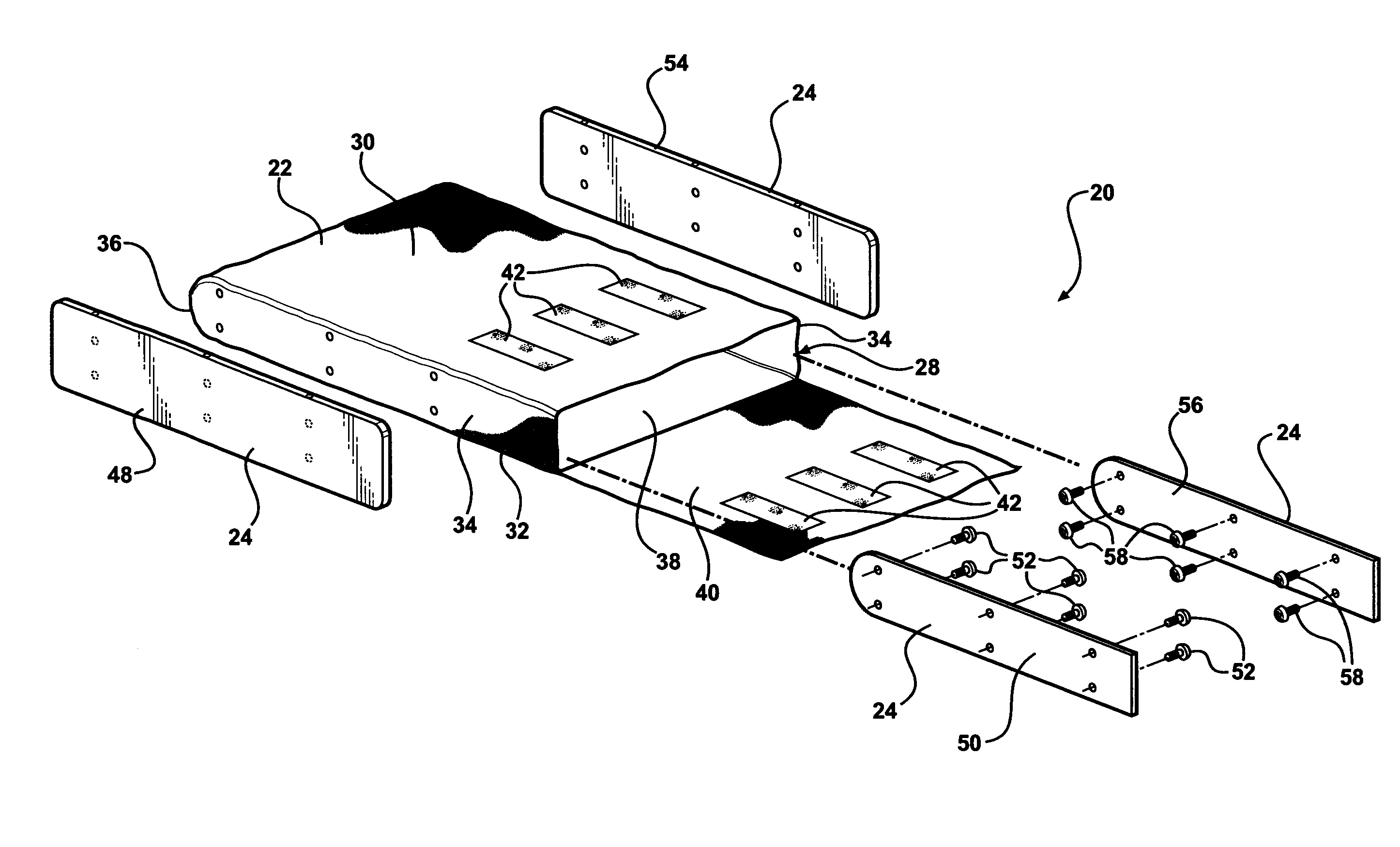

An armor plated assembly (20) and a protective wall system (120) containing a protective material. The armor plated assembly (20) comprises of a container (22) having opposing walls (26) for encompassing the protective material. The assembly (20) includes an armor device (24) having a first plate (48) and a second plate (50) with one of the opposing walls (26) sandwiched between the first plate (48) and the second plate (50) securing the armor device (24) to the container (22). The armor device (24) impedes the penetration of a projectile through the armor plated assembly (20). The protective wall system (120) includes at least two of the armor plated assemblies (20) with a mechanical connection (140) between the armor devices (126, 134) of the armor plated assemblies (20) for aligning and securing the assemblies (20) in a stacked orientation. A second embodiment of the protective wall system (220) includes at least two containers (222, 234) and a bib (232, 236) adhered to each of the containers (222, 234) such that the bibs (232, 236) overlap in a shingle-like engagement between the stacked containers (222, 234).
First Claim
Other Claims data not available
