Housing, electrical coupling including said housing, and vehicle including such a coupling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 19, 2013
Grant Date -
Mar 22, 2012
app pub date -
Mar 15, 2010
filing date -
Mar 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

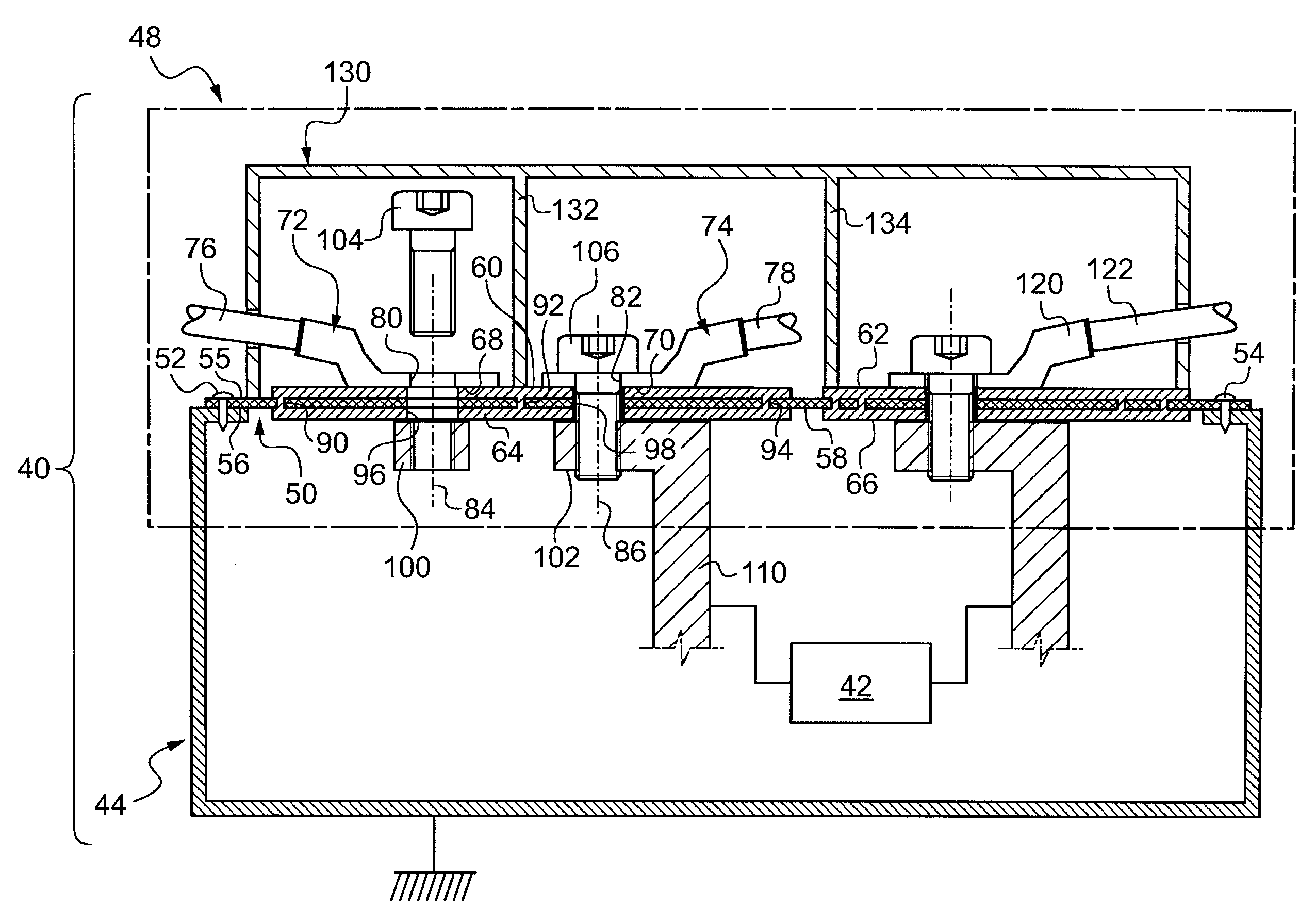

The invention relates to a housing, including: electronic components (42); walls (44) mechanically insulating said electronic components from the outside; at least one electric connection pad (18, 20, 22, 24) arranged on an outer surface of one of said walls so as to be electrically coupled to a cable outside the housing, said connection pad being electrically coupled to the electronic components (42) inside the housing, characterized in that the connection pad includes: a printed circuit board (50) defining a portion of the housing wall (44) and having a surface exposed to the outside of the housing; and an electric connection outer plane (60, 62) engraved on said surface for directly contacting the outer cable, said plane being electrically coupled to the electronic components.
First Claim
Other Claims data not available
Family
