Granulated kaolin compositions and processes for their production
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 5, 2013
Grant Date -
May 6, 2010
app pub date -
Mar 20, 2008
filing date -
Mar 21, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

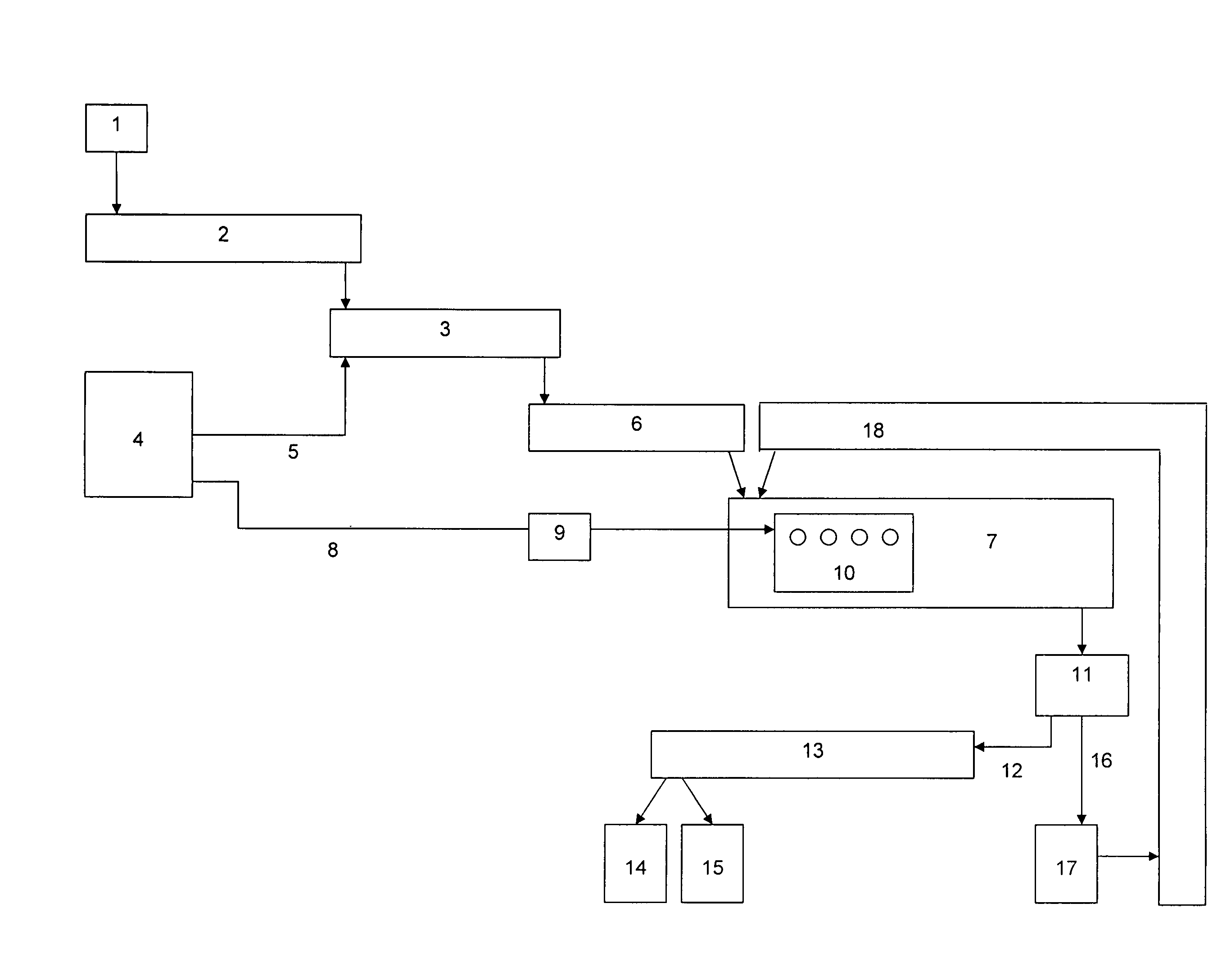

Disclosed herein are granulated kaolin compositions exhibiting at least one of improved material handling properties, low dusting during transit, easy make-down into mineral-water slurries, and requiring less energy to produce than spray dried kaolin products. The granulated kaolin compositions may, in one embodiment, be characterized by a moisture content ranging from about 12% to about 23% by weight relative to the total weight of the composition. In another embodiment, the granulated kaolin compositions may have an average granule size of greater than about 10 mesh. Also disclosed herein are granulated kaolin compositions having a moisture content ranging from about 12% to about 23% by weight relative to the total weight of the composition, wherein the composition is friable when subjected to a shear force. Further disclosed herein is a method for producing granulated kaolin compositions comprising mixing at least one kaolin slurry with at least one predispersed spray dried kaolin and agglomerating the resulting mixture. Still further disclosed herein is a system for producing granulated kaolin compositions comprising a first zone for mixing at least one kaolin slurry with at least one predispersed spray dried kaolin and a second zone for agglomerating the resulting mixture.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- C04B Class
- 13.04 % this patent is cited more than
- 12 Age
