Systems and methods for optimizing thermal efficiency of a compressed air energy storage system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 5, 2013
Grant Date -
Mar 8, 2012
app pub date -
Nov 11, 2011
filing date -
Nov 11, 2011
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

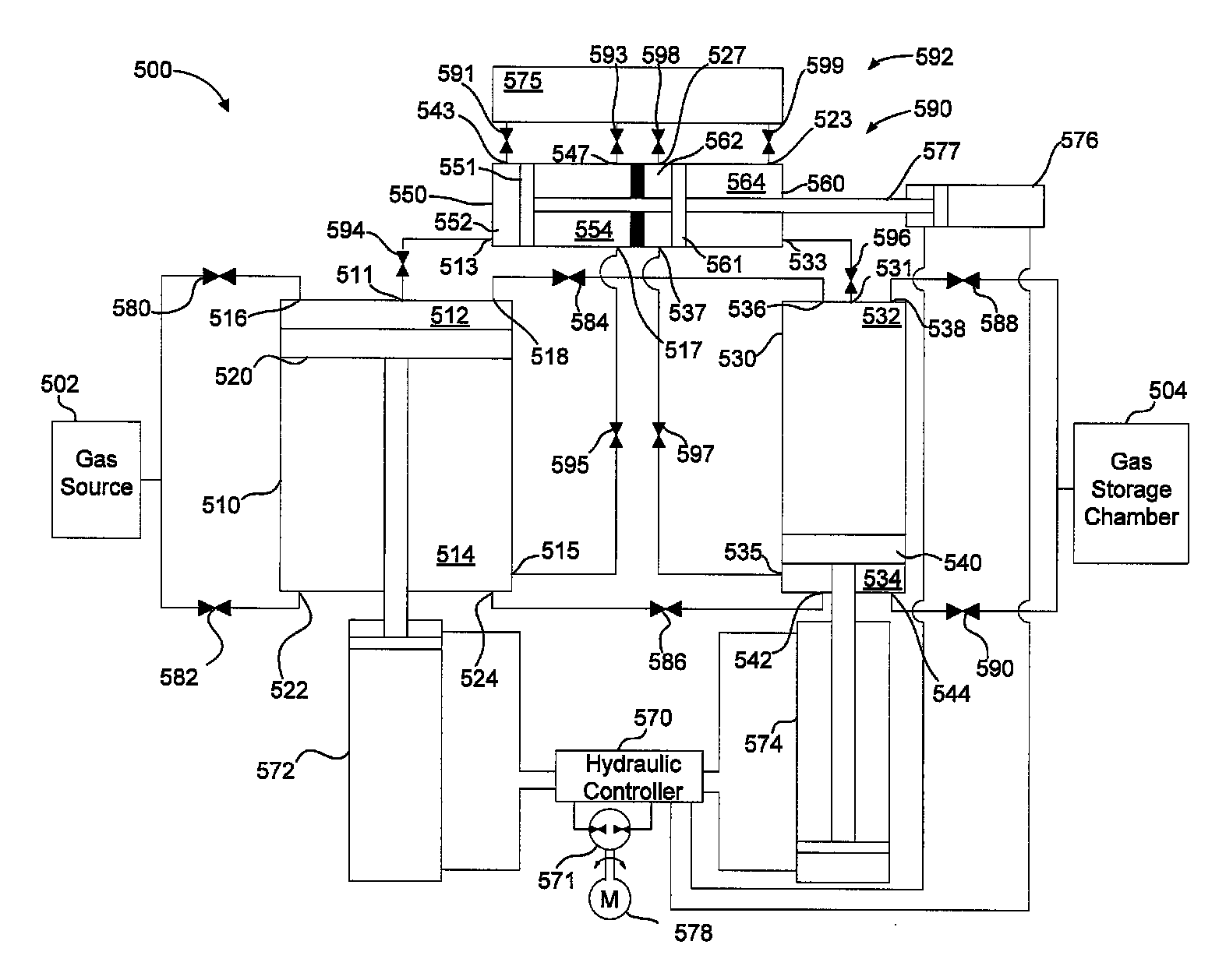

Systems, methods and devices for optimizing thermal efficiency within a gas compression system are described herein. In some embodiments, a device can include a first hydraulic cylinder, a second hydraulic cylinder, and a hydraulic actuator. The first hydraulic cylinder has a first working piston disposed therein for reciprocating movement in the first hydraulic cylinder and which divides the first hydraulic cylinder into a first hydraulic chamber and a second hydraulic chamber. The second hydraulic cylinder has a second working piston disposed therein for reciprocating movement in the second hydraulic cylinder and which divides the second hydraulic cylinder into a third hydraulic chamber and a fourth hydraulic chamber. The hydraulic actuator can be coupled to the first or second working piston, and is operable to move the first and second working pistons in a first direction and a second direction such that volume in the hydraulic chambers are reduced accordingly.
First Claim
Other Claims data not available
