Holder for fuses
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 26, 2013
Grant Date -
Oct 14, 2010
app pub date -
Apr 12, 2010
filing date -
Apr 14, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

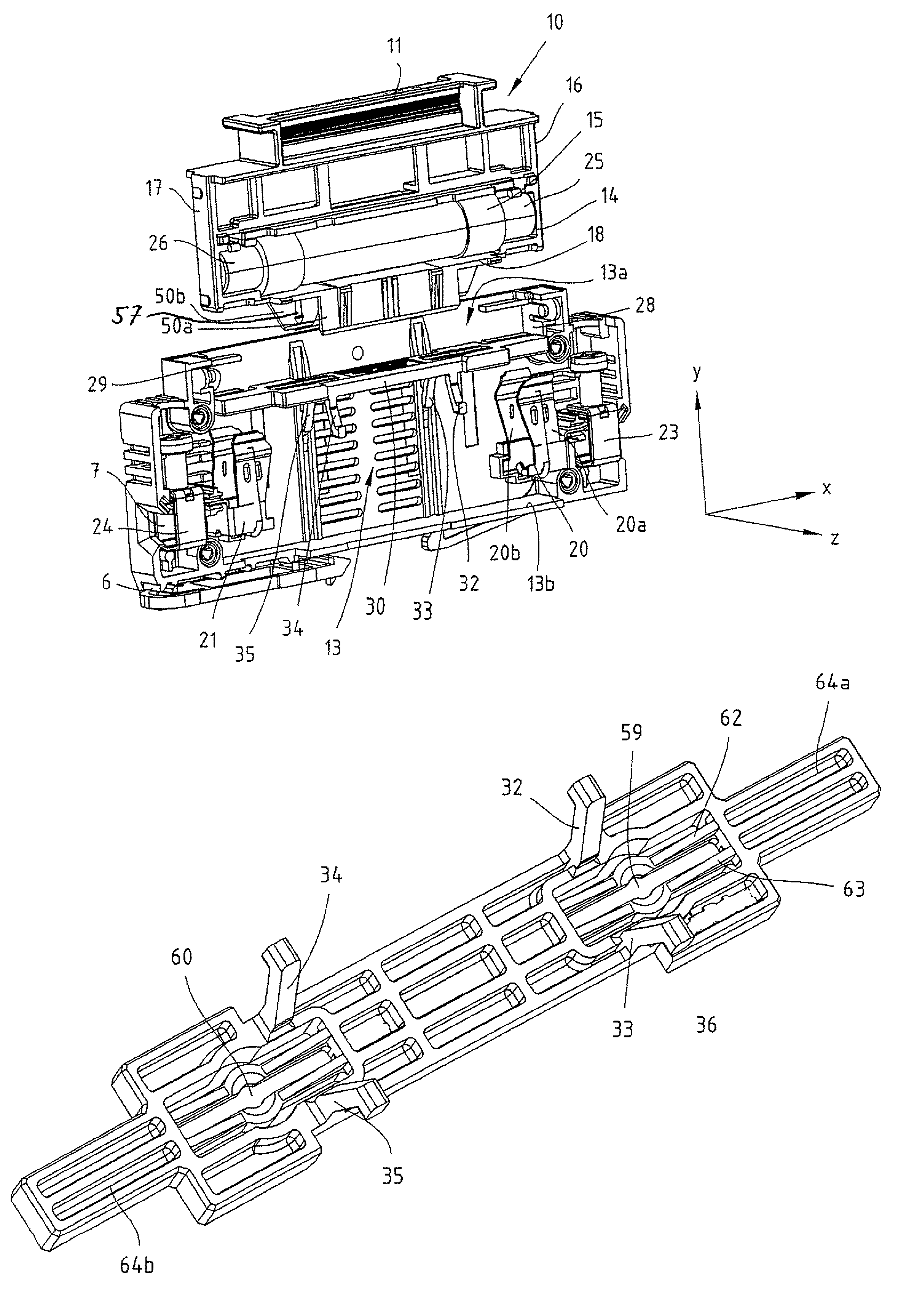

The invention relates to holders for receiving fuses, with a housing having a receiving shaft, the receiving shaft containing contacts which are provided for contacting at least one fuse inserted into the receiving shaft, a cover which is adjustably arranged in the receiving shaft, a fuse holding device which is adjustably guided in the receiving shaft, wherein the cover has a unit being engageable with a guiding mechanism and which holds the cover at a predetermined position within the housing, a coupling device for detachably coupling the cover to the fuse holding device, wherein the unit of the cover is formed by feet which protrude laterally from the cover and are engageable with the guides in the housing, and wherein the guiding mechanism comprises stops and/or stop faces which are provided in the guiding mechanism, and which hold the cover in a top position of the cover.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- H01H Class
- 8.09 % this patent is cited more than
- 12 Age
