Anti-marking coverings for printing presses
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 26, 2013
Grant Date -
Jan 31, 2008
app pub date -
Aug 13, 2007
filing date -
Jul 20, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

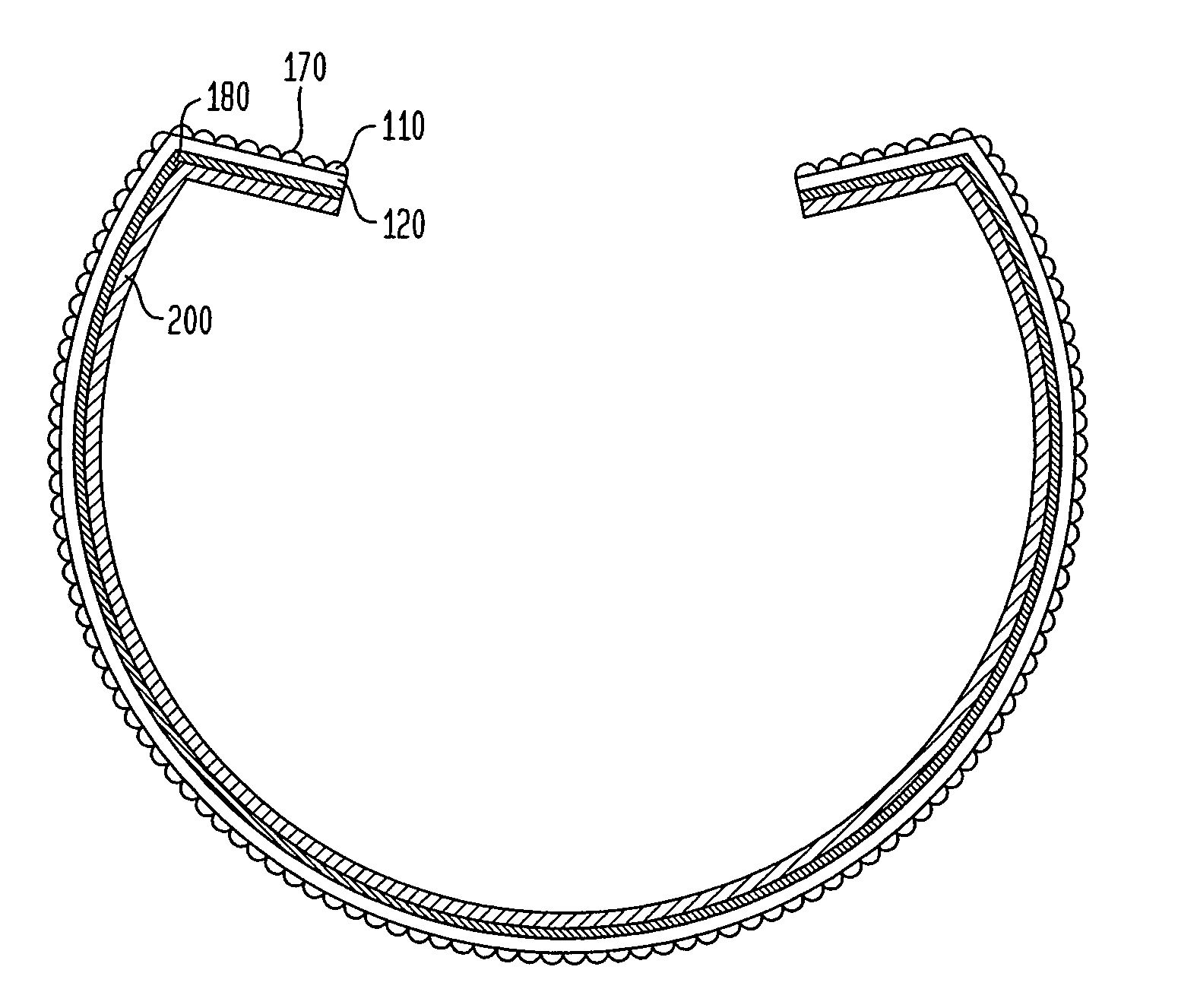

In a printing press and attached onto the transfer cylinders, an anti-marking system that uniformly supports the transport and the release of the wet printed sheet from one station to the next. The anti-marking sheet consists of a two plus layer system, the outer layer being a textured surface and the inner layer being a microcellular material that is both compressible and resilient. The outer textured layer may be treated with either conductive/anti-static layers or an ink repellent layer or both. The two plus layer system is easily attached to both transfer cylinders and tracking/skeleton wheels using any combination of fixtures from Velcro™, magnetic, metallic, and pressure sensitive double sided tape to elastic loops.
First Claim
Other Claims data not available
