Linerless label roll-up preventing device of thermal printer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 19, 2013
Grant Date -
Sep 1, 2011
app pub date -
Aug 26, 2009
filing date -
Jul 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

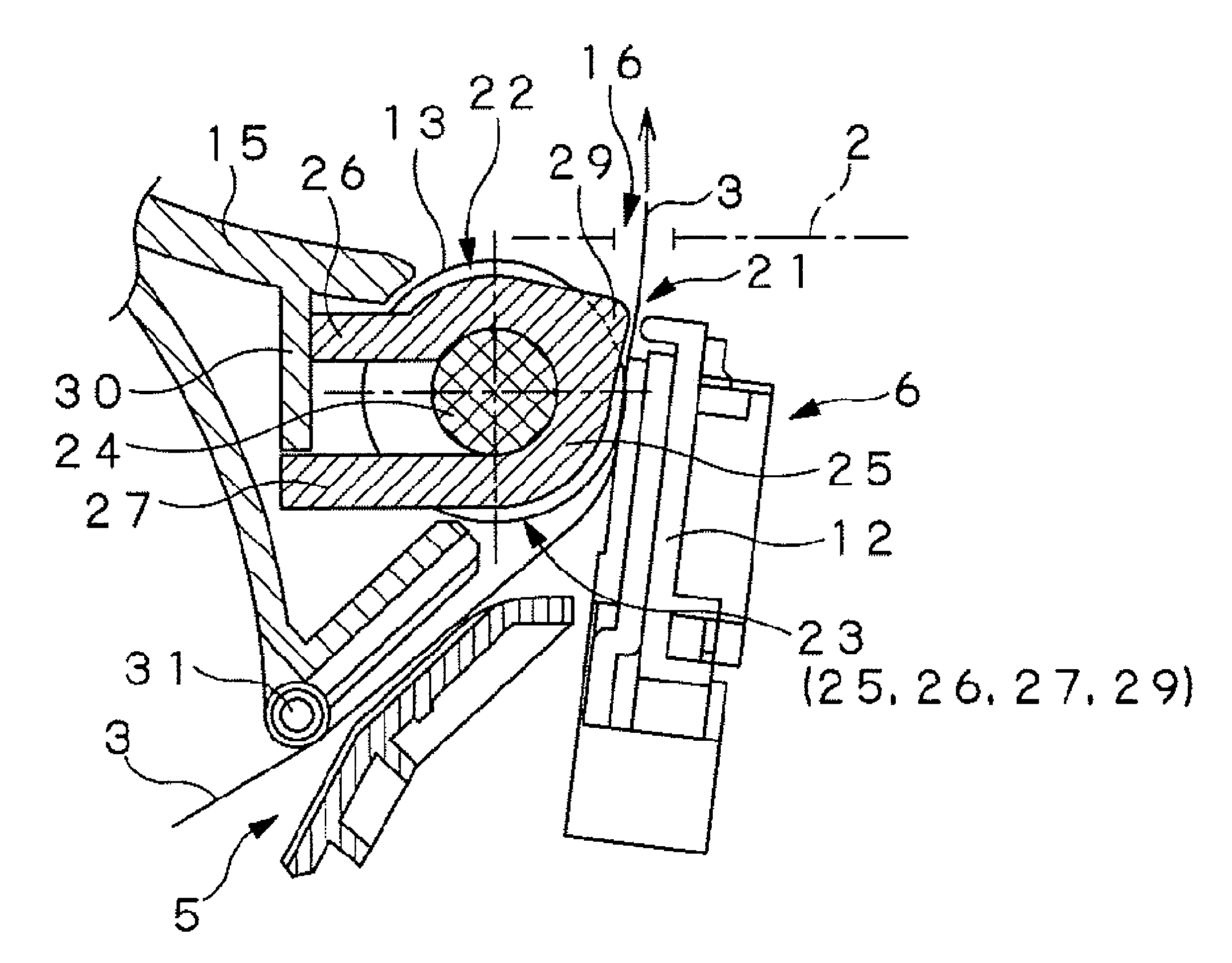

A linerless label roll-up preventing device for a thermal printer that prevents roll-up of the linerless label 3 on the platen roller 13. A roll-up preventing plate 23 is applied to a slit (22) formed in the outer surface of the platen roller (13), and protrudes to form a roll-up preventing edge (29) at a portion of the roll-up prevention plate (23). A roll-up preventing plate 23 being fixed to a slit (22), formed in the radial surface of the platen roller (13), relatively to the platen roller (13), and formed with a roll-up preventing projection edge, at a portion of the roll-up preventing plate (23), projecting out slightly from the outer circumferential surface of the platen roller (13) and capable of contacting the back surface of the linerless label (3).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G01D Class
- 5.45 % this patent is cited more than
- 12 Age
