Coolant flow enhancing device for stator coil end turns of fluid cooled electric motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 12, 2013
Grant Date -
Jul 12, 2012
app pub date -
Jan 12, 2011
filing date -
Jan 12, 2011
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

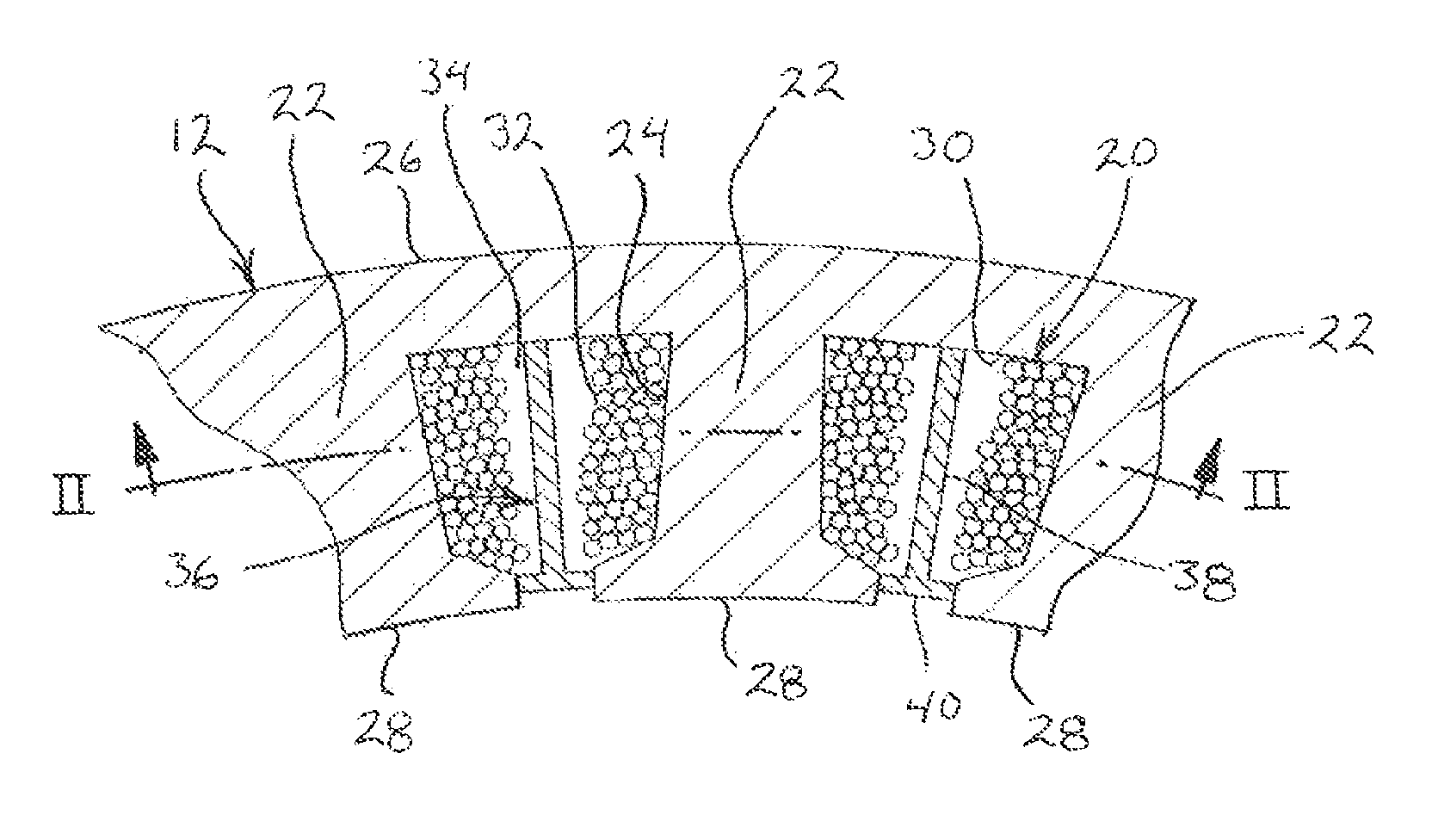

A coolant flow enhancing device is provided to increase electric machine coil cooling at coil end turn locations. Such a device is incorporated into an overall fluid cooled electric machine that has phase separators extending through slots between stator teeth. The device includes flow deflectors located at ends of the phase separators. Each of the flow deflectors is designed so that a contour of its interior surface follows an outer contour of a corresponding one of the end turns to both maximize a cooling fluid flow rate past the one of the end turns and minimize separation of the fluid from the one of the end turns.
