Apparatus and method for supporting a mine rib
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 12, 2013
Issued Date -
N/A
app pub date -
May 10, 2010
filing date -
Sep 1, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

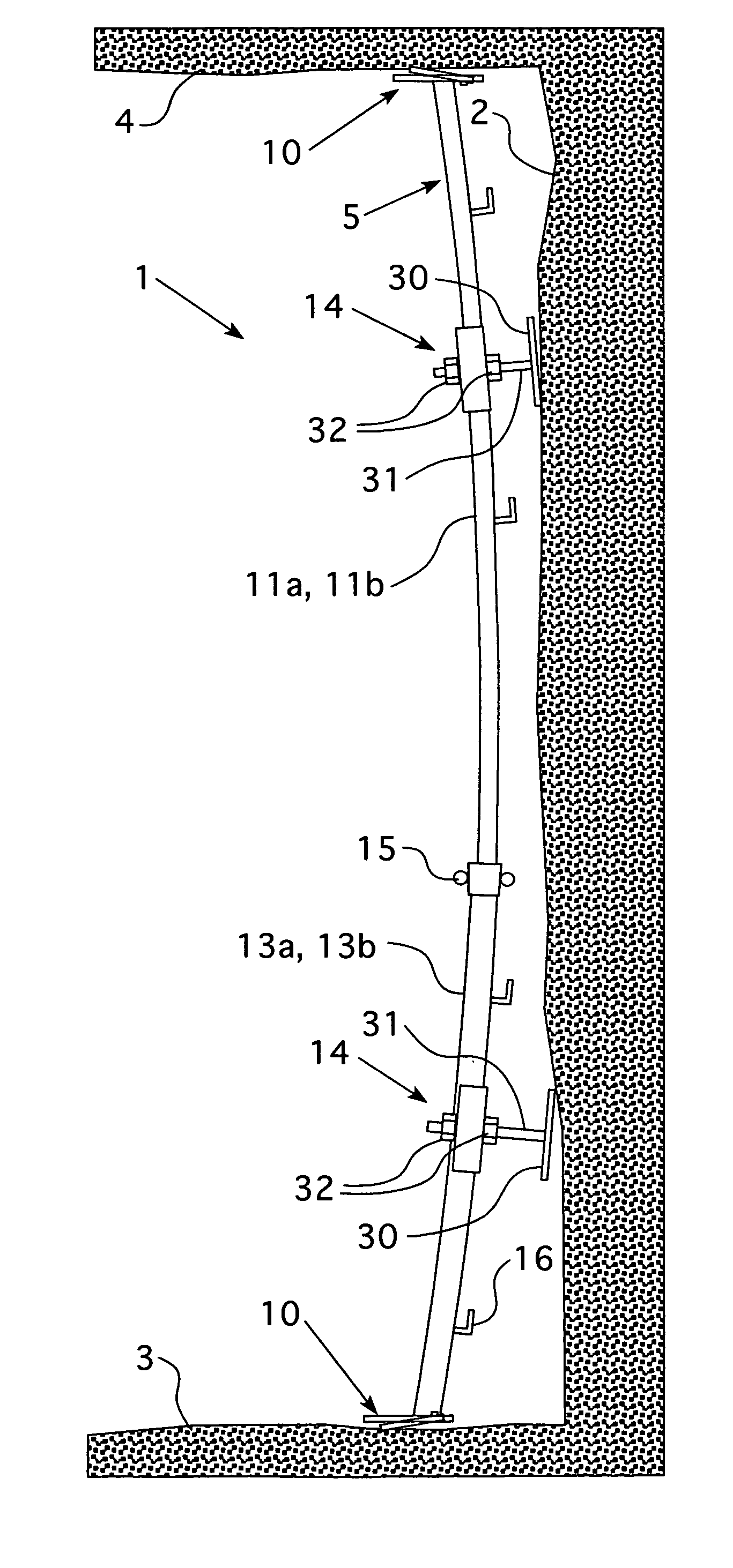

A mine rib support for bracing a vertical mine rib disposed between a mine floor and a mine roof. The support includes an elongated upright and continuous telescopically expandable support having a preset curvature. The member is longitudinally expanded for engaging the mine floor and the mine roof under compression with the curvature facing towards the mine rib. A support plate is laterally extended from the support member into compression engagement with the mine rib, thereby prestressing the support for support of the mine rib.
First Claim
