Discharging control device for electric power conversion system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 29, 2013
Grant Date -
Sep 15, 2011
app pub date -
Mar 9, 2011
filing date -
Mar 11, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

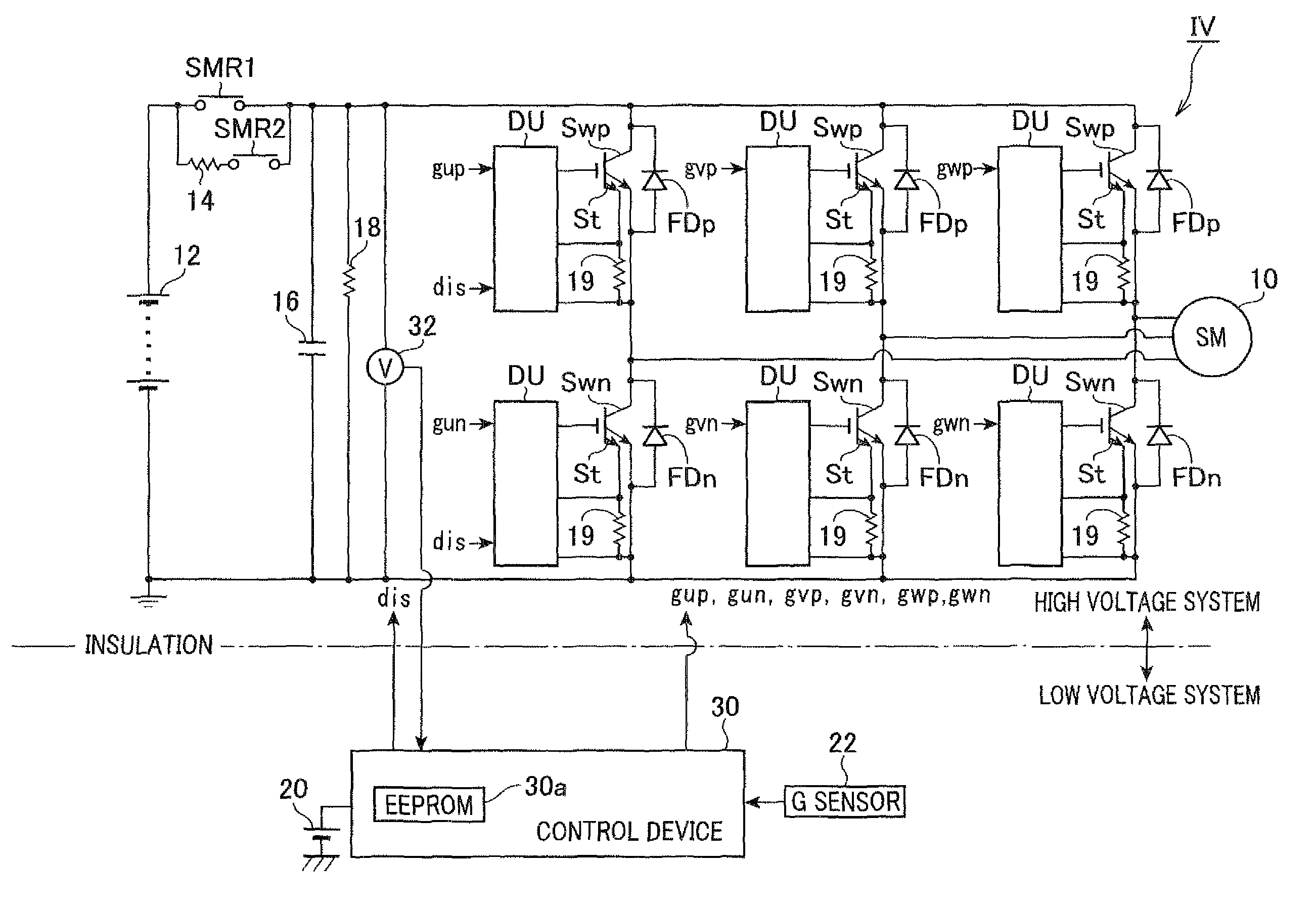

A discharge control device in an electric power conversion system mounted to a motor vehicle turns off a relay in order to instruct an electric power conversion circuit to supply a reactive current into a motor generator, and thereby to decrease a capacitor voltage to a diagnostic voltage. After this process, the discharge control device outputs an emergency discharging instruction signal dis in order to turn on both power switching elements at high voltage side and a low voltage side in the electric power conversion circuit. This makes a short circuit between the electrodes of the capacitor in order to discharge the capacitor, and executes a discharging control to detect whether or not an emergency discharging control is correctly executed and completed. The discharge control device detects whether or not the electric power stored in the capacitor is discharged on the basis of the voltage of a voltage sensor.
