Apparatus and method for treating, pressing and washing biomass
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 15, 2013
Grant Date -
May 13, 2010
app pub date -
Jul 15, 2009
filing date -
Nov 10, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

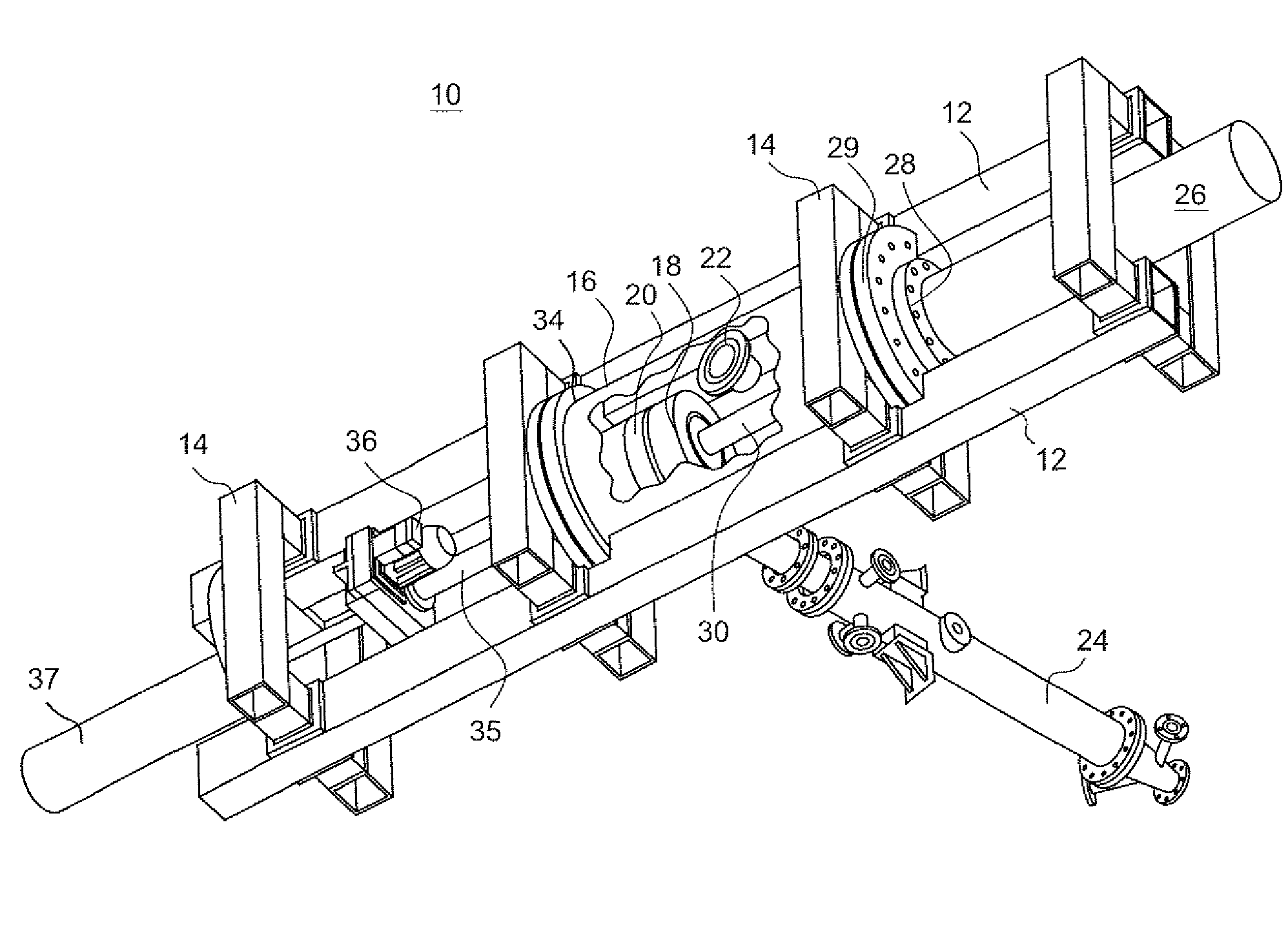

A biomass cooking device including: a treatment vessel having an biomass inlet adapted to receive biomass material to a processing chamber of the vessel, a biomass outlet adapted to discharge from the processing chamber the biomass material processed in the vessel, an extraction region of the vessel and a liquids outlet to the extraction region to discharge dissolved hemi-cellulosic material extracted from the biomass material in the processing chamber; a piston press in the cooking vessel defining a moveable wall of the processing chamber, wherein the piston press moves to reduce the processing chamber and thereby compress the biomass material; and a screen plate in the vessel forming a barrier between the processing chamber and an extraction region of the vessel, the screen plate having apertures to pass the dissolved hemi-cellulosic material through the screen plate from the processing chamber to the extraction region.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B01J Class
- 0 % this patent is cited more than
- 12 Age
