Intrinsically safe DSL circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 8, 2013
Grant Date -
Dec 2, 2010
app pub date -
May 9, 2008
filing date -
May 11, 2007
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

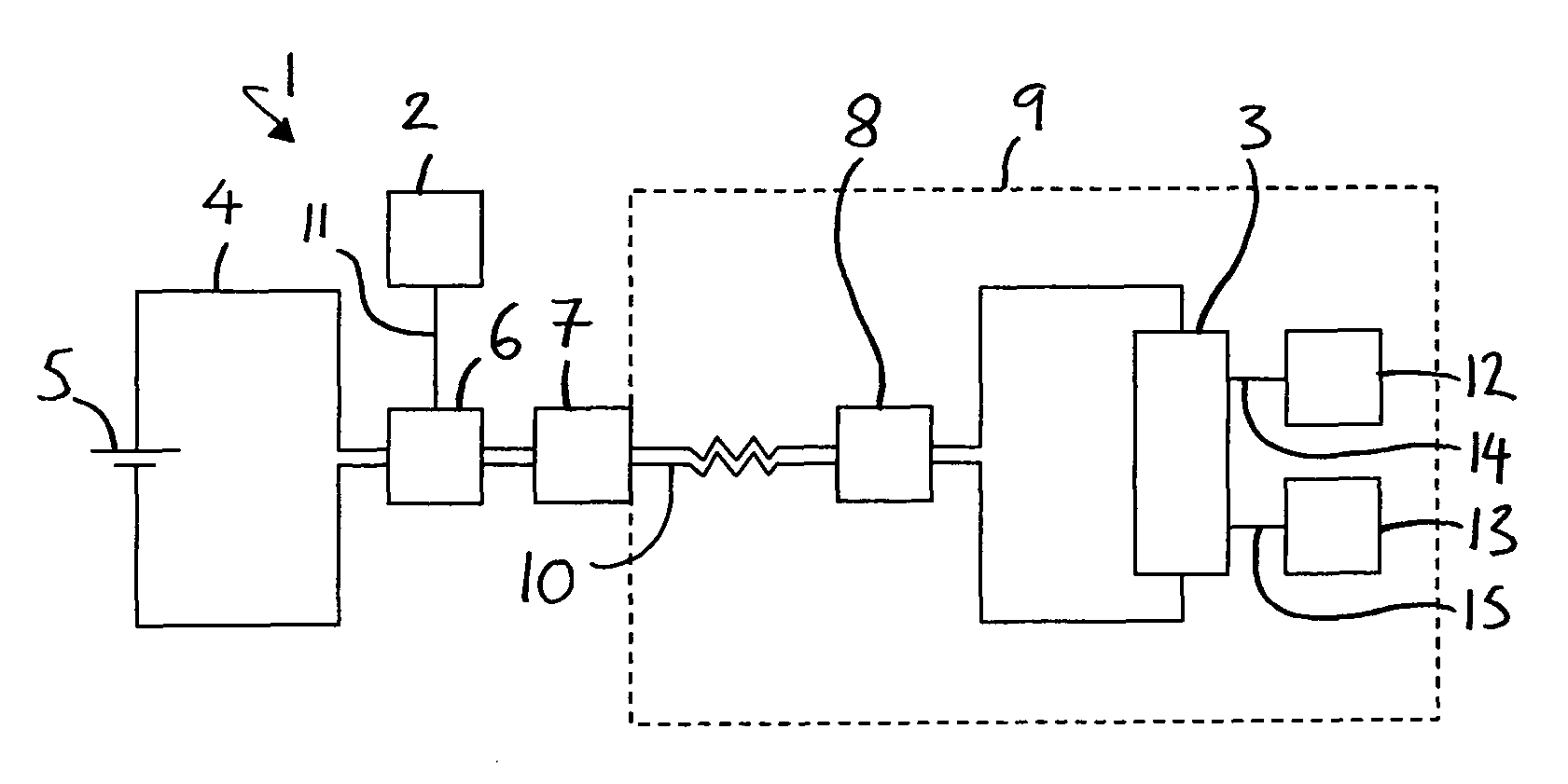

An electrical installation comprising control and/or monitoring means connected to a field device by means of an electrical communications circuit, in which the communications circuit comprises a power supply, a communications device, the field device as a load thereof, and Intrinsic Safety means, in which the communications device is adapted to send and receive signals over the communications circuit to and from the field device, in which the field device is adapted to send and receive signals over the communications circuit to and from the communications device, in which the Intrinsic Safety means renders all or part of the communications circuit Intrinsically Safe, in which the field device is located in an Intrinsically Safe part of the communications circuit, characterized in which the communications circuit is adapted to carry DSL signals, and in which the communications device and the field device communicate with one another according to the DSL protocol.
First Claim
Other Claims data not available
