Hitch device for a working vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 8, 2013
Grant Date -
Apr 2, 2009
app pub date -
Sep 22, 2008
filing date -
Sep 28, 2007
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

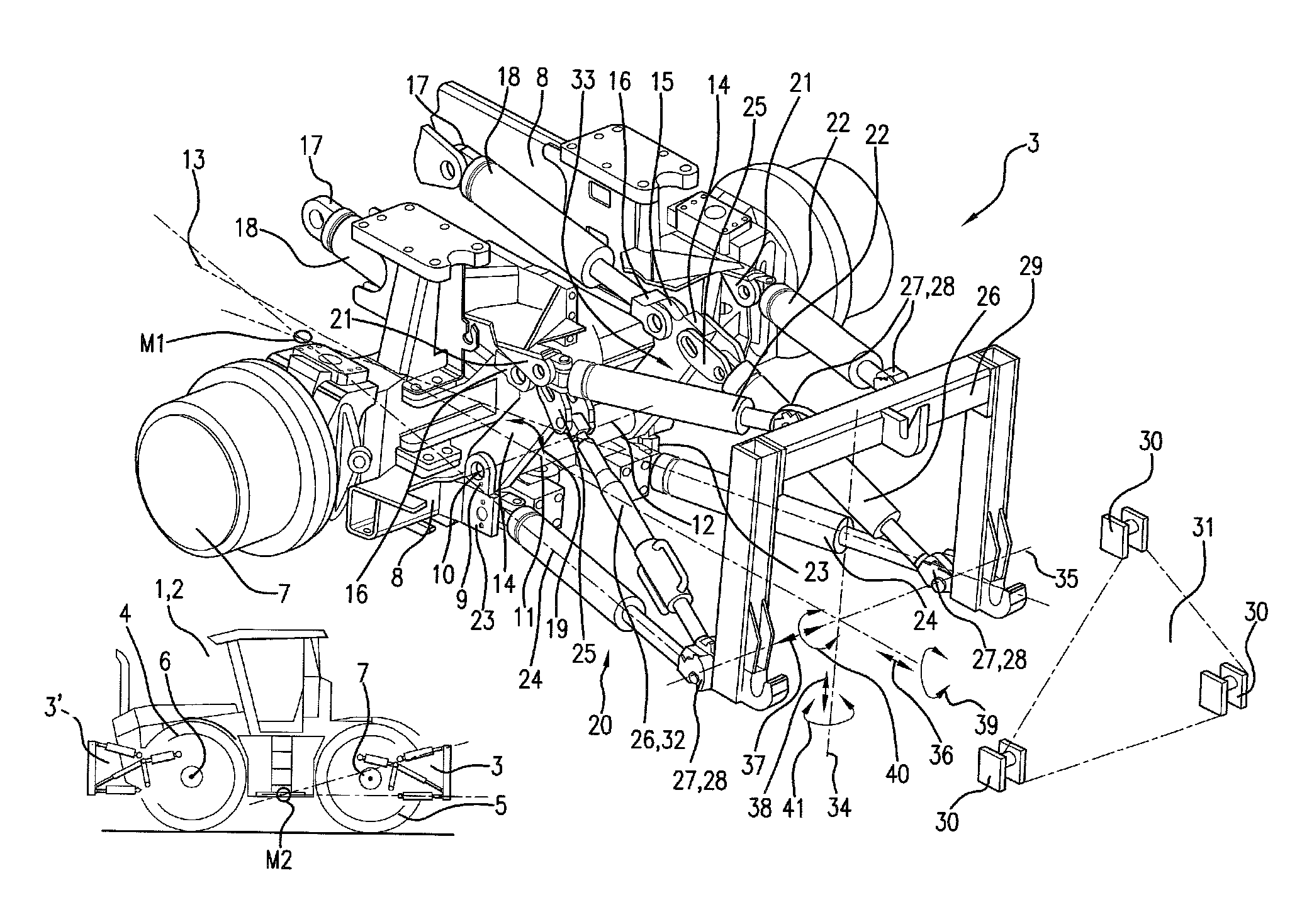

A hitch device for a working vehicle for coupling a working device to the working vehicle has a lifting shaft unit supported in the frame structure of the working vehicle, and a coupling structure that is operatively connected therewith. The lifting shaft unit includes a lifting shaft, at least one lifting arm that is fixedly connected with the lifting shaft, and at least one reciprocating cylinder, which is hingedly connected with the lifting arm. The coupling structure includes first, upper coupling elements, which are located on the frame structure, second, lower coupling elements, which are hingedly connected to the frame structure, and connecting elements that are hingedly located on lifting arms of the lifting shaft. At least one of the connecting elements is rigid. In this manner, it is ensured that the load on the coupling elements that form the hitch device is balanced, even when a load is introduced asymmetrically.
First Claim
Other Claims data not available
