US Patent No: 8347868

Collapsible locking slingshot

---

Abstract

---

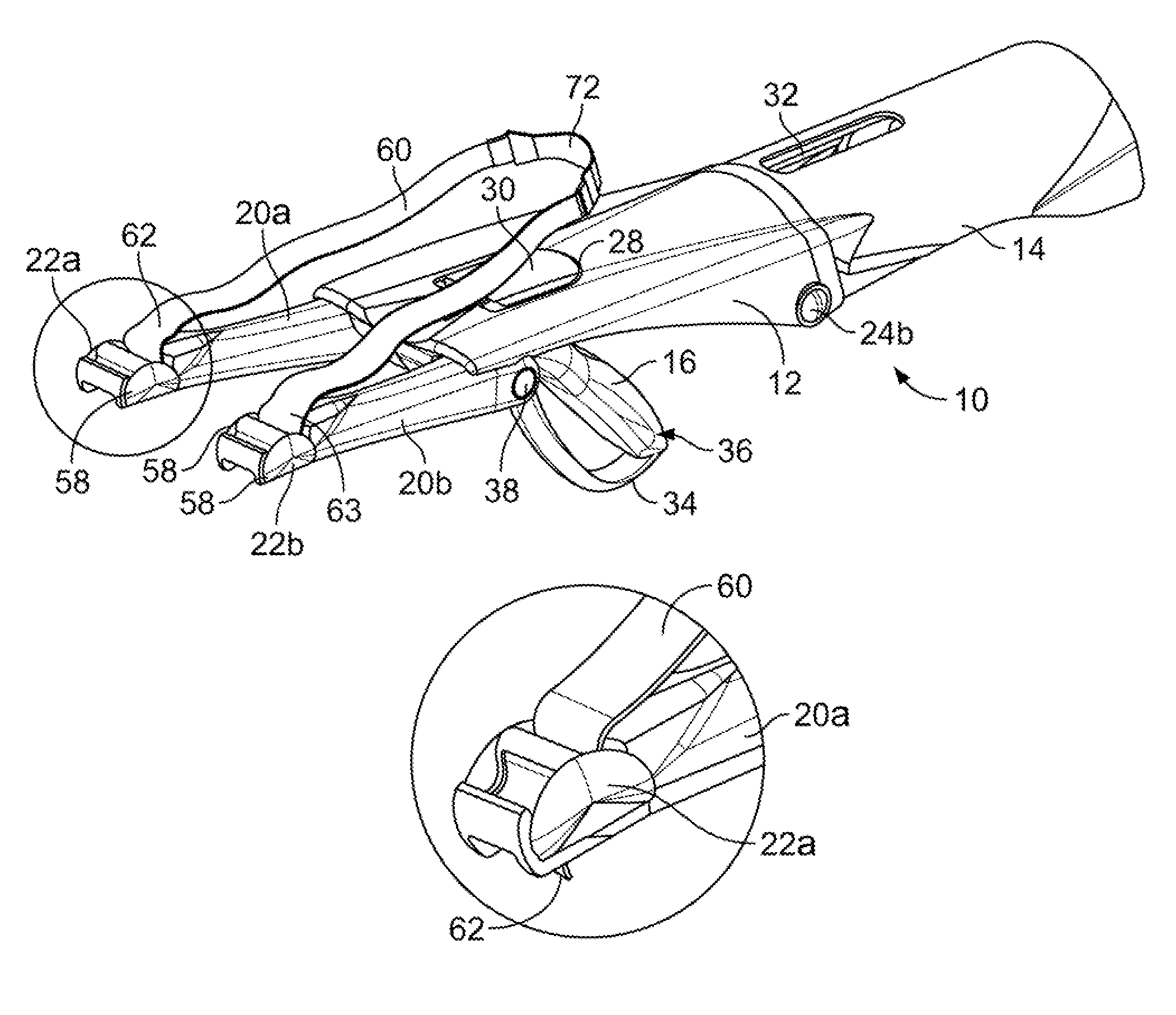

The present invention provides for a collapsible locking slingshot having a quick-release interchangeable band replacement safety system. The present invention also includes a self-centering, open-pocket slingshot pouch and a unique dual-tapered band. The slingshot collapses into a lockable case, improving the slingshot's safety, and enhancing the protection and longevity of the slingshot's components. The slingshot incorporates a unique shoot-over design in which the arms generally are parallel to the shooter's arm during operation.

---



---
