Handheld synthetic antenna array
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 25, 2012
Grant Date -
Mar 24, 2011
app pub date -
Sep 18, 2009
filing date -
Sep 18, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

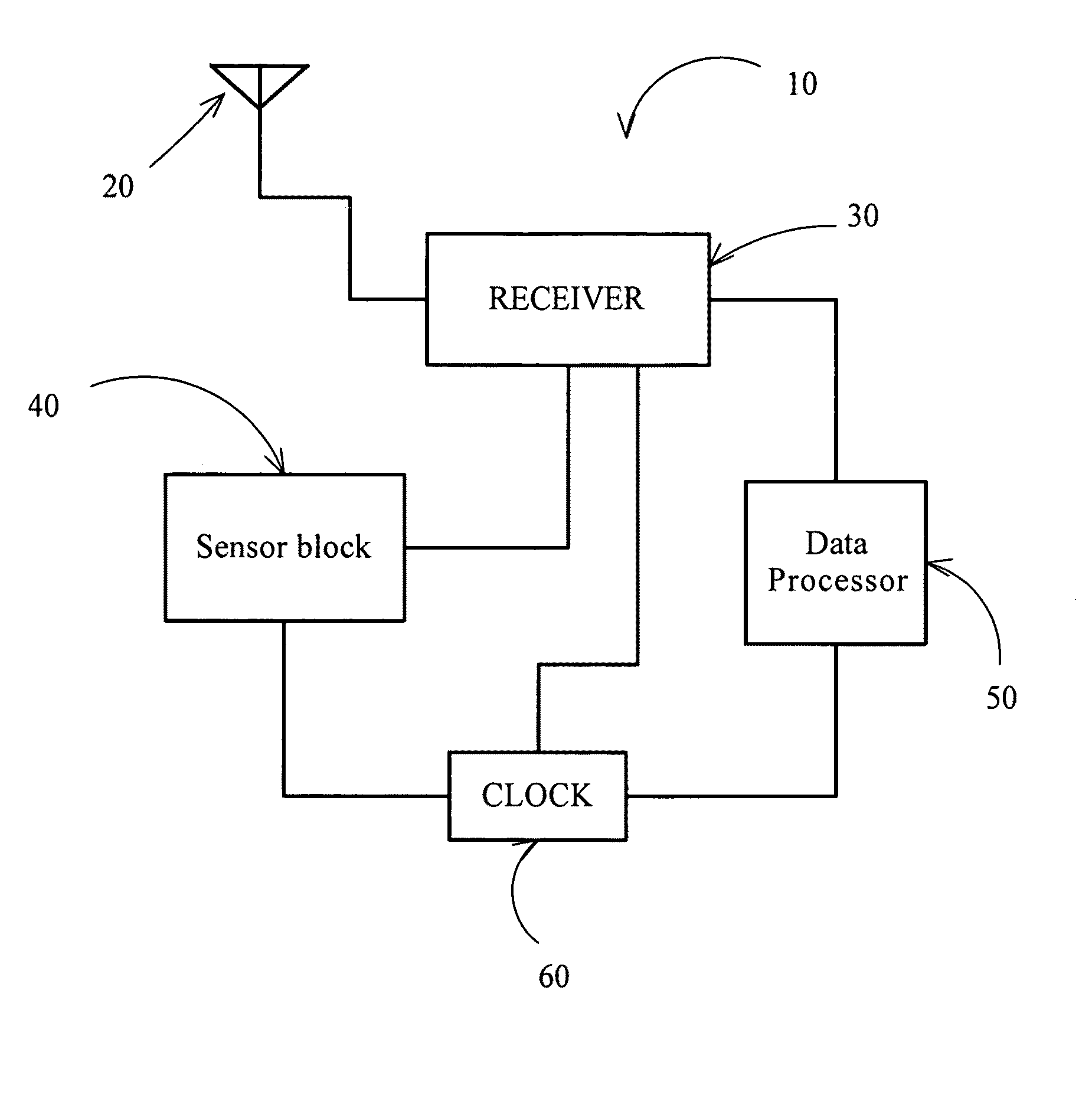

A system for estimating parameters of an incoming signal is provided. At least one antenna is coupled to at least one suitable receiver. The antenna(s) are spatially translated in an arbitrary trajectory. As the antenna(s) is being spatially translated, a data processing means samples the incoming signal at set intervals based on a clock signal provided by a system clock. By sampling the incoming signal at different times at different spatial locations on the arbitrary trajectory, the system acts as a synthetic antenna array. The different samplings of the incoming signal at different times and positions provide signal diversity gain as well as different readings which can be used to estimate and/or calculate various parameters of the incoming signal. The different samplings can be used to detect the incoming signal, estimate its angle of arrival, estimate its time of arrival, as well as other parameters.
First Claim
Other Claims data not available
