Gear motor including a compact multiple-phase electric motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 25, 2012
Grant Date -
Feb 10, 2011
app pub date -
Jul 11, 2008
filing date -
Jul 24, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

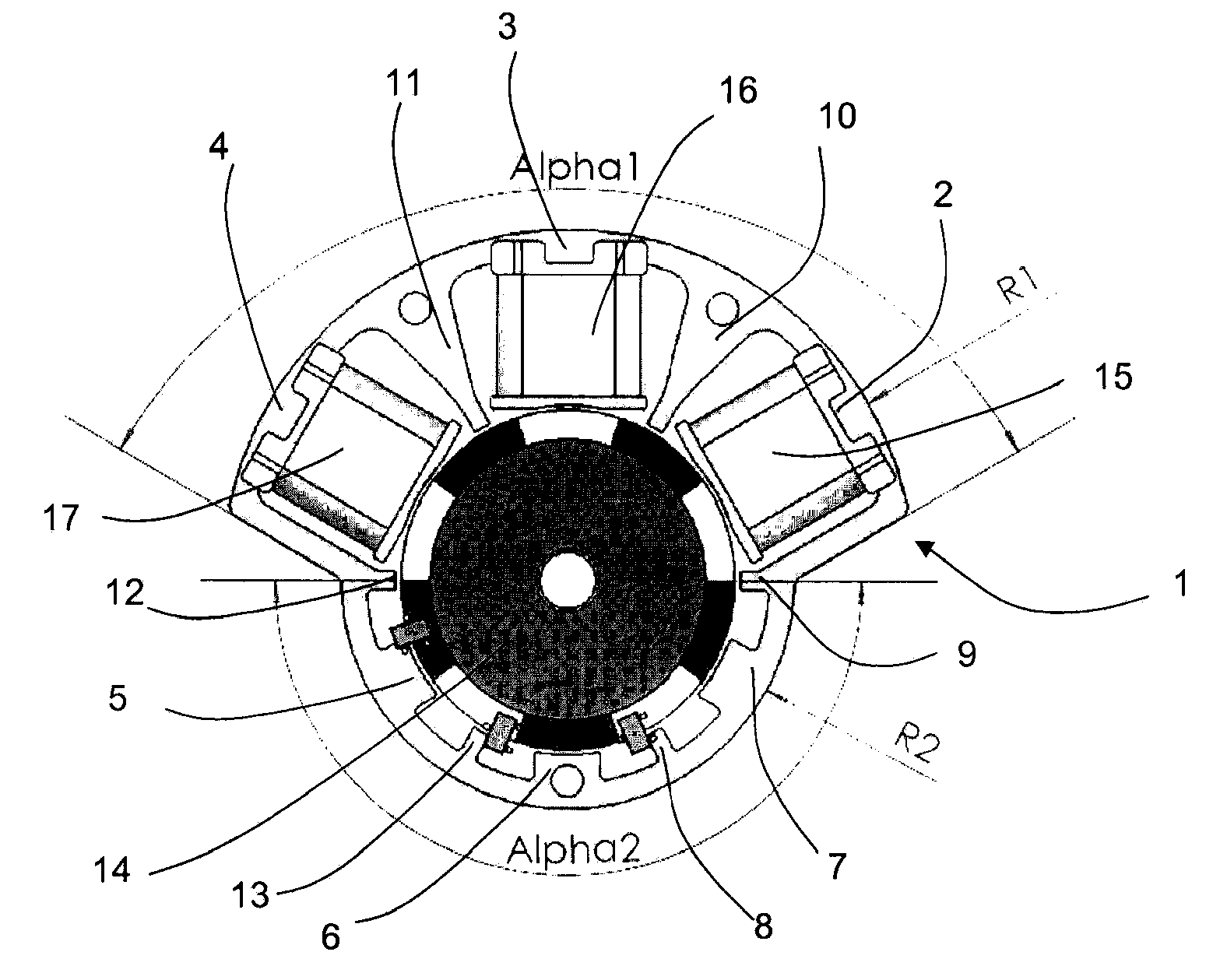

The invention relates to a gear motor including a multiple-phase electric motor formed by a stator portion excited by electric coils and by a rotor having N pairs of poles radially magnetised in alternating directions, the stator portion including two angular sectors alpha-1 and alpha-2 with respective radii R1 and R2, and wide teeth and narrow teeth radially extending from an annular crown, characterized in that the wide teeth have a width higher than or equal to twice the width of the narrow teeth, in that the notch width is higher than the width of a narrow tooth, in that the angular sector alpha-1 is lower than 220° and includes all the coils, and in that the ratio R1/R2 ranges from 1.2 to 2.
