Tilt latch with cantilevered angular extension
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 25, 2012
Grant Date -
Feb 18, 2010
app pub date -
Aug 15, 2008
filing date -
Aug 15, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

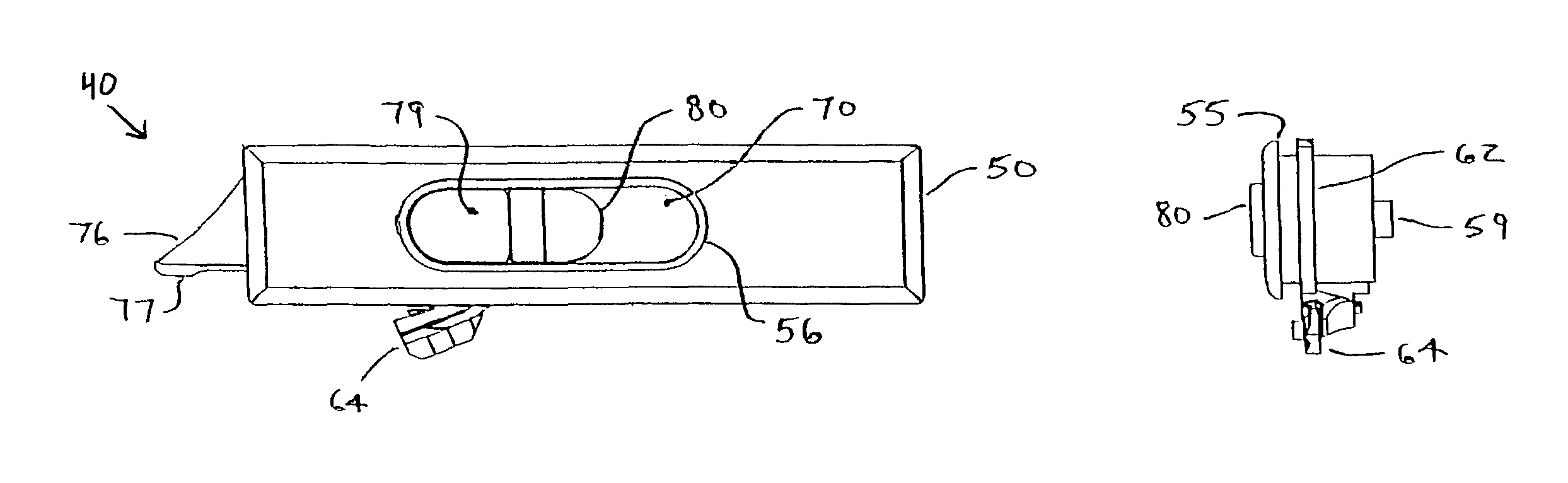

A latch is provided for use on a pivotable sash window of a single-hung or double-hung sash window assembly to releasably secure the window to the master frame. The latch comprises a latch-bolt slidably mounted within, and biased relative to a housing. The housing is adapted to be installed into the top rail of the sash window through an opening in the stile and top rail, which has a periphery contoured to match the housing end profile. The latch bolt, while maintaining an aesthetically appealing external appearance, is configured to incorporate a cantilevered member which only becomes visible when biased to an angled position where it maintains engagement of the latch housing with the edge of the top wall of the rail during window deformation resulting from high wind loading. The cantilevered member ensures integrity of the latch installation under high wind load conditions typically experienced during extreme weather phenomena.
First Claim
Other Claims data not available
