Rise up panoramic roof for a vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 18, 2012
Grant Date -
Feb 9, 2012
app pub date -
Aug 4, 2011
filing date -
Aug 6, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

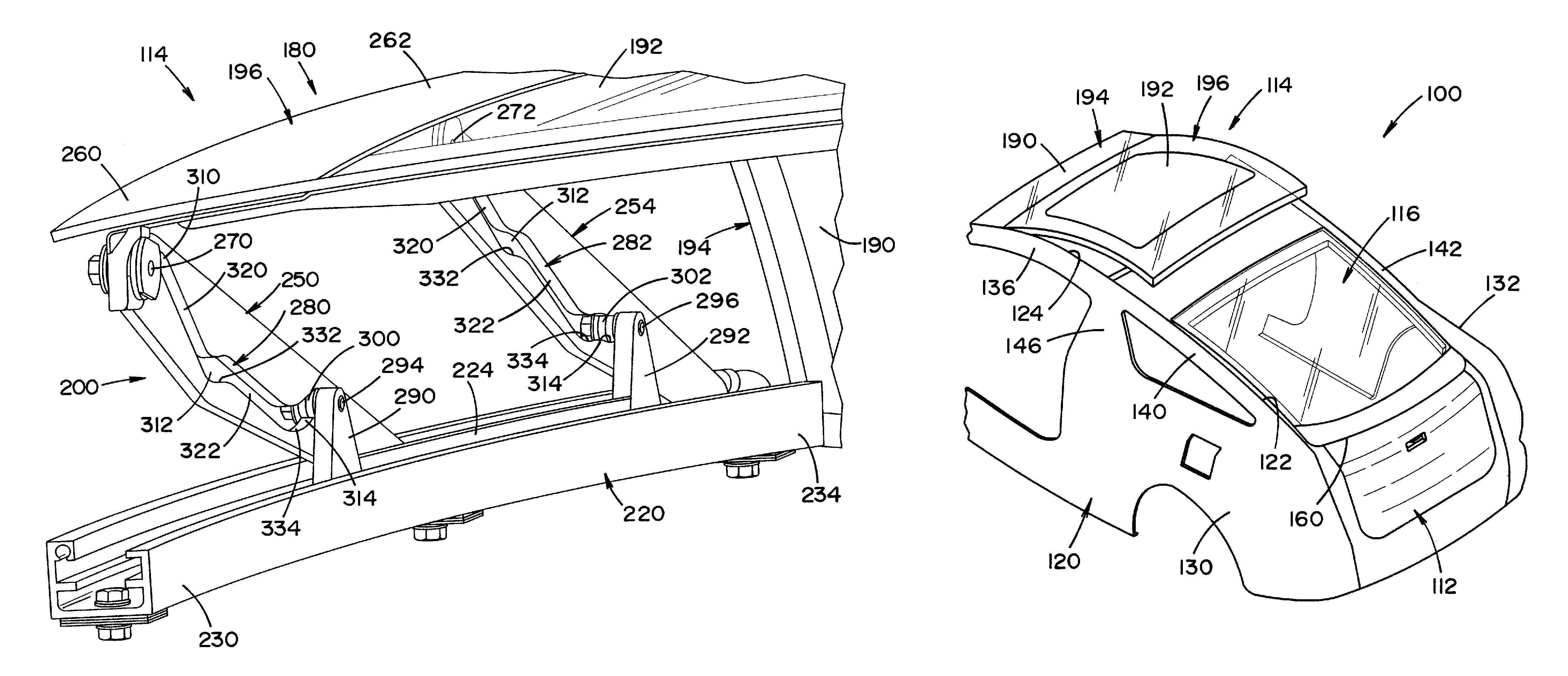

A rise-up panoramic roof provided on a roof opening of a body of a vehicle comprises a frame member and a lift assembly. The frame member has a forward portion and a rear portion. The forward portion is hingedly connected to the vehicle body such that the frame member does not slide relative to the body. The frame member is configured to hold a roof panel. The lift assembly is configured to move the frame member between a closed position where the rear portion of the frame member closes the opening of the vehicle body and a raised, open position where the frame member is raised from the vehicle body and the rear portion is located above the opening.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B60J Class
- 388 Applications Filed
- 282 Patents Issued To-Date
- 72.69 % Issued To-Date
