Comminuting tool and comminuting device with such a comminuting tool, as well as a method for determining the state of wear of such a comminuting tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 18, 2012
Grant Date -
Aug 19, 2010
app pub date -
Feb 12, 2010
filing date -
Feb 12, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

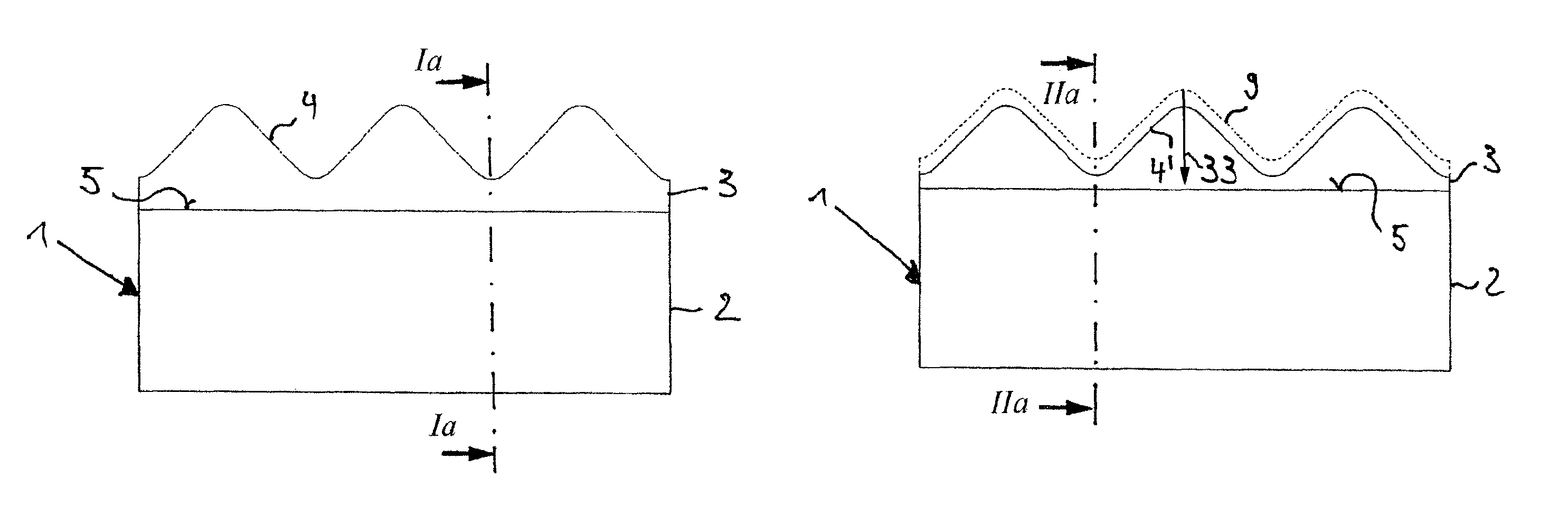

A device for the determination of the state of wear of comminuting tools a comminuting tool, a comminuting device with such a comminuting tool, and a corresponding method. A reference surface is provided on the comminuting tool, the surface from which the distance A0, A1 to the active edges of the comminuting tool can be determined. The degree of wear then results from a comparison of the original distance A0 in an unused comminuting tool with the distance A1 reduced due to wear after a certain period of use. The thereby achieved advantage is that the state of wear can be determined independent of the general wear of the comminuting device. A distortion of the measurement result caused by this is therefore ruled out.
First Claim
Other Claims data not available
