Waste disposal device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 18, 2012
Grant Date -
Dec 22, 2011
app pub date -
Jul 30, 2010
filing date -
Jul 31, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

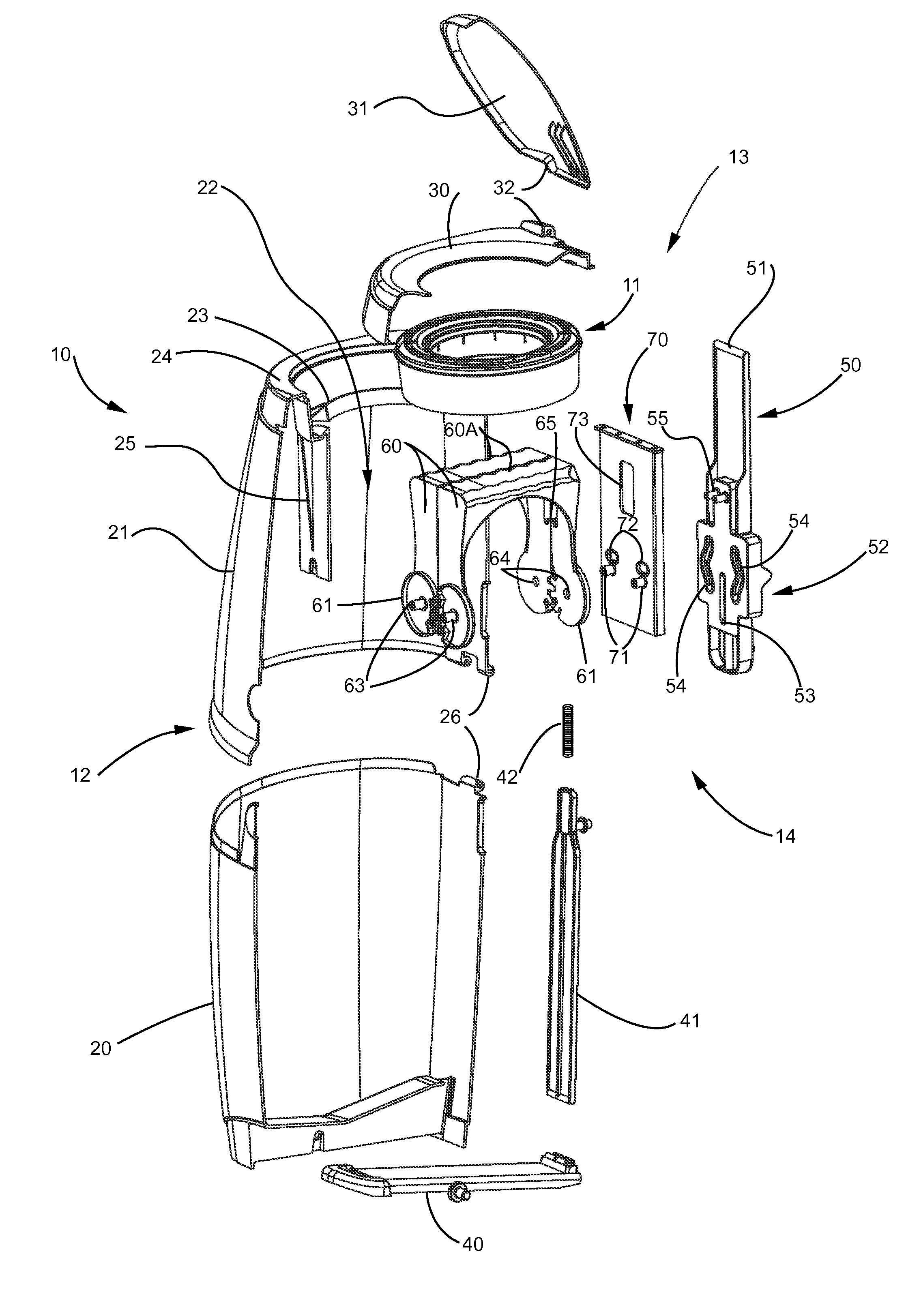

A waste disposal device comprises a container having a top opening. The container provides access to an inner cavity that receives a bag with opened and closed ends. A pivoting lid closes/opens access to the opening. An actuation mechanism has a user-actuated interface. A linkage connected to the interface opens/closes the lid. A pair of jaws is connected to the linkage. The jaws move between a clamped position, in which the jaws close off a portion of the bag, and an opened position, in which the jaws are separated to allow waste to reach the closed end. The jaws and the lid are actuated concurrently by a single degree of actuation on the interface, allowing the lid to open and close while the jaws move from the clamped to the opened position, and back to the clamped position. A method for disposal of a waste object is also provided.
First Claim
Other Claims data not available
Family
