Power control circuit of a variable-frequency opto-interrupter for a printer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 11, 2012
Grant Date -
May 19, 2011
app pub date -
Nov 16, 2009
filing date -
Nov 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

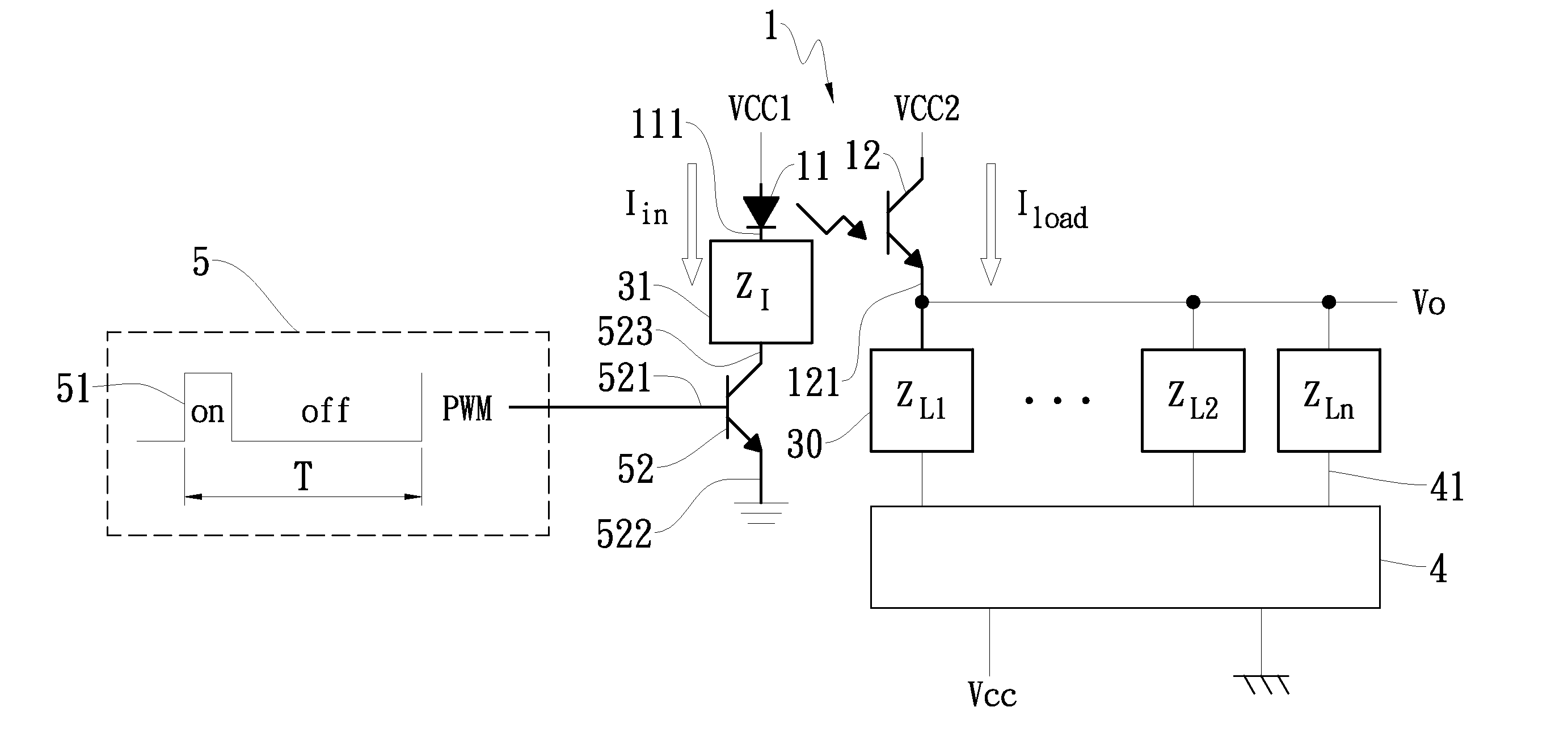

A power control circuit of a variable-frequency opto-interrupter for a printer has a plurality of impedances electrically connected with a receiving terminal of the opto-interrupter in parallel for multi-stage variable adjustment, an IR photodiode having stronger penetration and adopted to a transmitting terminal, and a variable frequency generator generating variable frequency signal and electrically connected with a negative pole pin of the IR photodiode through a switching transistor. Accordingly, the emitting intensity of the opto-interrupter is significantly enhanced so that various printing media are penetrated through by infrared beams and the emitting intensity is adjusted to adapt to acquire a broader dynamic range of the load of the receiving terminal.
