Combined power generation equipment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 11, 2012
Grant Date -
Dec 13, 2007
app pub date -
Oct 17, 2005
filing date -
Oct 19, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

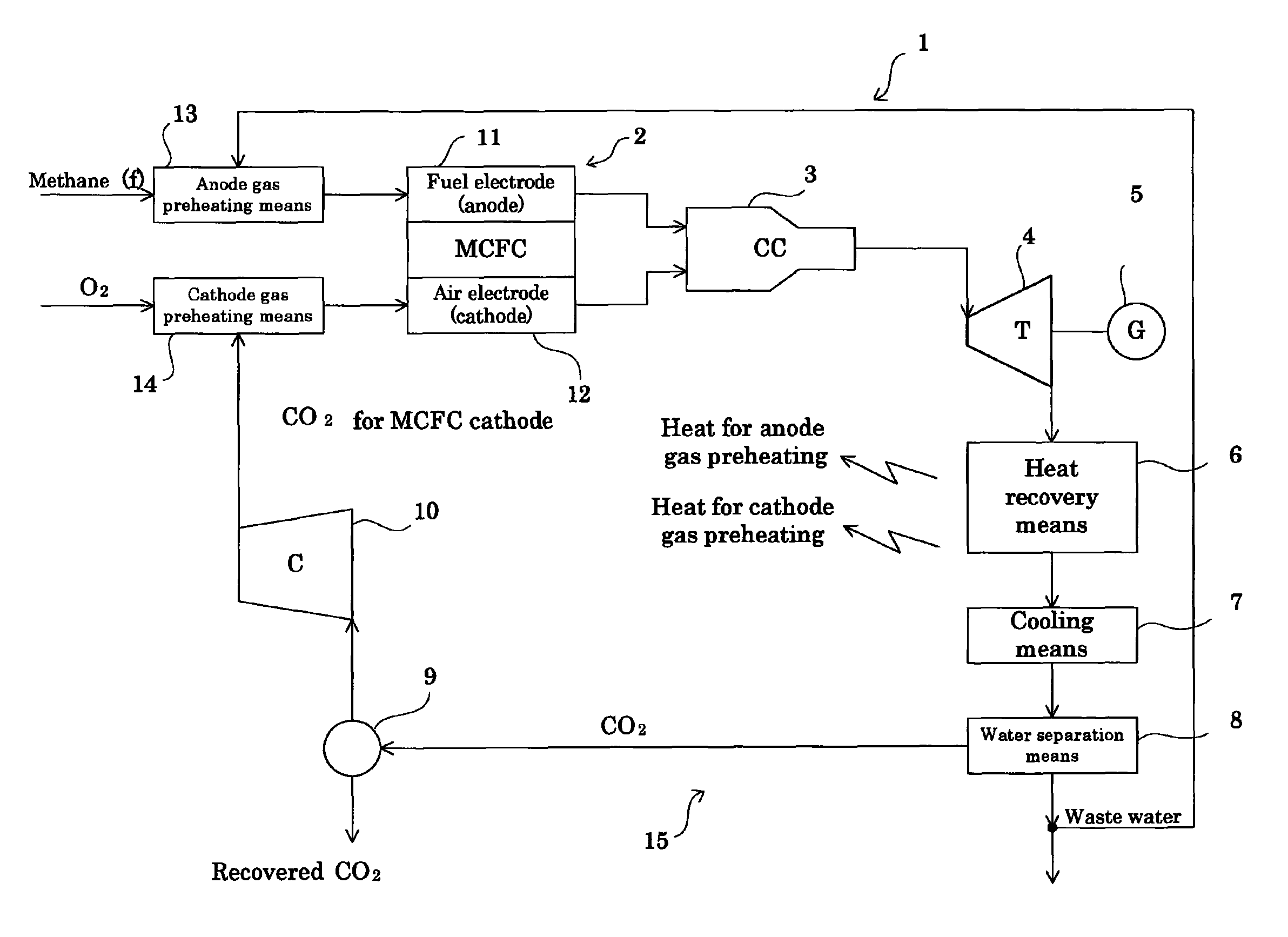

Combined power generation equipment combining a molten carbonate fuel cell (MCFC) and a gas turbine so as to construct a closed cycle system adapted to recover the total amount of carbon dioxide produced during power generation by feeding fuel and only O2 at an equivalent ratio, thereby obtaining CO2 as an oxidizing agent of a cathode gas, thus achieving high efficiency of a high order, the combined power generation equipment comprising a molten carbonate fuel cell (MCFC) 2 for performing power generation by the electrochemical reaction of an anode gas containing H2 and a cathode gas containing O2, a combustor 3 in which exhaust gas of the MCFC 2 is introduced and combusted, a gas turbine 4 for expanding a combustion gas from the combustor 3, and a circulatory line 15 for mixing CO2 of the exhaust of the gas turbine 4 into the cathode gas.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5143427 | Oct 17, 2005 |
| KR | B1 | KR100907690 | Oct 17, 2005 |
| WO | A1 | WO2006043494 | Oct 17, 2005 |
| EP | B1 | EP1804322 | Oct 17, 2005 |
International Classification(s)
- 2005 Application Filing Year
- H01M Class
- 1852 Applications Filed
- 1310 Patents Issued To-Date
- 70.74 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- H01M Class
- 3.29 % this patent is cited more than
- 13 Age
