Non-bolted bridge parapet barrier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 11, 2012
Grant Date -
Mar 31, 2011
app pub date -
Sep 28, 2010
filing date -
Sep 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

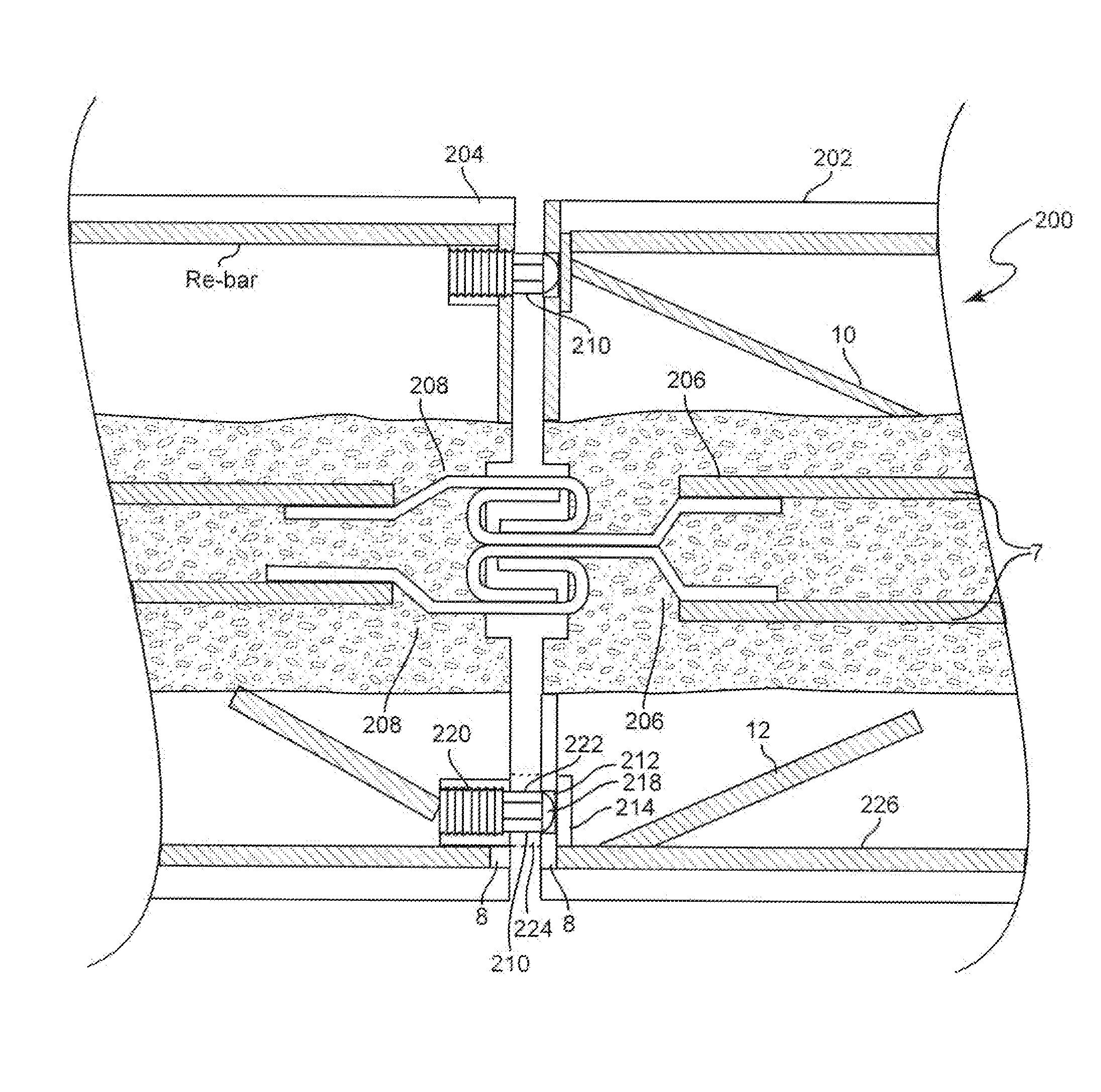

Increased resistance to displacement of a barrier or barrier sections thereof in response to a lateral force without anchoring or bolting barrier sections together is achieved by providing an attachment arrangement near the top of an end of barrier sections which is capable of carrying a tensile force and developing that tensile force using a tightening bolt/nut arrangement located at deflection stops at lower corners of the barrier sections to develop a compressive force. The barrier sections are thus rigidly attached together such that a lateral force applied to one or more barrier sections is partially transferred to additional attached barrier sections effectively increasing the mass against which the lateral force is applied. The tightening bolt/nut arrangements are retained by and are captive to the respective barrier sections when barrier sections are disassembled from each other.
First Claim
Other Claims data not available
