Clamping device for adjoining board materials
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 4, 2012
Grant Date -
Oct 13, 2011
app pub date -
Sep 15, 2010
filing date -
Apr 9, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

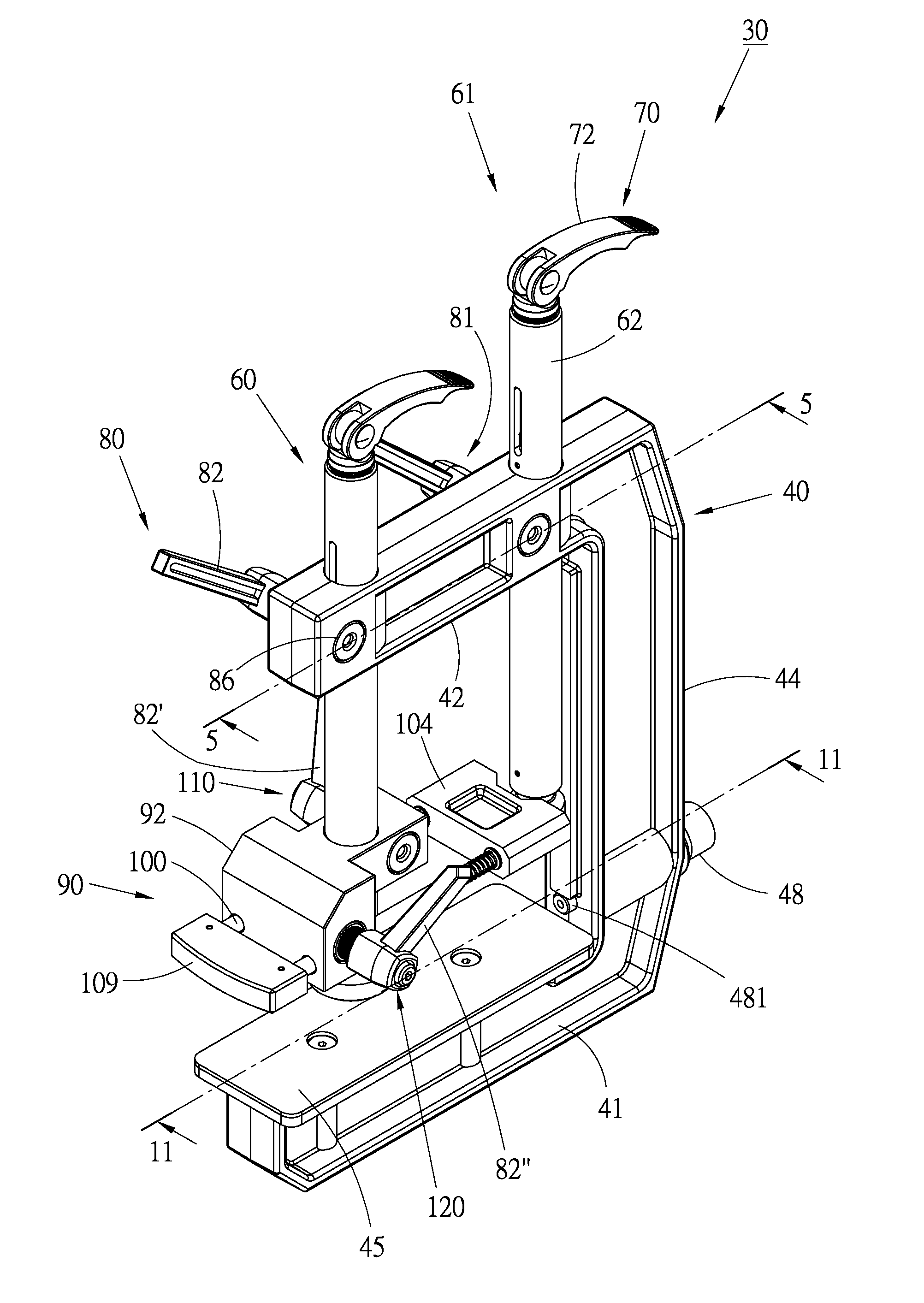

A clamping device for adjoining board materials includes: a C-shaped base having a base section, a top arm and an upright arm; a first press rod and a second press rod vertically movably fitted through the top arm; two first fastener assemblies for fastening and locating the press rods; a horizontal holder mechanism fitted on the first press rod and vertically movable along the first press rod; and a second fastener assembly for adjustably fastening the holder mechanism to the first press rod at a height. The holder mechanism includes at least one horizontally movable guide pin and an abutment member disposed at a front end of the guide pin. In use, a horizontal board material and an upright board material are placed in the base and fixedly held with the first and second press rods respectively. The abutment member serves to abut against and hold the upright board material.
