Optical device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 27, 2012
Grant Date -
Nov 4, 2010
app pub date -
Dec 19, 2008
filing date -
Dec 27, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

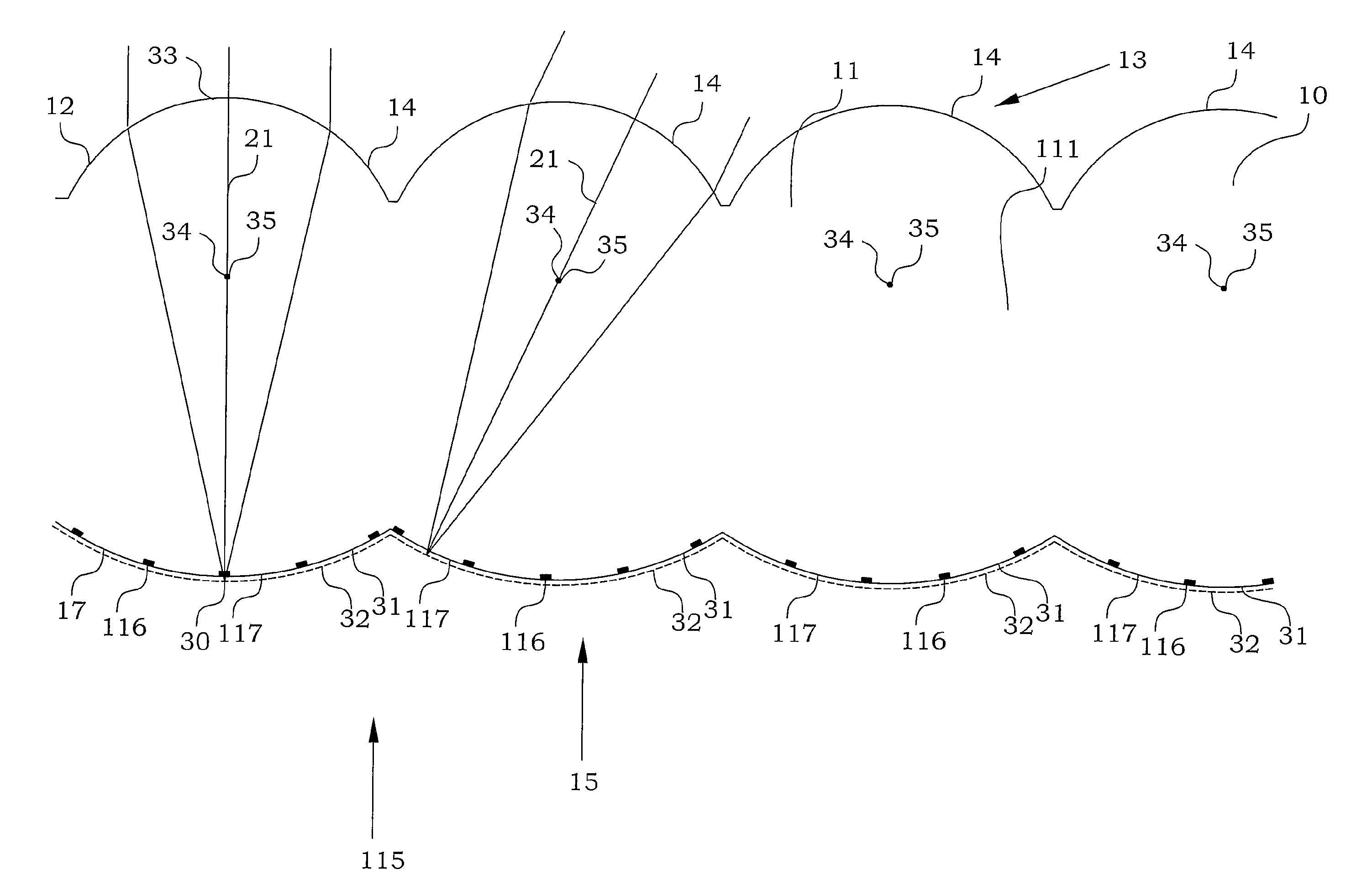

An optical device (10) for providing a synthetic integral image includes a polymer foil stack (111). The polymer foil stack (111) includes at least one polymer foil (11). A first interface (17) of the polymer foil stack (111) includes optically distinguishable image data bearer structures (116). The first interface (17) has a general shape defined by a first array (115) of curved interface portions (117), on which the image data bearer structures (116) are superimposed. Preferably, the optical device (10) includes a second interface (12) of the polymer foil stack (111), which has a second array (13) of microlenses (14). The second interface (12) is provided at a distance from the first interface (17), which distance is close to a focal length of the microlenses (14). The second array (13) is in registry with the first array (115).
