Dielectric barrier discharge lamp with a retaining disc
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 20, 2012
Grant Date -
Jan 6, 2011
app pub date -
Feb 21, 2008
filing date -
Feb 21, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

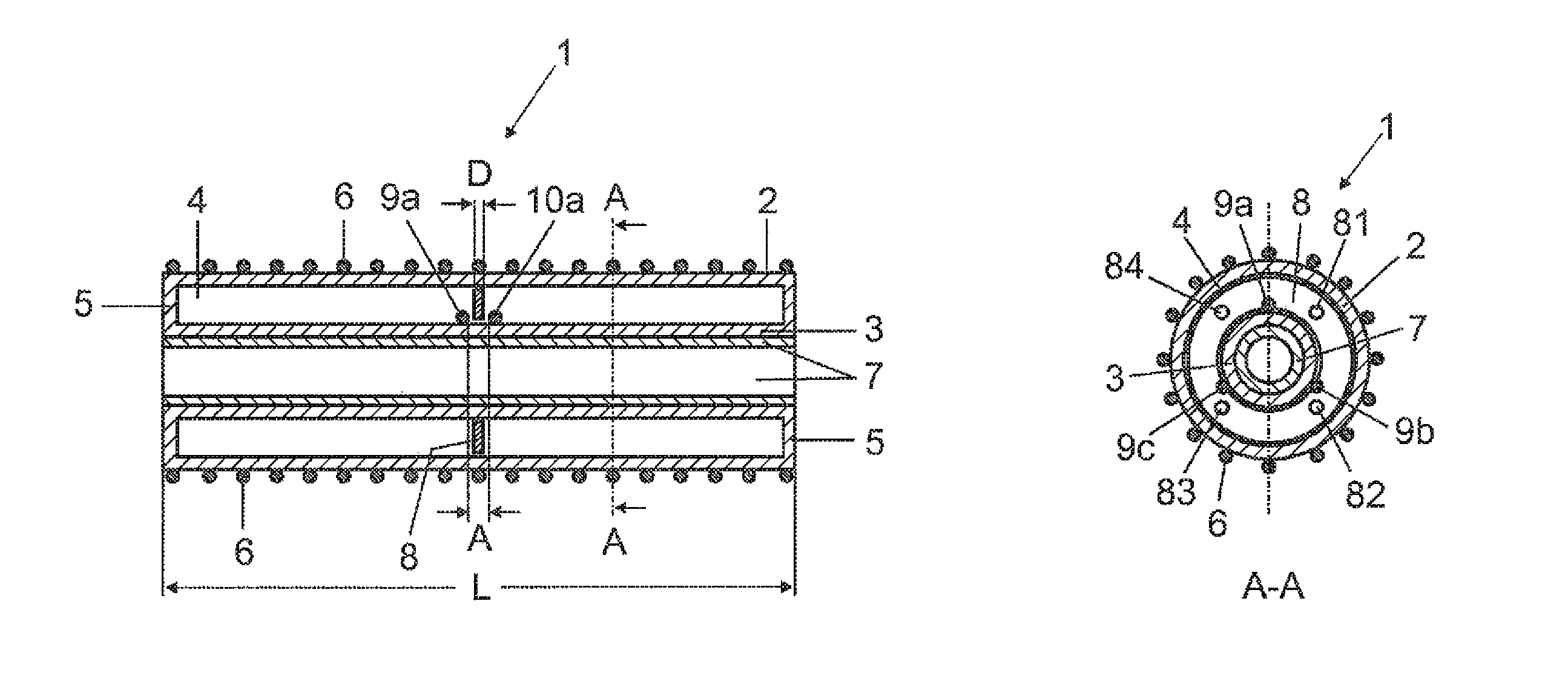

A dielectric barrier discharge lamp (1) with a discharge vessel, which has an outer tube (2), which surrounds a discharge space (4) filled with a discharge medium, an outer electrode (6), which is arranged on the outer side of the outer tube (2), an elongate inner electrode (7), which is arranged axially within the outer tube (2), at least one retaining disk (8) with an axial bore, through which the elongate inner electrode (7) runs, the retaining disk (8) extending substantially from the inner electrode (7) up to the inner side of the outer tube (2), as a result of which the inner electrode (7) is centered at least indirectly within the discharge vessel. The retaining disk (8) is supported on both sides loosely in the direction of the longitudinal axis by means of a supporting means (9a-9c) on the left-hand side and a supporting means (10a-10c) on the right-hand side.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01J Class
- 6.59 % this patent is cited more than
- 13 Age
