Treadmill with integrated walking rehabilitation device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 13, 2012
Grant Date -
Nov 11, 2010
app pub date -
Apr 9, 2010
filing date -
Apr 10, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

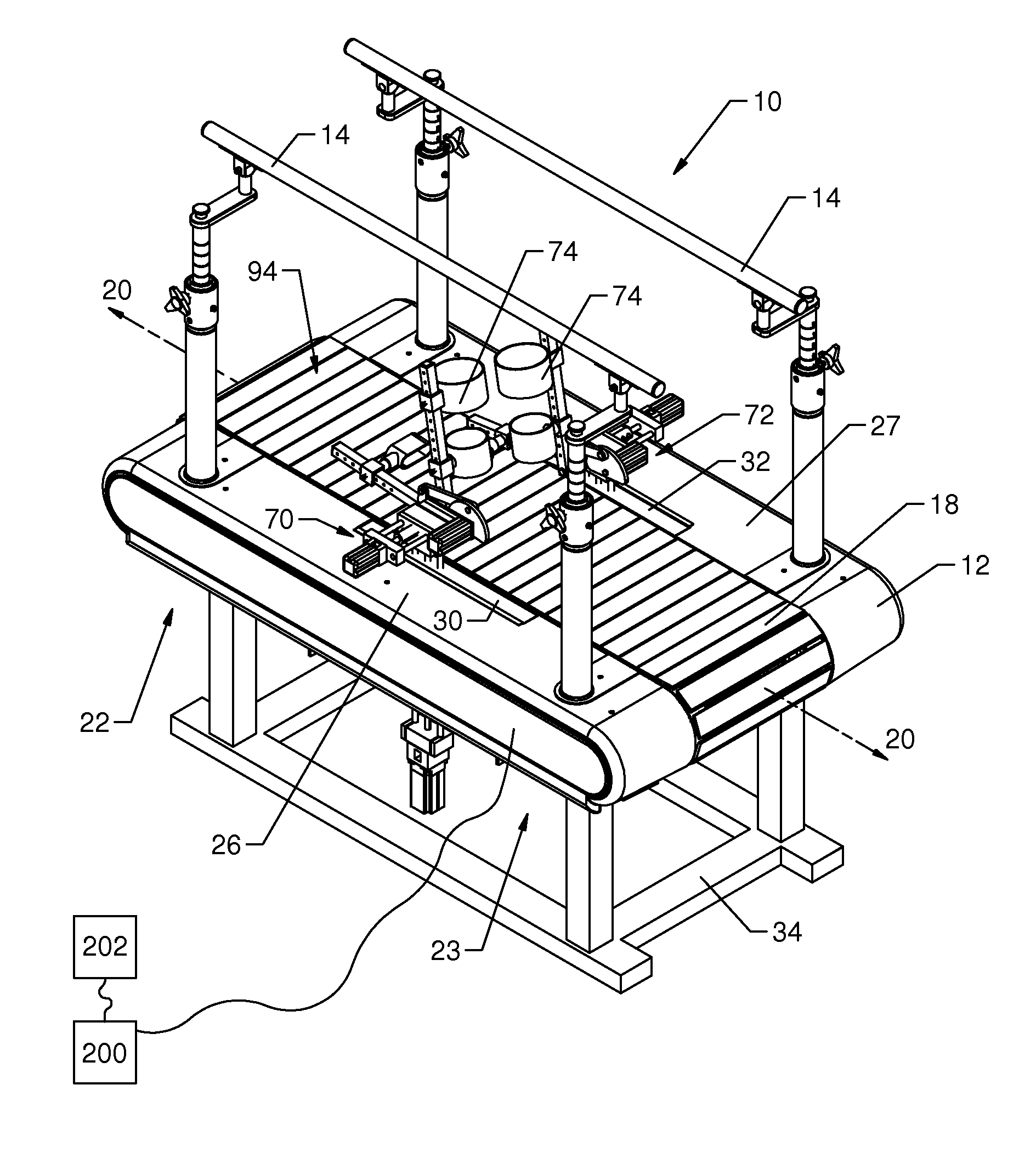

A treadmill for providing walking rehabilitation to a rehabilitee is provided including a base including a belt and a walking rehabilitation device interconnected with the base. The walking rehabilitation device includes a user engagement structure extending at least partially above the belt and being configured to be removably secured relative to one or more locations of a rehabilitee's lower extremities. The walking rehabilitation device further includes a plurality of drive systems coupled to the user engagement structure. The drive systems include at least a first drive system controlling the rehabilitee's motion in a first direction and a second drive system controlling the rehabilitee's motion in a second direction. The treadmill further includes one or more motors coupled to and driving the plurality of drive systems. The motion from the drive systems is transferred to the rehabilitee by the user engagement structure, allowing the rehabilitee to walk along the belt.
First Claim
Other Claims data not available
