Separation prevention device for pipe joint
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 13, 2012
Grant Date -
Jul 1, 2010
app pub date -
Apr 2, 2008
filing date -
Jun 12, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

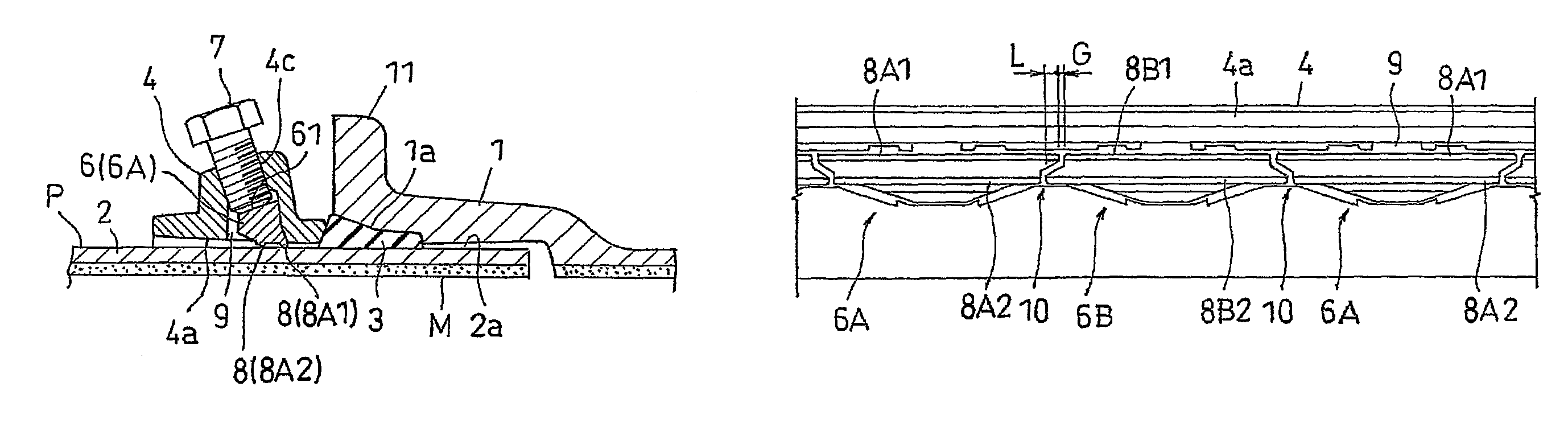

A separation prevention device for a pipe joint has disengagement prevention members and a press member. The disengagement prevention members are disposed at a plurality of locations in a circumferential direction of the pipe, on an inner peripheral surface of an engaging tool or of a receiving opening itself and which are formed with claws. The press member presses the disengagement prevention member radially inward of the pipe and which engages the claw with the outer peripheral surface of an inserting opening. The claw of the disengagement prevention member and the claw of the disengagement prevention member which is adjacent to the former disengagement prevention member in the circumferential direction of the pipe are arranged so as to overlap on each other in the axial direction of the pipe in a state where the claws are engaged with the outer peripheral surface of the inserting opening.
