Breakaway hinge receptacle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 13, 2012
Grant Date -
Feb 4, 2010
app pub date -
Jul 30, 2009
filing date -
Jul 31, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

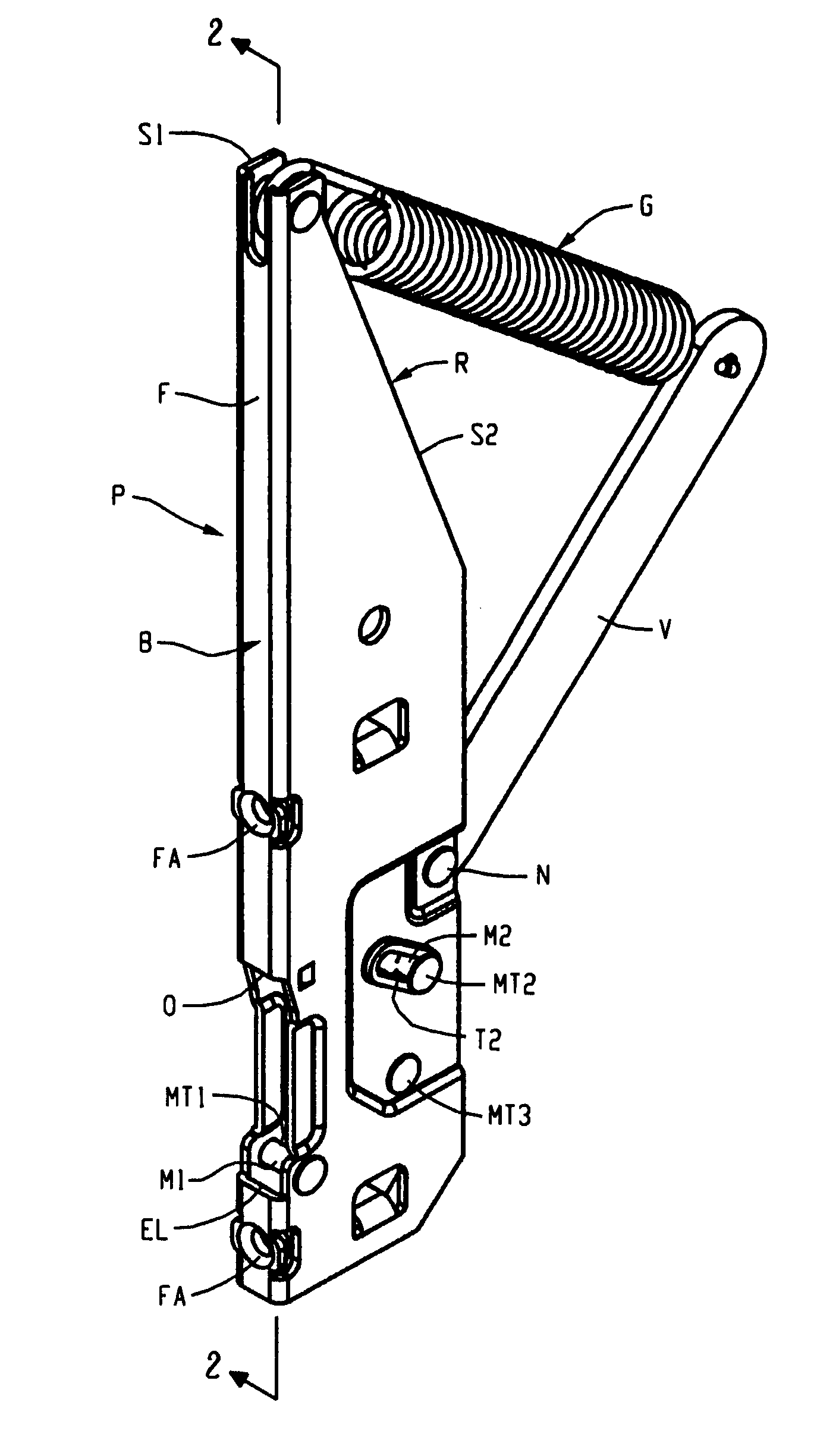

A breakaway hinge receptacle includes a base including first and second hinge arm mounting structures. The second hinge arm mounting structure is movable between an operative position and a breakaway position. A breakaway lever is connected to the base and includes inner and outer ends, wherein the inner end is operatively engaged with the second hinge arm mounting structure. A spring is operatively engaged between the breakaway lever and the base. The spring biases the breakaway lever to a first position in which the inner end of the breakaway lever biases the second mounting structure to its operative position. The second hinge arm mounting structure is selectively movable from its operative position to its breakaway position against the biasing force exerted by the inner end of said breakaway lever and the spring. Alternatively, the second hinge arm mounting structure is defined by or is connected to or is otherwise included on the inner end of the breakaway lever.
First Claim
Other Claims data not available
