Cleaning system and cleaning method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 6, 2012
Grant Date -
May 15, 2008
app pub date -
Jun 14, 2007
filing date -
Jun 16, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

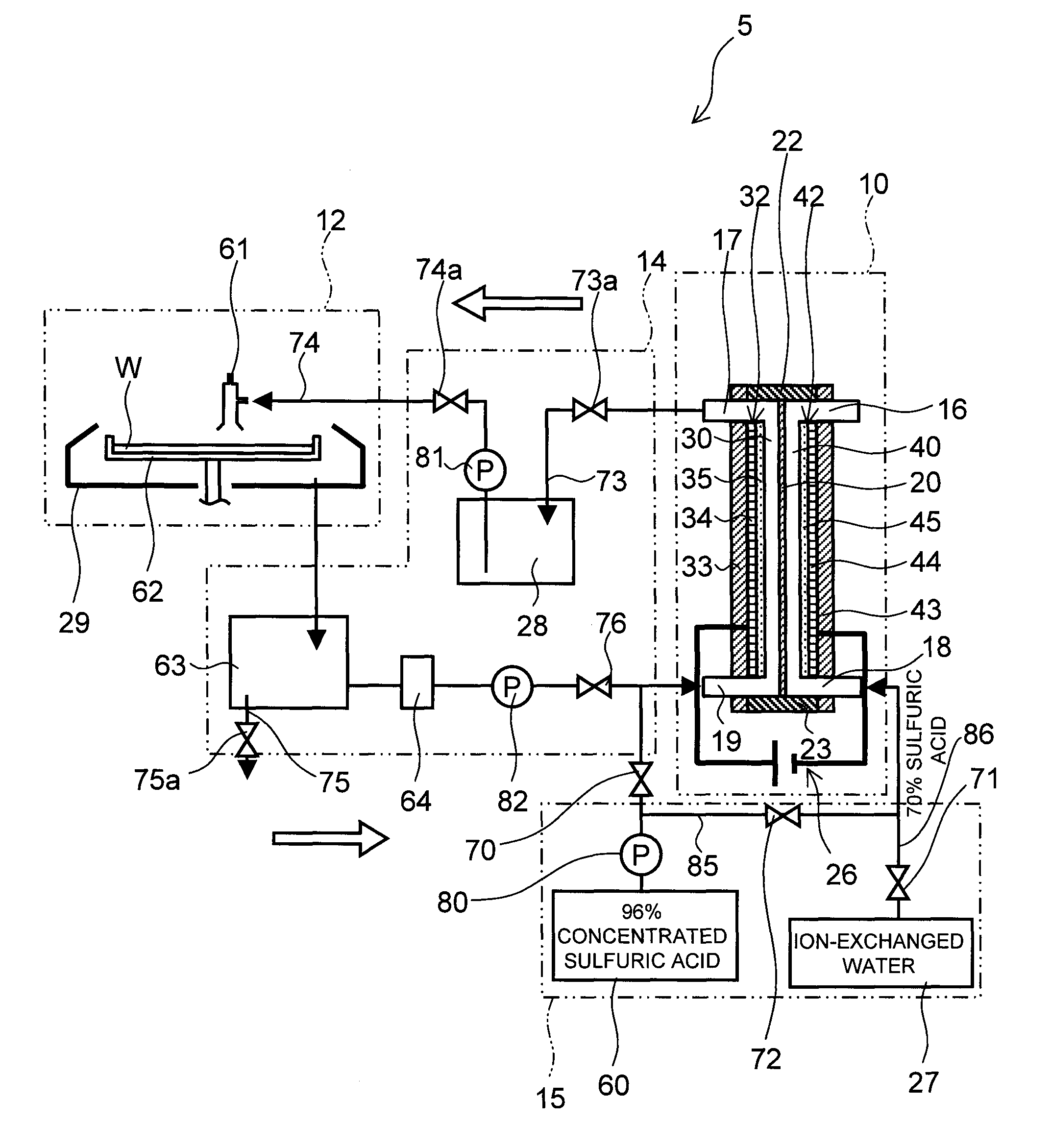

A cleaning system includes: a sulfuric acid electrolytic portion configured to electrolyze a sulfuric acid solution to generate an oxidizing substance in an anode chamber, a concentrated sulfuric acid supply portion configured to supply a concentrated sulfuric acid solution to the anode chamber, and a cleaning treatment portion configured to carry out cleaning treatment of an object to be cleaned using an oxidizing solution comprising the oxidizing substance. The sulfuric acid electrolytic portion has an anode, a cathode, a diaphragm which is provided between the anode and the cathode, the anode chamber which is demarcated between the anode and the diaphragm and a cathode chamber which is demarcated between the cathode and the diaphragm.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| TW | B | TWI351446 | Jun 14, 2007 |
| KR | B1 | KR100913449 | Jun 15, 2007 |
| JP | B2 | JP5087325 | Jun 18, 2007 |
International Classification(s)
- 2007 Application Filing Year
- C25B Class
- 240 Applications Filed
- 120 Patents Issued To-Date
- 50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C25B Class
- 0 % this patent is cited more than
- 13 Age
