Hinge assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 6, 2012
Grant Date -
May 26, 2011
app pub date -
Nov 20, 2009
filing date -
Nov 20, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

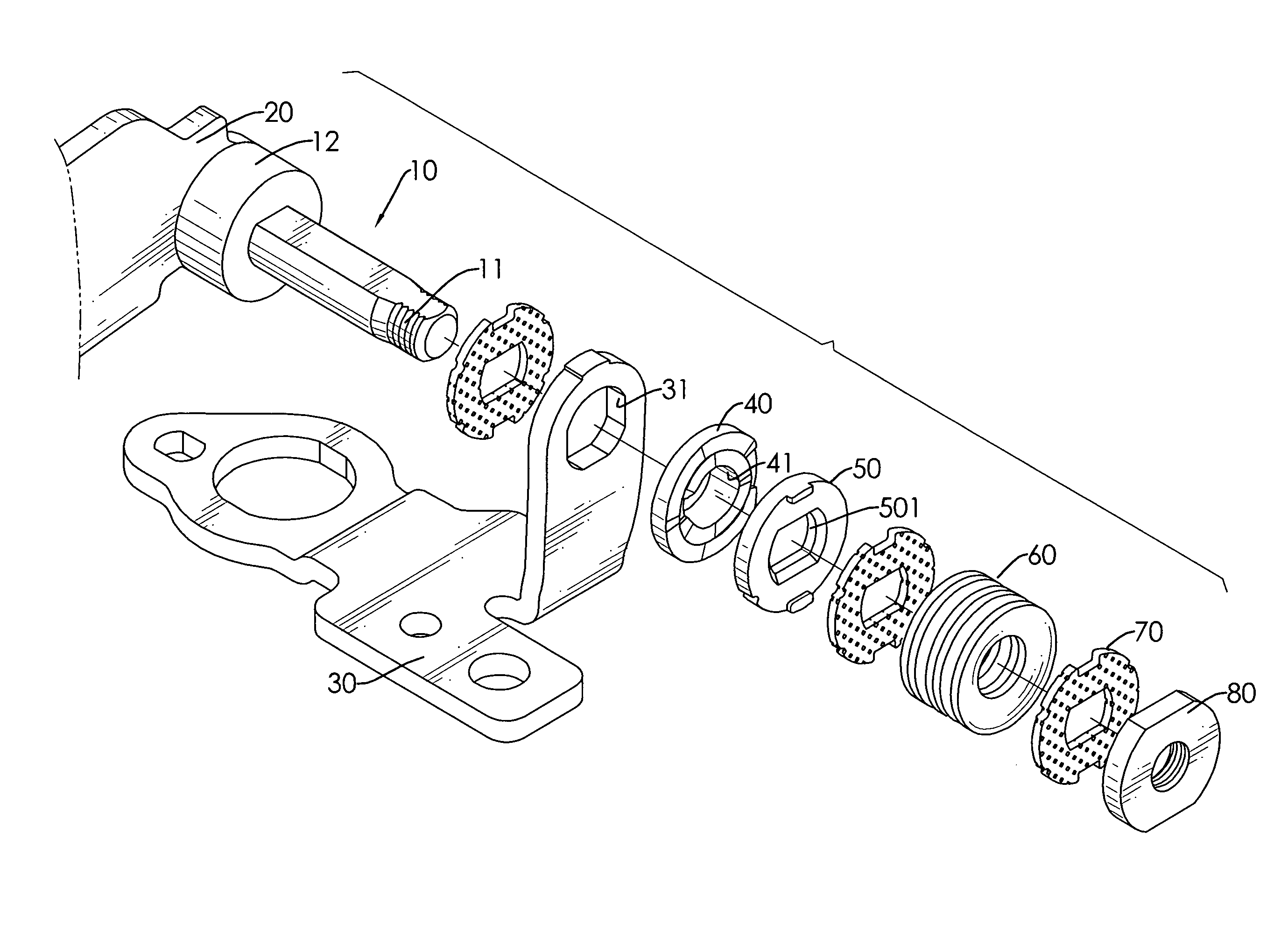

A hinge assembly has a pintle, a stationary leaf, a rotating leaf, a rotating pressing disk, a stationary pressing disk, a biasing assembly and a fastener. The rotating pressing disk is mounted rotatably around the pintle, is attached non-rotatably to the rotating leaf and has a track face, an inner track and an outer track. The stationary pressing disk is mounted securely around the pintle and has a protrusion face, an inner protrusion and an outer protrusion. The inner and outer protrusions respectively contact slidably with the inner and outer track on the rotating pressing disk. With the arrangement of the inner and outer tracks on the rotating pressing disk and the inner and outer protrusions on the stationary pressing disk, the resistance provided by the hinge assembly is variable.
First Claim
Other Claims data not available
