Semi-hollow pneumatic tyre and associated wheel rim, notably for agricultural machinery
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 30, 2012
Grant Date -
Jan 21, 2010
app pub date -
Jun 11, 2009
filing date -
Jul 18, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

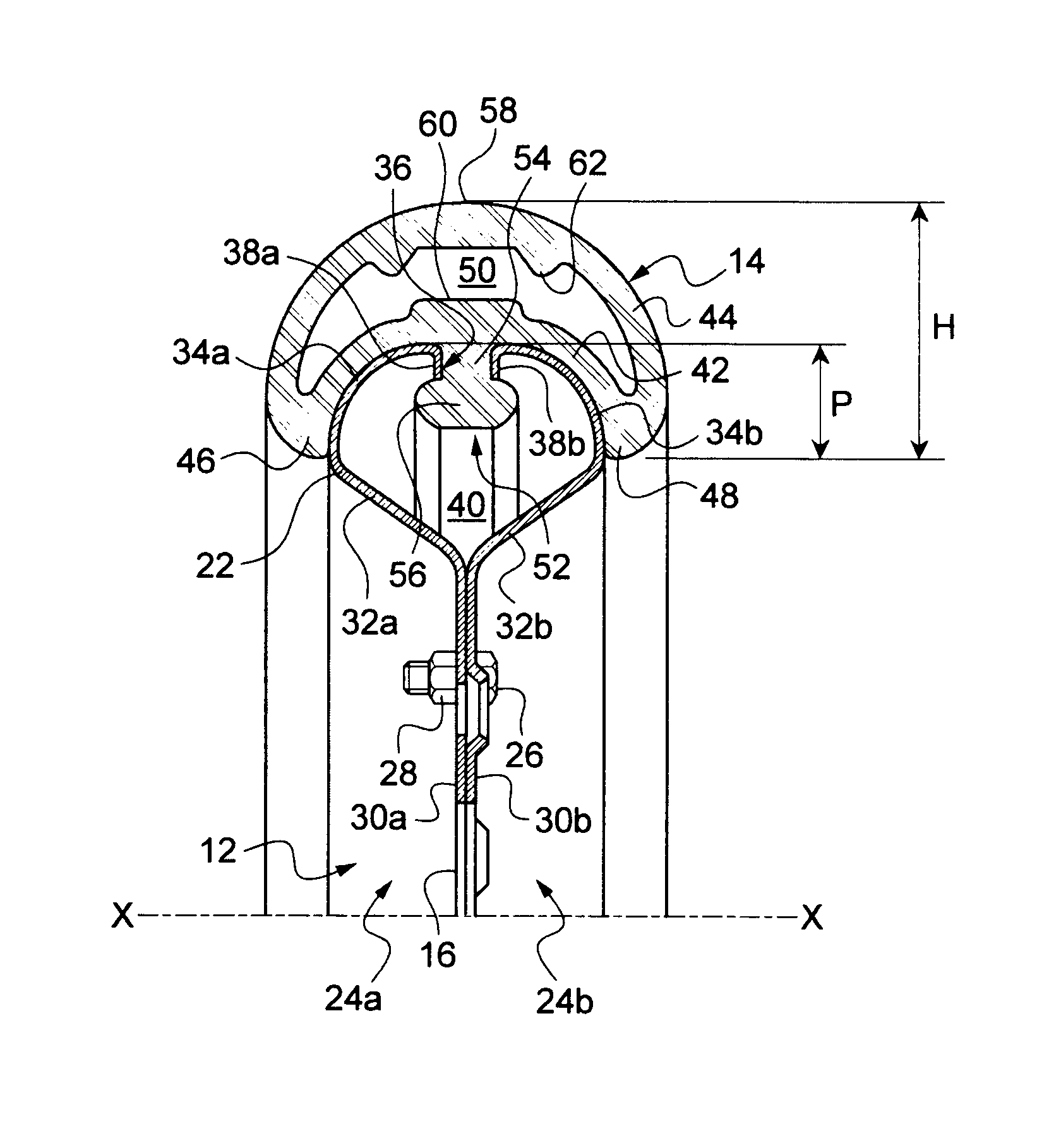

A pneumatic tyre of the semi-hollow type includes a casing having an uninflated inner volume and including an inner wall provided with a retaining bead and a convex outer wall forming the tread of the tyre, the inner wall and the outer wall of the tyre being connected by two annular borders. The inner wall of the tyre is concave so as to surmount a convex outer wall of the peripheral seat of a rim of a wheel, this outer wall being provided with a peripheral slot adapted to accommodate the retaining bead of the tyre.
First Claim
Other Claims data not available
